AIR SPRING 7410, 2B12-406

Name: AIR SPRING 7410, 2B12-406
Brand: FORTPRO
SKU: F245556
Availability: OutOfStock

Manufacturer: FORTPRO

SKU: F245556

Price:

Qty:

i h h

Products specifications

Basic Part Information
Product Line	Suspension
Category Name	Air Springs and Bags
Part Type	Double Convoluted Air Spring
Alternate Part Name	Double Convoluted Air Spring, Double Convolution Air Bag, Double Bellow Air Spring, Heavy Duty Suspension Air Bag, Trailer Suspension Air Spring, Rubber Bellows Air Suspension Bag
OEM Part Number	W01-358-7410
Application/Fitment Attributes
Application Type	Heavy Duty Trucks, Semi-Trucks
VMRS	016-008-000

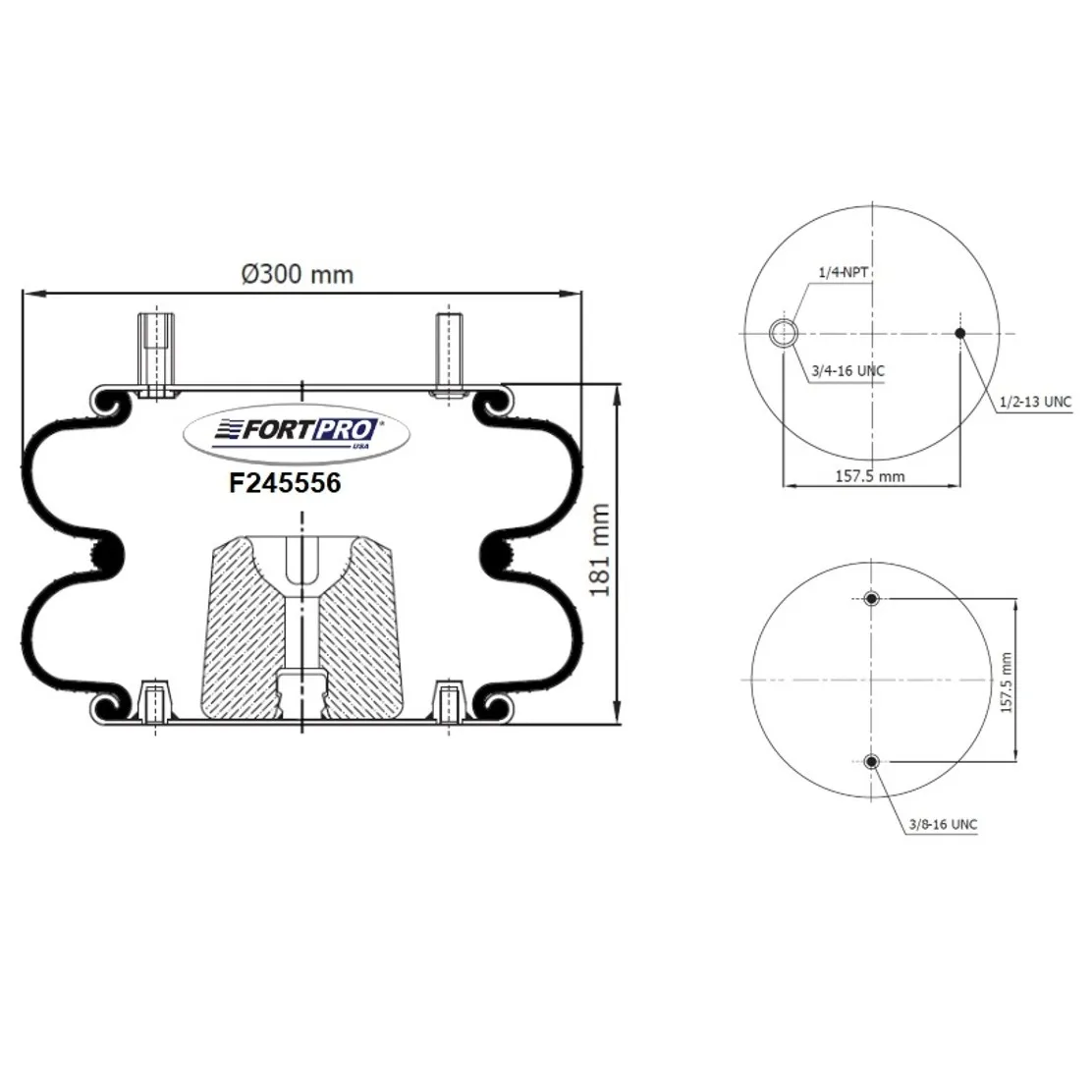

Dimensional/Physical Attributes
Material	Fiber reinforced rubber bellows
Body Diameter	12.00 in.
Bottom Plate Alignment	90 deg.
Bottom Plate C To C Diameter	6.20 in.
Bottom Plate Diameter	9.00 in.
Bottom Plate Hole Size	3/8-16 UNC
Bottom Plate Tapped Hole Qty	2
Top Plate Air Inlet	1/4 NPTF
Top Plate Air Inlet Stud	3/4-16 UNC
Top Plate C To C Diameter	6.20 in.
Top Plate Diameter	9.00 in.
Top Plate Stud Qty	2
Top Plate Stud Thread Size	1/2-13 UNC
Technical/Performance Attributes
Air Spring Type	Double Convoluted
Collapsed Length	4.20 in.
Extended Length	10.90 in.
Packaging & Logistics Attributes
Net Weight	15.20 lb.
Special Attributes
Cross References	1003587410C, 1611378, 1611378000, 22, 2B12406, 3547410, 566CT64268, 64268, 7410, 85101158, AB2B12406, ABSP2B22R7410, AS0136, AS7410, CS212406, FAS-0684, FAS0684, FD33022331, FS7410, GY2B12406, M3508, S10170, S13036, W01-358-7410, W013587410
Intended Application	For lift axle suspensions in heavy-duty trucks and trailers.
