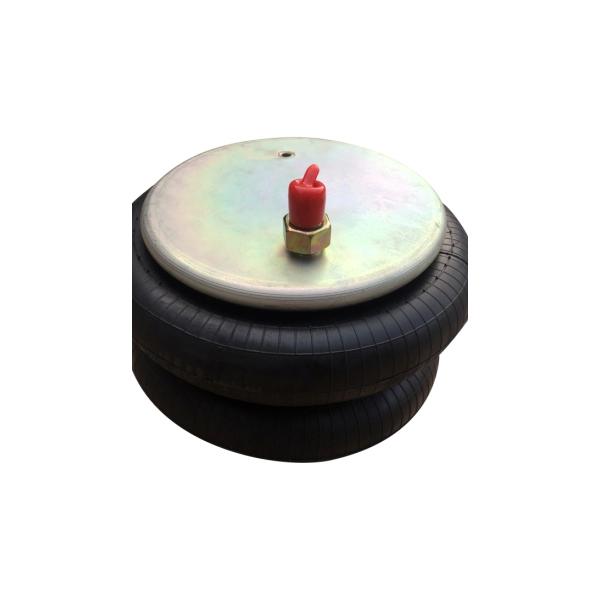

AIR SPRING 554787C1, 2B12-307, 7403

Name: AIR SPRING 554787C1, 2B12-307, 7403
Brand: FORTPRO
SKU: F245645
Availability: OutOfStock

Manufacturer: FORTPRO

SKU: F245645

Price:

Qty:

i h h

Specifications
Contact Us

Products specifications

Basic Part Information
Product Line	Suspension
Category Name	Air Springs and Bags
Part Type	Double Convoluted Air Spring
Alternate Part Name	Rubber Bellows Air Suspension Bag, Double Bellow Air Spring, Heavy Duty Suspension Air Bag, Trailer Suspension Air Spring, Double Convolution Air Bag, Double Convoluted Air Spring
OEM Part Number	W01-358-7403
Application/Fitment Attributes
Application Type	Semi-Trucks, Heavy Duty Trucks
VMRS	016-008-000
Dimensional/Physical Attributes
Material	Fiber reinforced rubber bellows
Body Diameter	12.00 in.
Bottom Plate Alignment	Parallel
Bottom Plate C To C Diameter	6.20 in.
Bottom Plate Diameter	9.00 in.
Bottom Plate Hole Size	3/8-16 UNC
Bottom Plate Stud Qty	2
Top Plate Air Inlet	1/4-18 NPTF
Top Plate Air Inlet Stud	3/4-16 UNC
Top Plate C To C Diameter	5.50 in.
Top Plate Diameter	9.00 in.
Top Plate Stud Qty	2
Top Plate Stud Thread Size	3/8-16 UNC
Technical/Performance Attributes
Air Spring Type	Double Convoluted
Collapsed Length	3.80 in.
Extended Length	10.90 in.
Packaging & Logistics Attributes
Net Weight	14.00 lb.
Special Attributes
Cross References	1003587403C, 1159, 22, 2725, 2B10307, 2B12307, 2B12433, 2B12445, 3057007403, 352035001, 3547403, 365141, 4318, 566CT64488, 57007403, 64488, 7403, 7405, ABSP2B22R7403, AS0007, AS7403, B1159, B2883, CS212307, FAS-0714, FAS0714, FD33022318, FS7403, GY2B12307, M3507, NA1060, S1159, S4302C, W013587403, MAF7403, W01-358-7403
Intended Application	Compatible with trailers equipped with Hendrickson, Ridewell, and Navistar Double-Convoluted Air Suspension Systems for Rear and Auxiliary Axles.
