| Product Line | Suspension |
| Category Name | Air Springs and Bags |

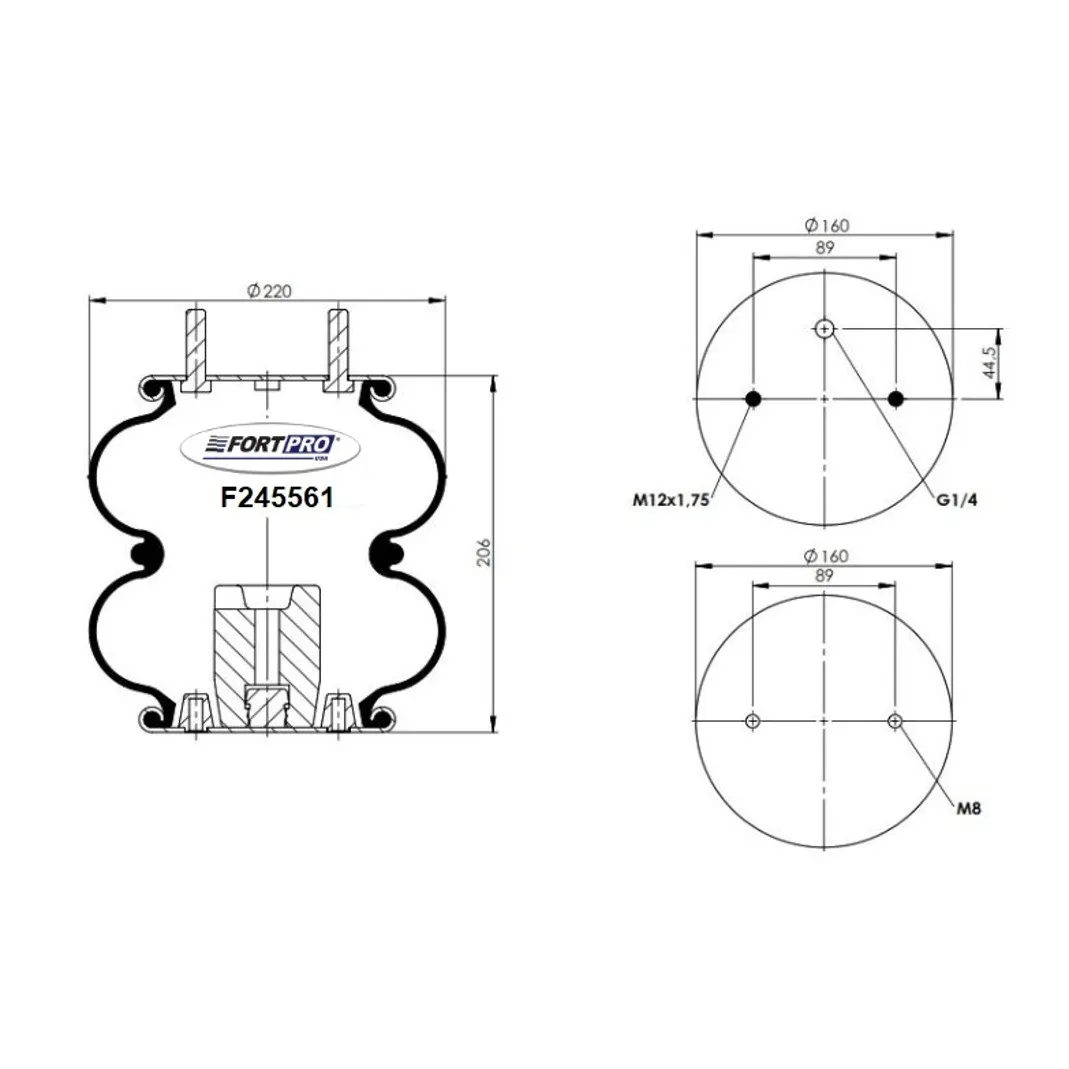

| Part Type | Double Convoluted Air Spring |
| Alternate Part Name | Double Convoluted Air Spring, Double Convolution Air Bag, Double Bellow Air Spring, Heavy Duty Suspension Air Bag, Trailer Suspension Air Spring, Rubber Bellows Air Suspension Bag |
| OEM Part Number | W01-358-6902 |
| Application Type | Heavy Duty Trucks, Semi-Trucks |
| VMRS | 016-008-000 |
| Material | Fiber reinforced rubber bellows |
| Body Diameter | 8.88 in. |
| Bottom Mounting Stud Size | 3/8-16 NPTF |
| Bottom Plate Alignment | Parallel |
| Bottom Plate C To C Diameter | 3.50 in. |
| Bottom Plate Diameter | 6.40 in. |
| Bottom Plate Hole Size | 1/2-13 UNC |
| Bottom Plate Stud Qty | 2 |
| Top Plate Air Inlet | 1/4-18 NPTF |
| Top Plate C To C Diameter | 3.50 in. |
| Top Plate Diameter | 6.40 in. |
| Top Plate Stud Qty | 2 |
| Top Plate Stud Thread Size | 3/8-16 UNC |
| Air Spring Type | Double Convoluted |
| Collapsed Length | 3.80 in. |
| Extended Length | 10.80 in. |
| Net Weight | 9.35 lb. |
| Cross References | 1003586902C, 1027505, 20, 2B09201, 2B9201, 2B9239, 3546902, 566CT64509, 57006902, 64509, 6902, ABSP2B12R6902, AS0002, AS6902, B2630, CS209201, FAS-0758, FAS0758, FD2019310, FS6902, M3500, S1728C, S2630, W013586902, W01-358-6902 |
| Intended Application | - For lift axle suspensions in heavy-duty trucks and trailers.
|
