| Product Line | Suspension |
| Category Name | Air Springs and Bags |
| Part Type | Double Convoluted Air Spring |
| Alternate Part Name | Double Convoluted Air Spring, Double Convolution Air Bag, Double Bellow Air Spring, Heavy Duty Suspension Air Bag, Trailer Suspension Air Spring, Rubber Bellows Air Suspension Bag |
| OEM Part Number | W01-358-6932 |
| Application Type | Semi-Trucks, Heavy Duty Trucks |
| VMRS Code | 016-008-000 |
| Material | Fiber reinforced rubber bellows |

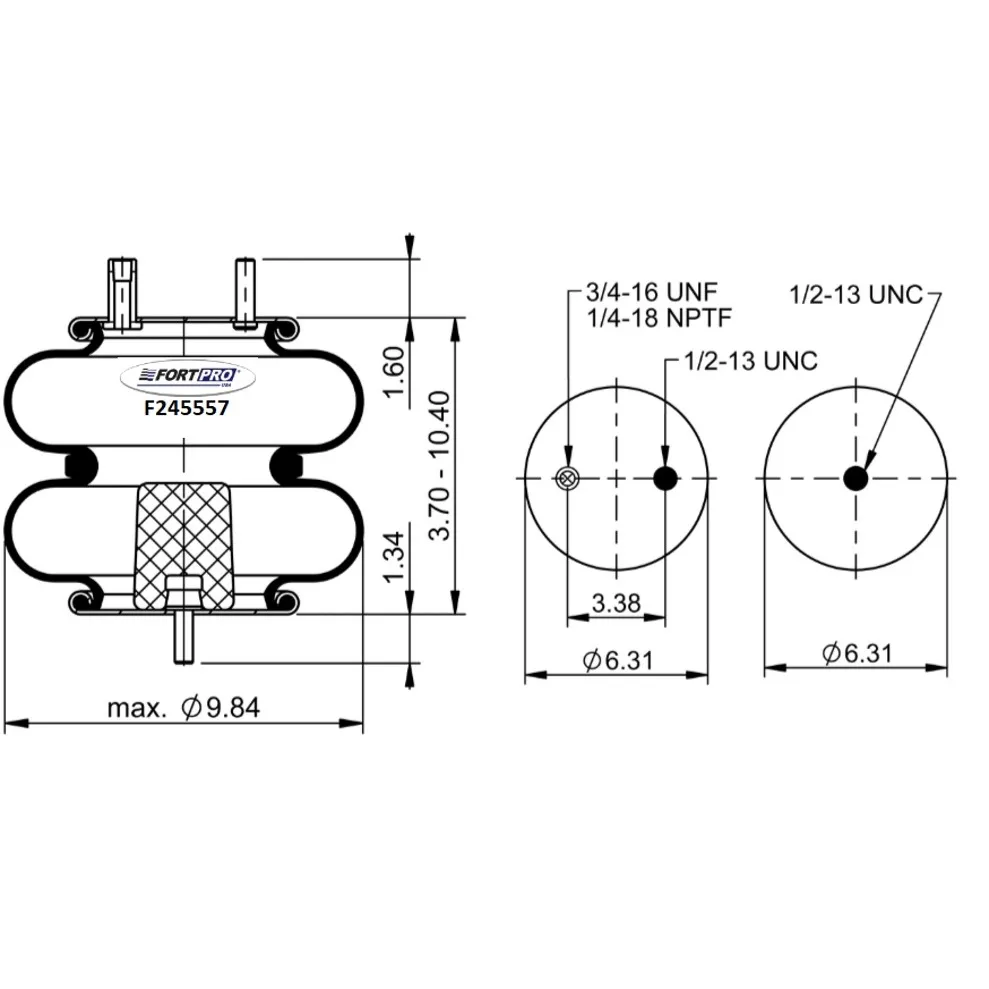

| Body Diameter | 8.88 in. |
| Bottom Plate Alignment | Parallel |
| Bottom Plate Diameter | 6.31 in. |
| Bottom Plate Hole Size | 1/2-13 UNC |
| Bottom Plate Stud Qty | 1 |
| Top Plate Air Inlet | 1/4 NPTF |
| Top Plate C To C Diameter | 3.38 in. |
| Top Plate Diameter | 6.31 in. |
| Top Plate Stud Qty | 2 |
| Top Plate Stud Thread Size | 1/2-13 UNC |
| Air Spring Type | Double Convoluted |
| Collapsed Length | 3.50 in. |
| Net Weight | 9.60 lb. |
| Cross References | 1003586932C, 2B9246, 3546932, 4452, 566CT64514, 57006932, 64514, 6932, ABSP2B12R6932, E-FS6932, EFS6932, FAS-0716, FAS0716, FD20019452, FS6932, W013586932, W01-358-6932 |
| Intended Application | - For lift axle suspensions in heavy-duty trucks and trailers.
|
