AIR SPRING 6905, 2B9-206

Name: AIR SPRING 6905, 2B9-206
Brand: FORTPRO
SKU: F245562
Availability: OutOfStock

Manufacturer: FORTPRO

SKU: F245562

Price:

Qty:

i h h

Products specifications

Basic Part Information
Product Line	Suspension
Category Name	Air Springs and Bags
Part Type	Double Convoluted Air Spring
Alternate Part Name	Double Convoluted Air Spring, Double Convolution Air Bag, Double Bellow Air Spring, Heavy Duty Suspension Air Bag, Trailer Suspension Air Spring, Rubber Bellows Air Suspension Bag
OEM Part Number	W01-358-6905
Application/Fitment Attributes
Application Type	Heavy Duty Trucks, Semi-Trucks
VMRS	016-008-000

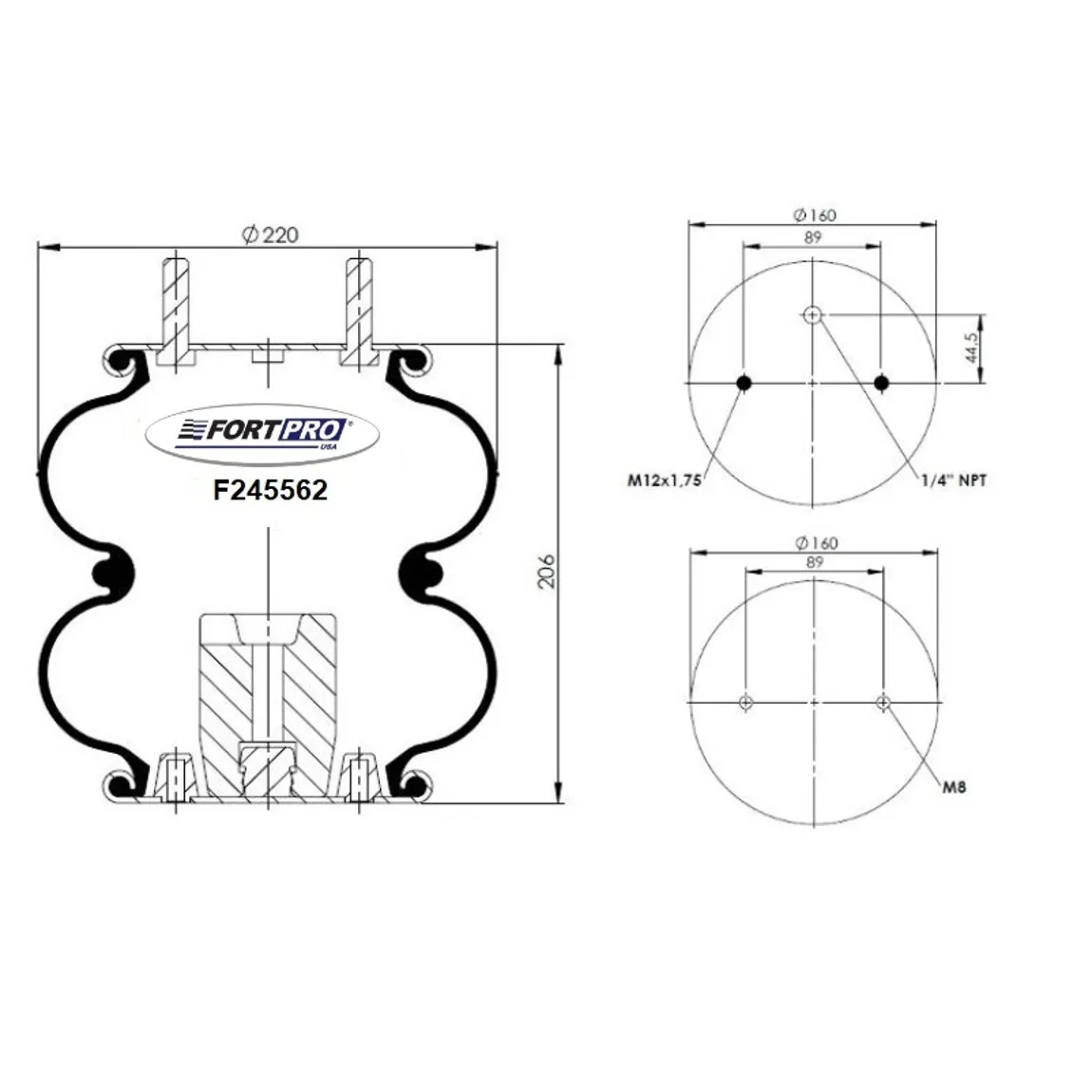

Dimensional/Physical Attributes
Material	Fiber reinforced rubber bellows
Body Diameter	8.88 in.
Bottom Mounting Stud Size	3/8-16 NPTF
Bottom Plate Alignment	Parallel
Bottom Plate C To C Diameter	3.50 in.
Bottom Plate Diameter	6.40 in.
Bottom Plate Stud Qty	2
Top Plate Air Inlet	1/4-18 NPTF
Top Plate C To C Diameter	3.50 in.
Top Plate Diameter	6.40 in.
Top Plate Stud Qty	2
Top Plate Stud Thread Size	1/2-13 UNC
Technical/Performance Attributes
Air Spring Type	Double Convoluted
Collapsed Length	3.80 in.
Extended Length	10.80 in.
Packaging & Logistics Attributes
Net Weight	8.94 lb.
Special Attributes
Cross References	1003586905C, 20, 2B09206, 2B9206, 2B9209, 3546905, 38FS6905, 45843001, 458431, 566CT64510, 57006905, 64510, 6905, 8030120, 85101146, AB2B9206, ABSP2B12R6905, AS0020, AS6905, B5270, CS209206, FD20019315, FS6905, M3551, M6975, S2845C, W013586905, W01-358-6905
Intended Application	For lift axle suspensions in heavy-duty trucks and trailers.
