| Product Line | Suspension |
| Category Name | Air Springs and Bags |

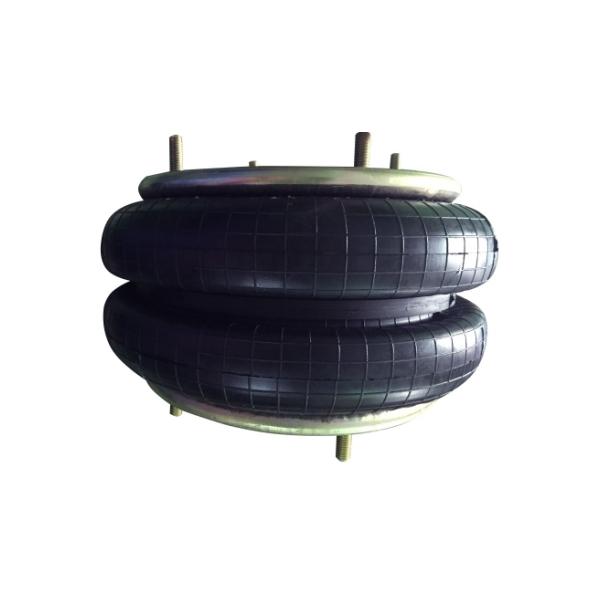

| Part Type | Double Convoluted Air Spring |
| Alternate Part Name | Double Convoluted Air Spring, Double Convolution Air Bag, Double Bellow Air Spring, Heavy Duty Suspension Air Bag, Trailer Suspension Air Spring, Rubber Bellows Air Suspension Bag |
| OEM Part Number | W01-358-7135 |
| Application Type | Heavy Duty Trucks, Semi-Trucks |
| VMRS Code | 016-008-000 |
| Material | Fiber reinforced rubber bellows |
| Body Diameter | 14.50 in. |
| Bottom Mounting Stud Size | 1/2-13 UNC |
| Bottom Plate Alignment | Parallel |
| Bottom Plate C To C Diameter | 8.84 in. |
| Bottom Plate Diameter | 11.30 in. |
| Bottom Plate Stud Qty | 4 |
| Top Plate Air Inlet | 1/4-18 NPTF |
| Top Plate C To C Diameter | 6.25 in. |
| Top Plate Diameter | 11.30 in. |
| Top Plate Stud Qty | 4 |
| Top Plate Stud Thread Size | 1/2-13 UNC |
| Air Spring Type | Double Convoluted |
| Collapsed Length | 3.70 in. |
| Extended Length | 11.30 in. |
| Net Weight | 19.55 lb. |
| Cross References | 1003587135C, 2B14360, 3090557001, 3130501, 3547135, 566CT64543, 57007135, 57QL46, 64543, 7135, 90557001, AB2B14360, ABSP2B34R7135, AR21A, AS7135, CS214360, FAS-0739, FAS0739, FD53022311, FS7135, GY2B14360, M3502, MNW90557001S, S13034, S1326C, W013587135, 2B14-360, 4311, 566ER7135, AS4311, MAF7135, W01-358-7135 |
| Intended Application | - Compatible with Hendrickson HAS230, HAS400, HT250 and HT300 suspension systems, installed on Freightliner, Kenworth, Peterbilt, Volvo, Mack and Western Star vehicles.
|
