| Cross References | 10792582, 10892582AM, 10893582M0, 10893582MO, 10970182AM, 30892582, AN155698SB7, CLU10892582, CLU20892582, EP10892582, MAF-108925-82, MAF10892582, MU129698SB7, MU155698SB7, N10792582, N10892582, NMU4550444, NMU455044K6, NMU6980444, NMU8980444, F276015, SS20892582B, 108925-82,10892582,208925-82,20892582,308925-82,30892582,108925-82AM,10892582AM,108935-82MO,10893582MO,MAF-108925-82,MAF10892582,CL108825-82,CL10882582,ABP N25 208925 82,ABPN2520892582,ABP N25 1551700EZ,ABPN251551700EZ,NMU898-044-4,NMU8980444,CLU20892582, 108925-82,10892582,208925-82,20892582,308925-82,30892582,108925-82AM,10892582AM,107925-82,10792582,108935-82MO,10893582MO,108935-82,10893582,107935-82,10793582,108925-81,10892581,108925-14,10892514,108925-80,10892580,108935-80,10893580,108925-84,10892584,108935-84,10893584,MAF-108925-82,MAF10892582,CL108825-82,CL10882582,ABP N25 208925 82,ABPN2520892582,ABP N25 1551700EZ,ABPN251551700EZ,N10892582,N10792582,RC700EZX,RC700X,HN10892582,MU-155698-SB-7,MU155698SB7,MU-129698-SB-7,MU129698SB7,NMU898-044-4,NMU8980444,NMU898-044-4-M,NMU8980444M,NMU455-044-4,NMU4550444,NMU455-044-4-M,NMU4550444M,NMU698-044-4,NMU6980444,SP-AN-108925-11G5,SPAN10892511G5,EZ208925-82B,EZ20892582B,CLU20892582 |

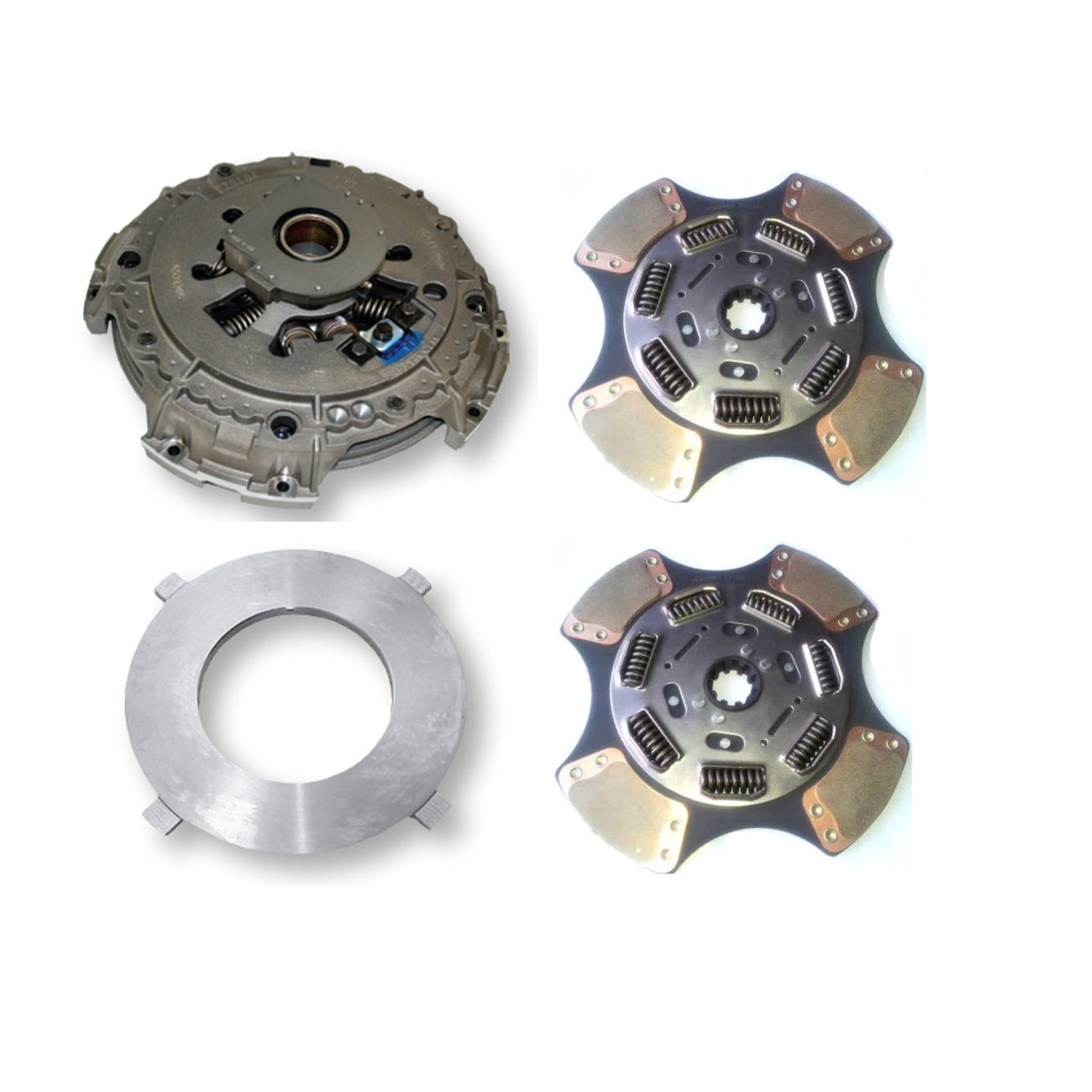

| Intended Application | - Compatible with Class 7-8 heavy-duty trucks equipped with non-synchronized manual transmissions using 15.5 in. x 2 in. Dual Disc clutches with a 7 Spring configuration and a 10 in. flywheel bore. Designed for high-torque applications on Mack, Volvo, and equivalent configurations requiring a manually adjustable EZ-type ceramic clutch and a mechanical release system with a clutch brake. Suitable for Eaton Fuller and similar drivetrains where a 2 in.-10 spline input shaft is used. Flywheel diameter, torque capacity, and drivetrain specifications must be verified before installation to ensure proper compatibility.
- Always compare with your OEM part number prior to purchase to confirm full compatibility.
, - For 15 in. flat flywheels with a 10 in. bore (9.750 in. minimum) and a 2 in. 10-spline input shaft
- For Cummins ISX, N14/NT855 and M11 engines with a 15 in. flat flywheel
- For Caterpillar 3406/3406E, C10, C12, C15, C16 and C18 engines
- For Detroit Series 60 and Volvo VED11/VED12 engines
- For engines up to 1700 ft-lb; for up to 2050 ft-lb, use CLU10892582H
- Not for Mack E7, E-Tech or 675/676 flywheels, which call for a 9-spring clutch (CLU10893551)
- For mechanical (pull) release only; manual-adjust clutches are not recommended for hydraulic release systems
, - For 15 in. flat flywheels with a 10 in. bore (9.750 in. minimum) and a 2 in. 10-spline input shaft
- For Cummins ISX, N14/NT855 and M11 engines with a 15 in. flat flywheel
- For Caterpillar 3406/3406E, C10, C12, C15, C16 and C18 engines
- For Detroit Series 60 and Volvo VED12 engines
- For Mack trucks that use OE 108935-82 (7-spring, 10 in. bore)
- For engines up to 1700 ft-lb; for up to 2050 ft-lb, use CLU10892582H
- Not for Mack E7, E-Tech, 675/676 or Volvo D11/D13 flywheels, which call for a 9-spring clutch (CLU10893551)
- For mechanical (pull) release only; manual-adjust clutches are not recommended for hydraulic release systems
|
