CLUTCH,15.5X2,9SPR 6PDL C F276016 108935-51H

Fabricante: ROAD CHOICE
Sku: 1000-CLU10893551H
Precio:
i h h
Especificaciones de productos
Basic Part Information
Product LineTransmission
Category NameClutch Components
Part TypeClutch Assembly
Alternate Part NameHeavy Duty Clutch Assembly, Clutch Assemblies, Clutch Kit, Dual Disc Clutch, Two Plate Clutch, 9 Spring Clutch, High Torque Clutch, 6 Paddle Clutch, Low Pedal Effort Clutch, Pull Type Clutch, Pressure Plate and Disc Kit
OEM Part Number108935-51H
Application/Fitment Attributes
Application TypeHeavy Duty Trucks
Clutch Diameter15-1/2 in.
Flywheel Bore Diameter10 in.
Flywheel TypeFlat
Spline Count10
Spline Diameter2 in.
Dimensional/Physical Attributes
MaterialSteel, Ceramic Pad
Technical/Performance Attributes
Adjustment SystemManual
Clutch TechnologyEZ Series (Reduced Pedal Effort)
Disc Facing MaterialCeramic
Disc Paddle Type6
Disc Spring Quantity9
Duty RatingHeavy Duty
Clutch Disc Qty2
Pressure Plate Clamp Load4000 lb.
Release TypePull
Torque Rating2050 ft-lb
Transmission TypeManual
Packaging & Logistics Attributes
Net Weight145 lb.
Special Attributes
Technical Notes
  • Install a new pilot bearing with a Viton seal (Mack: 6306M) and a new clutch brake at every installation
  • Cover bolts, Grade 5 or higher: 7/16 x 2-1/4 in. at 40-50 ft-lb; 3/8 x 1-1/4 in. at 25-35 ft-lb
  • Release bearing to cover: 1/2 to 5/8 in.; release bearing to clutch brake: 1/2 to 9/16 in.; 1/8 in. free travel at the fork
  • If the flywheel is resurfaced past .060 in., install the included fiber spacer
  • Adjust when half of the pedal free play is lost; grease the release bearing at every chassis lube
Cross ReferencesCLU10893551H, CLU20893551H, F276016, HN10893551H, LP10893551HTC, 108935-51H,10893551H,208935-51H,20893551H,CLU20893551H,108935-51,10893551,108935-51AM,10893551AM,108935-61,10893561,108935-61AM,10893561AM,108935-91,10893591,108935-91AM,10893591AM,108935-91A,10893591A,108935-94,10893594,2104-10893551,210410893551,2104-10893591,210410893591,2104-10893594,210410893594,EM97250,20892591
Intended Application
  • Compatible with heavy-duty manual transmissions that utilize a 15-1/2 in. x 2 in. dual disc clutch for a 10-inch flywheel bore, 9 Spring configuration with 6 Pad ceramic discs and an approximate capacity of 2050 ft-lb, specifically designed for Mack-style (Mack Only) applications with an EZ Dual system on Class 8 transmission platforms that require high torque geometry and manual adjustment. Also fits various Volvo models. Check manufacturer’s specifications.
  • Always compare with your OEM part number prior to purchase to confirm full compatibility.
,
  • For Mack heavy-duty trucks with a flat flywheel, 10 in. bore (9.750 in. minimum) and 2 in. 10-spline input shaft
  • For Mack E7, E7 E-Tech and 675/676 engines whose 15 in. flat flywheel calls for a 9-spring clutch
  • For engines up to 2050 ft-lb; for 1700 ft-lb or less, CLU10893551 also fits
  • Also fits some Volvo models; confirm the part number before ordering
  • For mechanical (pull) release only; manual-adjust clutches are not recommended for hydraulic release systems

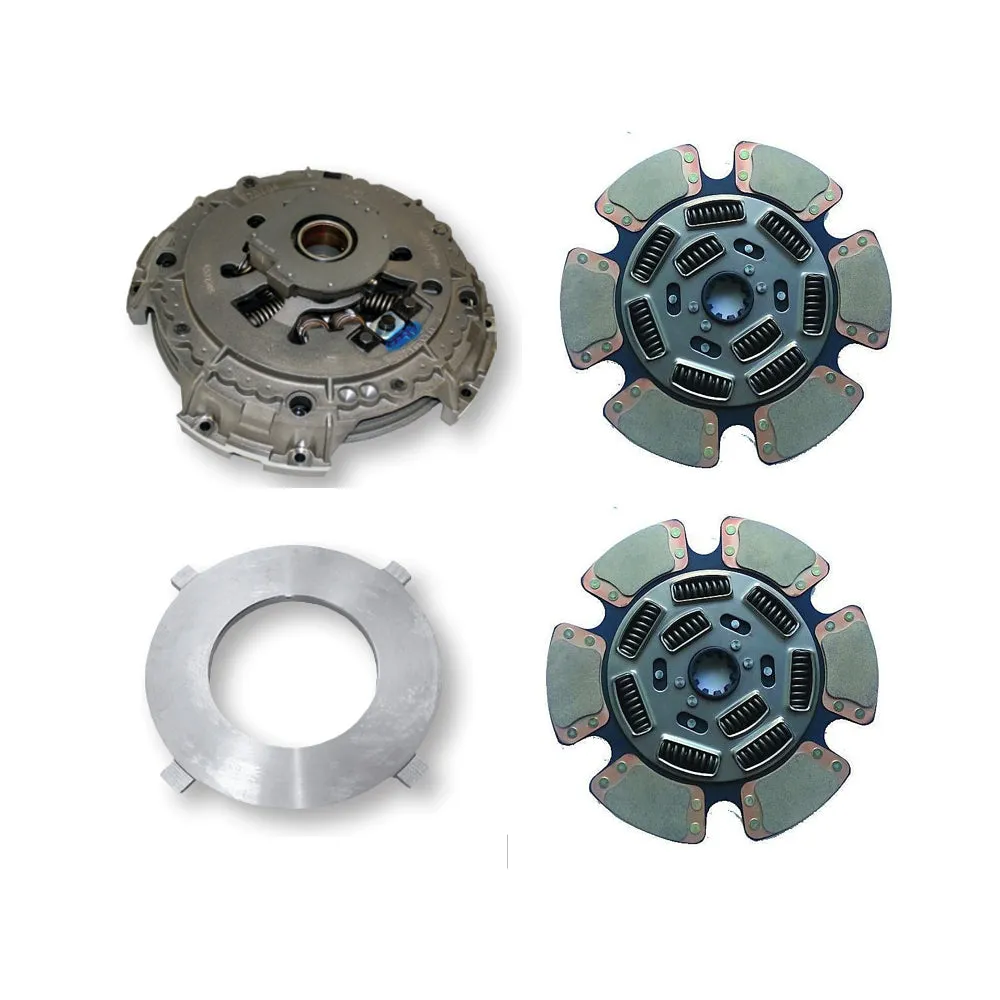

BOM
  • Cover assembly, EZ Series, with sealed release bearing (1)
  • Clutch disc, 6-pad ceramic, 9 springs (2)
  • Intermediate plate (1)
  • Fiber spacer (1)
*
*
*
