CLUTCH,15.5X2,9SPR 4PDL C F276014 108935-51

Fabricante: ROAD CHOICE
Sku: 1000-CLU10893551
Precio:
i h h
Especificaciones de productos
Basic Part Information
Product LineTransmission
Category NameClutch Components
Part TypeClutch Assembly
Alternate Part NameHeavy Duty Clutch Assembly, Clutch Assemblies, Clutch Kit, Dual Disc Clutch, Two Plate Clutch, 9 Spring Clutch, Low Pedal Effort Clutch, Pull Type Clutch, Pressure Plate and Disc Kit
OEM Part Number108935-51
Application/Fitment Attributes
Application TypeHeavy Duty Trucks
Clutch Diameter15-1/2 in.
Flywheel Bore Diameter10 in.
Flywheel TypeFlat
Spline Count10
Spline Diameter2 in.
Dimensional/Physical Attributes
MaterialSteel, Ceramic Pad
Technical/Performance Attributes
Adjustment SystemManual
Clutch TechnologyEZ Series (Reduced Pedal Effort)
Disc Facing MaterialCeramic
Disc Paddle Type4
Disc Spring Quantity9
Duty RatingHeavy Duty
Clutch Disc Qty2
Pressure Plate Clamp Load3600 lb.
Release TypePull
Torque Rating1700 ft-lb
Transmission TypeManual
Packaging & Logistics Attributes
Package Length9.00 in.
Package Width19.00 in.
Package Height18.00 in.
Net Weight145 lb.
Special Attributes
Technical Notes
  • Install a new pilot bearing with a Viton seal (Mack: 6306M) and a new clutch brake at every installation
  • Cover bolts, Grade 5 or higher: 7/16 x 2-1/4 in. at 40-50 ft-lb; 3/8 x 1-1/4 in. at 25-35 ft-lb
  • Release bearing to cover: 1/2 to 5/8 in.; release bearing to clutch brake: 1/2 to 9/16 in.; 1/8 in. free travel at the fork
  • If the flywheel is resurfaced past .060 in., install the included fiber spacer
  • Adjust when half of the pedal free play is lost; grease the release bearing at every chassis lube
Cross References10793551, 10793551B, 10892551AM, 10893561M0, 10893591AM, 10893591M0, 755NC170051A, 755NC170051E, AN155698SB9, CCA-9738, CCA9738, CLU10893551, CLU20893551, EM97380, EP10893551, F276014, MAF-108935-51, MAF10893551, MU129698SB9, MU155698SB9, N10793551, N10893551, SS10893551, SS20893551, 108935-51,10893551,108935-51AM,10893551AM,108925-51,10892551,208925-51,20892551,11HB59P114,2104-10893551,210410893551,107935-51,10793551,107935-51B,10793551B,N10893551,N10793551,EP10893551,CCA-9738,CCA9738,755NC170051A,NMU108935-51A,NMU10893551A,CLU20893551,F276014
Intended Application
  • Compatible with heavy-duty manual transmissions that utilize a 15-1/2 in. x 2 in. dual disc clutch designed for a 10-inch flywheel bore, 9 Spring configuration with 4 Pad ceramic discs and EZ Dual system, specifically geared towards Mack-style applications where manual-adjust clutch geometry is required for high-torque class 8 platforms.
  • Always compare with your OEM part number prior to purchase to confirm full compatibility.
,
  • For Mack heavy-duty trucks with a flat flywheel, 10 in. bore (9.750 in. minimum) and 2 in. 10-spline input shaft
  • For Mack E7, E7 E-Tech and 675/676 engines whose 15 in. flat flywheel calls for a 9-spring clutch
  • Also fits some Volvo models; confirm the OE number before ordering
  • For mechanical (pull) release only; manual-adjust clutches are not recommended for hydraulic release systems

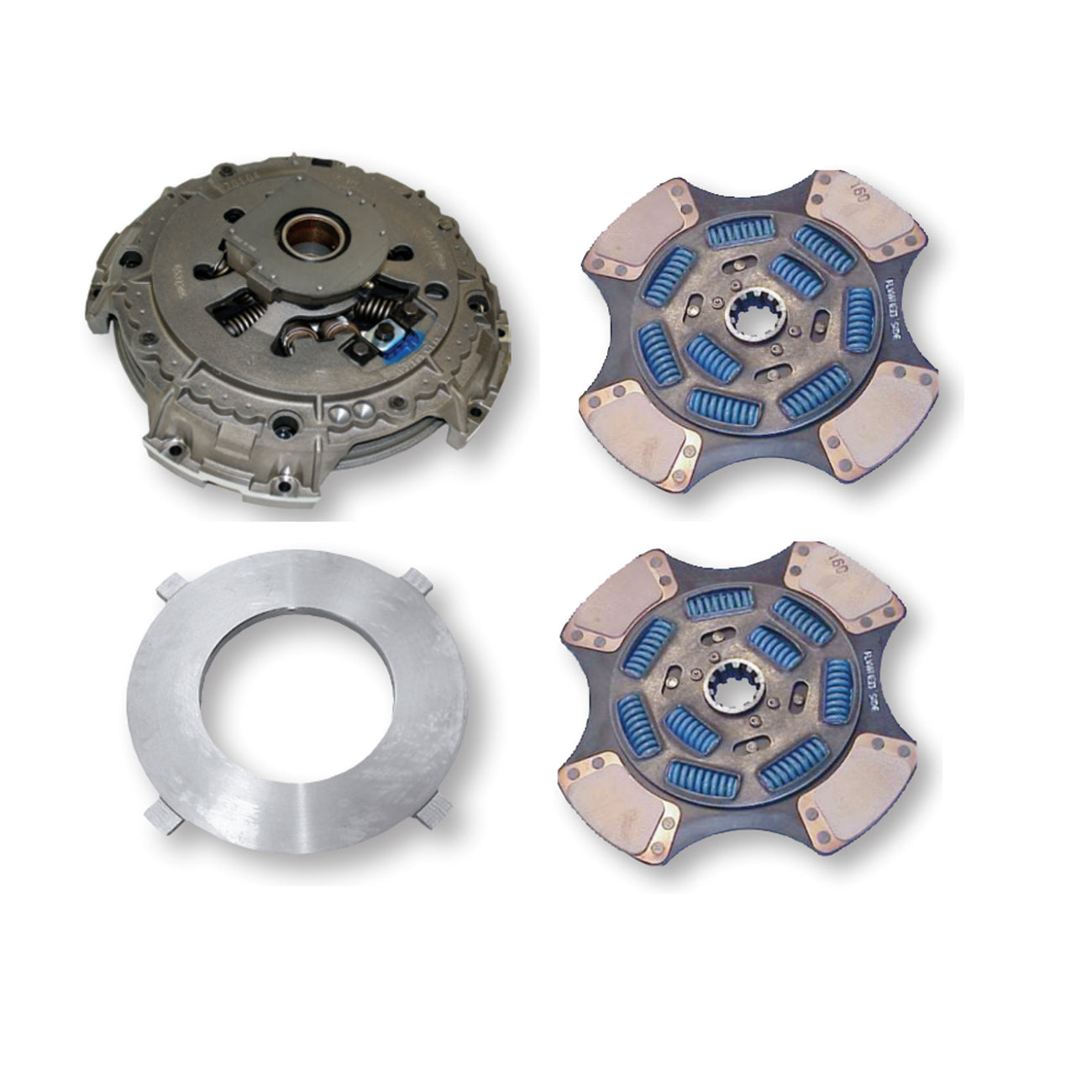

BOM
  • Cover assembly, EZ Series, with sealed release bearing (1)
  • Clutch disc, 4-pad ceramic, 9 springs (2)
  • Intermediate plate (1)
  • Fiber spacer (1)
*
*
*
Los clientes que compraron este artículo también compraron
DIAPHRAGM TYPE 30  F236668 / KN18300

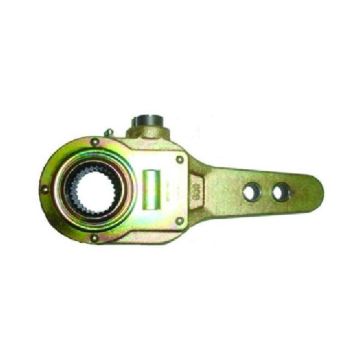

MANUAL SLACK ADJUSTER 1-1/2IN 28 TEETH 288282/ 44071
