CLUTCH,15.5X2,7SPR 6PDL C F276015H 10892582H F276017 108925-25

Fabricante: ROAD CHOICE
Sku: 1000-CLU10892582H
Precio:
i h h
Especificaciones de productos
Basic Part Information
Product LineTransmission
Category NameClutch Components
Part TypeClutch Assembly
Alternate Part NameClutch Assemblies, Heavy Duty Clutch Assembly, Clutch Kit, Dual Disc Clutch, Two Plate Clutch, 7 Spring Clutch, 6 Paddle Clutch, High Torque Clutch, 2050 Clutch, Pull Type Clutch, Low Pedal Effort Clutch, Pressure Plate and Disc Kit
OEM Part Number108925-82H
Application/Fitment Attributes
Application TypeHeavy Duty Trucks
Clutch Diameter15-1/2 in.
Flywheel Bore Diameter10 in.
Flywheel TypeFlat
Spline Count10
Spline Diameter2 in.
Dimensional/Physical Attributes
MaterialSteel, Ceramic Pad
Technical/Performance Attributes
Adjustment SystemManual
Clutch TechnologyEZ Series (Reduced Pedal Effort)
Disc Facing MaterialCeramic
Disc Paddle Type6
Disc Spring Quantity7
Duty RatingHeavy Duty
Clutch Disc Qty2
Pressure Plate Clamp Load4000 lb.
Release TypePull
Torque Rating2050 ft-lb
Transmission TypeManual
Packaging & Logistics Attributes
Net Weight145 lb.
Special Attributes
Technical Notes
  • Install a new pilot bearing (6306, Viton seal recommended) and a new 2 in. clutch brake at every installation
  • Cover bolts, Grade 5 or higher: 7/16 x 2-1/4 in. at 40-50 ft-lb; 3/8 x 1-1/4 in. at 25-35 ft-lb
  • Release bearing to cover: 1/2 to 5/8 in.; release bearing to clutch brake: 1/2 to 9/16 in.; 1/8 in. free travel at the fork
  • If the flywheel is resurfaced past .060 in., install the included fiber spacer
  • Do not use organic-faced discs on a 10 in. bore flywheel
  • Discs use standard 7-spring dampers, not the VCT (NVH) damper of the Eaton -25 versions
  • Adjust when half of the pedal free play is lost; grease the release bearing at every chassis lube
Cross References20892520, 20892525, 20970125, CLU10892582H, CLU20892582H, ESA20992525, F276015H, HN10892582H, MAF-209925-25, MAF20992525, SS20970120, SS20970125, 108925-25AM,10892525AM,108925-25,10892525,208925-25,20892525,308925-25,30892525,108925-20AM,10892520AM,208925-20,20892520,HN10892582H,SS108925-25,SS10892525,SS108925-82H,SS10892582H,EP108925-25,EP10892525,MU-155698-12-SB-7,MU15569812SB7,NMU898-147-6,NMU8981476,NMU898-047-6,NMU8980476,NMU455-147-6,NMU4551476,M1089251-4W5,M10892514W5,CLU20892582H
Intended Application
  • Compatible with heavy-duty manual transmissions that utilize 15.5 in. x 2 in. dual disc clutches for 10-inch bore flywheels, 7 Spring / 6 Pad Ceramic configuration and 2050 ft-lb capacity, including applications with 10 in. bore flat flywheels used on Detroit Series 60, Cummins ISX/M11/N14 and Volvo VED platforms where a manual-adjust EZ Dual type clutch is required.
  • Always compare with your OEM part number prior to purchase to confirm full compatibility.
,
  • For 15 in. flat flywheels with a 10 in. bore (9.750 in. minimum) and a 2 in. 10-spline input shaft
  • For Cummins ISX, N14/NT855 and M11 engines with a 15 in. flat flywheel
  • For Caterpillar 3406/3406E, C10, C12, C15, C16 and C18 engines
  • For Detroit Series 60 and Volvo VED12 engines
  • For engines up to 2050 ft-lb; replaces 1860 ft-lb (-20) and 2050 ft-lb (-25) EZ clutches of the same size
  • Not for Mack E7, E-Tech, MP or 675/676 or Volvo D11/D13 flywheels, which call for a 9-spring clutch (CLU10893551H)
  • For mechanical (pull) release only; manual-adjust clutches are not recommended for hydraulic release systems; self-adjusting version: CLU20992582H

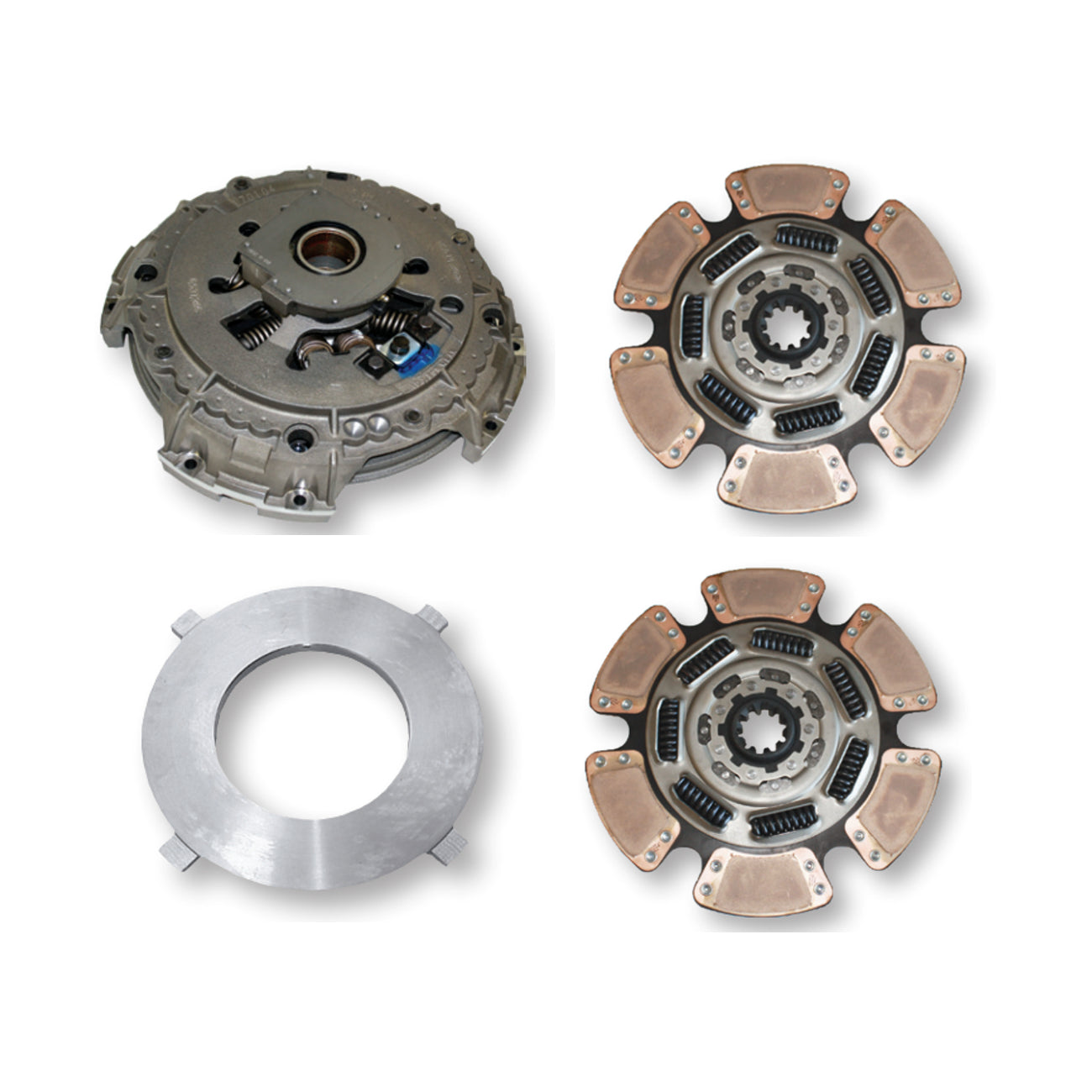

BOM
  • Cover assembly, EZ Series, with sealed release bearing (1)
  • Clutch disc, 6-pad ceramic, 7 springs (2)
  • Intermediate plate (1)
  • Fiber spacer (1)
*
*
*
