| Product Line | Transmission |
| Category Name | Clutch Components |
| Part Type | Clutch Assembly |
| Alternate Part Name | Clutch Assemblies, Medium Duty Clutch Assembly, Clutch Kit, Dual Disc Clutch, Two Plate Clutch, 14 Inch Clutch |
| OEM Part Number | 107237-10 |
| Application Type | Semi-Trucks, Medium Duty Trucks |
| Clutch Diameter | 14 in. |
| Flywheel Bore Diameter | 7 in. |
| Flywheel Type | Flat |
| Spline Count | 10 |
| Spline Diameter | 1-3/4 in. |
| Material | Steel, Ceramic Pad |
| Adjustment System | Manual |
| Clutch Technology | Standard |
| Disc Facing Material | Ceramic |
| Disc Paddle Type | 3 |
| Disc Spring Quantity | 8 |
| Duty Rating | Medium Duty |
| Clutch Disc Qty | 2 |
| Pressure Plate Clamp Load | 2400 lb. |
| Release Type | Pull |
| Torque Rating | 860 ft-lb |
| Transmission Type | Manual |
| Net Weight | 125 lb. |
| Technical Notes | Resurface or replace the flywheel; if machined past .060 in., install the included fiber spacer. Replace the pilot bearing (Viton seal) and the clutch brake. Cover bolts, Grade 5 or higher: 7/16 x 2-1/4 in., 40-50 ft-lb; 3/8 x 1-1/4 in., 25-35 ft-lb. Check 1/2 to 5/8 in. from release bearing to cover, 1/8 in. free travel at the yoke and 1/2 to 9/16 in. bearing to clutch brake. Adjust when half the pedal free travel is lost. Lube with high-temperature grease. Spring life two to five times that of an untreated spring, per Road Choice testing., - Resurface or replace the flywheel; if machined past .060 in., install the included fiber spacer
- Replace the pilot bearing (Viton seal) and the clutch brake at every installation
- Cover bolts, Grade 5 or higher: 7/16 x 2-1/4 in. at 40-50 ft-lb; 3/8 x 1-1/4 in. at 25-35 ft-lb
- Release bearing to cover: 1/2 to 5/8 in.; free travel at the yoke: 1/8 in. (mechanical linkage); release bearing to clutch brake: 1/2 to 9/16 in.
- Adjust the clutch when half of the pedal free travel is lost
- Lubricate the release bearing with high-temperature grease each time the chassis is lubricated
- Disc spring life two to five times that of an untreated spring, per Road Choice testing
|
| Cross References | 10723710, 10723710M0, 10723722, CCA-9724, CCA9724, CLU10723710, EP10723722, F276007, MAF-107237-22, MAF10723722, N10723710, 107237-10,10723710,107237-10MO,10723710MO,10723710M0,107237-22,10723722,CCA-9724,CCA9724,EP10723722,MAF-107237-22,MAF10723722,NMU060-022-5-A,NMU0600225A,CL107337-10,CL10733710,ABP N25 14860ST,ABPN2514860ST,FLTC10723710,MU129044-26NCR,MU12904426NCR,C10723710,F276007,CLU10723710 |
| Intended Application | - Compatible with medium-duty diesel trucks (Class 6-7) equipped with moderate torque manual transmissions and 1-3/4 in. x 10 spline input shaft, designed for 14 in. flywheel configurations with a 7 in. center diameter and 8-spring disc architecture, suitable for engines within an approximate range of up to 900 ft-lb of torque, clutch drive systems with mechanical linkage and manual adjustment, and regional haul, urban delivery, municipal, utility, or light vocational duty cycles where moderate thermal resistance and frequent stop-start operation without severe continuous heavy haul loads are required.
- Always compare with your OEM part number prior to purchase to confirm full compatibility.
, - For 14 in. pull-type, manual-adjust 2-plate clutch systems with a 1-3/4 in. x 10 spline transmission input shaft
- For flat flywheels with a 7 in. bore
- For engines rated up to 860 ft-lb
- For mechanical clutch linkage; manual-adjust clutches are not recommended for hydraulic release systems
- Replaces OE 107237-10 (Eaton); verify the number on your old clutch before ordering
|

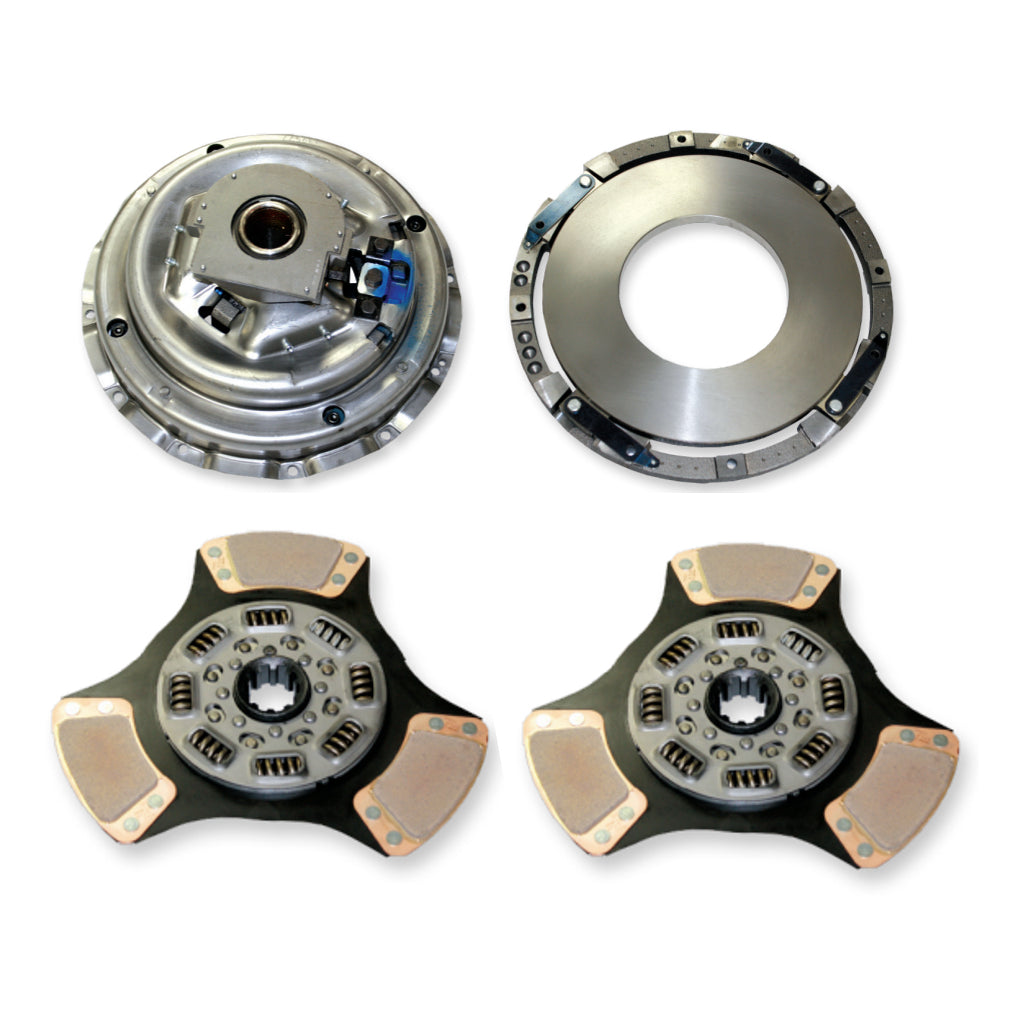

| BOM | Cover assembly with release bearing (1); Clutch disc, 3-pad, 8 springs (2); Intermediate plate (1); Fiber spacer (1), - Cover assembly with release bearing (1)
- Clutch disc, 3-pad, 8 springs (2)
- Intermediate plate (1)
- Fiber spacer (1)
|
