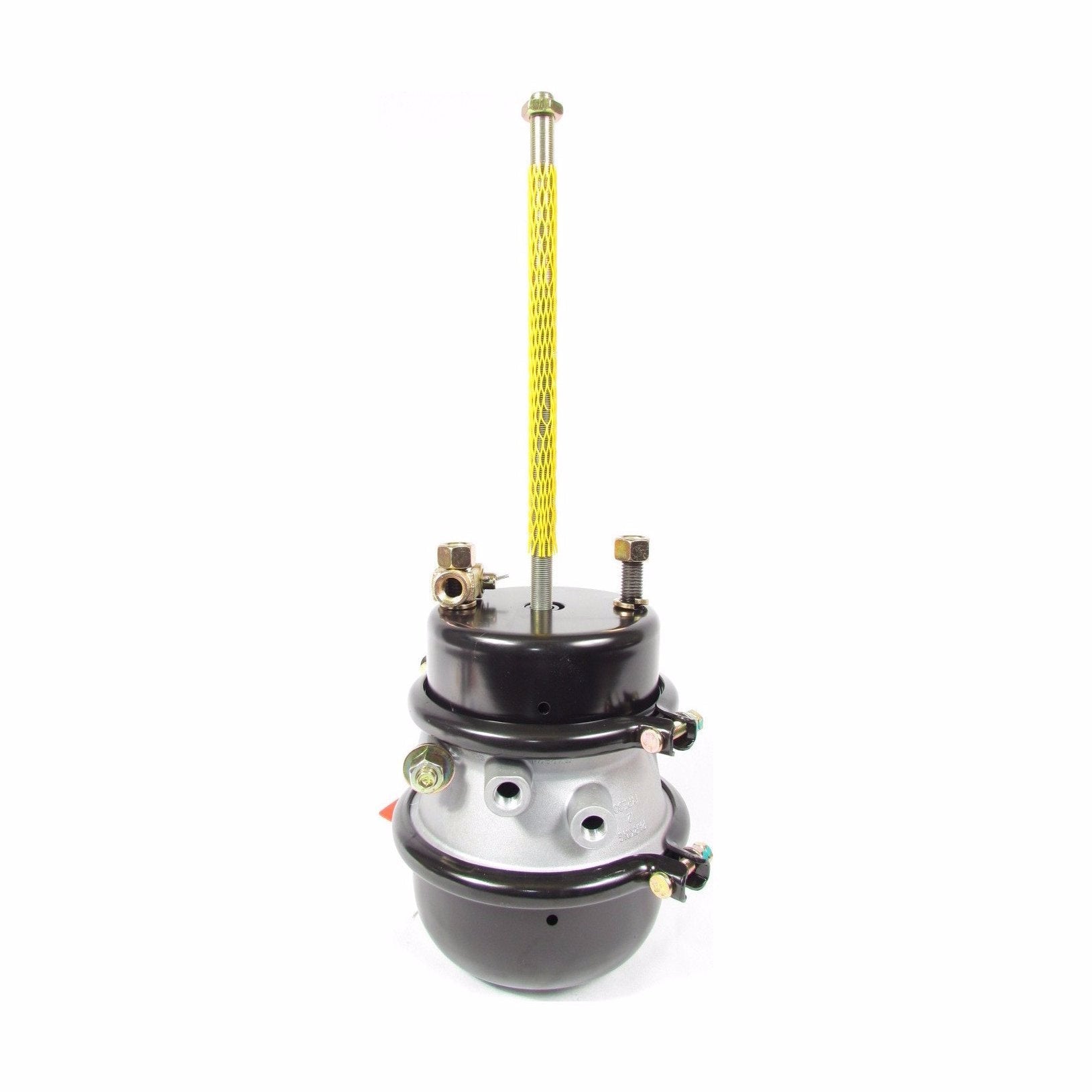

SPRING BRAKE CHAMBER TYPE 24/30 SEALED

Manufacturer: FORTPRO
SKU: F224795
i h h
Products specifications
Emergency Port Thread Size3/8-18 NPTF
Chamber StyleDouble Diaphragm
Mounting Bolt Length1.52 in.
Mounting Bolt Thread Size5/8-11 UNF-2A
Brake TypeDrum
ModelType 2430, T24/30, 24/30, 24-30
Part TypeAir Brake Chamber
Alternate Part NameBrake Canister / Brake Can / Air Brake Canister
Brake System CompatibilityS-Cam
Application TypeHeavy Duty Trucks, Semi-Trucks
Port Orientation90°
Maximum Operating Pressure150 PSI
ServiceabilitySealed
Stroke Lenght2.25 in.
Stroke TypeStandard Stroke
Clevis YokeIncluded
Service Chamber Joint TypeSingle Clamp Band
Push Rod Thread Size5/8-18 UNF-2A
Service Port Thread Size3/8-18 NPTF
Clevis Mounting TypeThreaded
Chamber TypeSpring Brake Chamber
Push Rod Length10.00 in.
Outside Diameter (O.D.)8.30 in.
