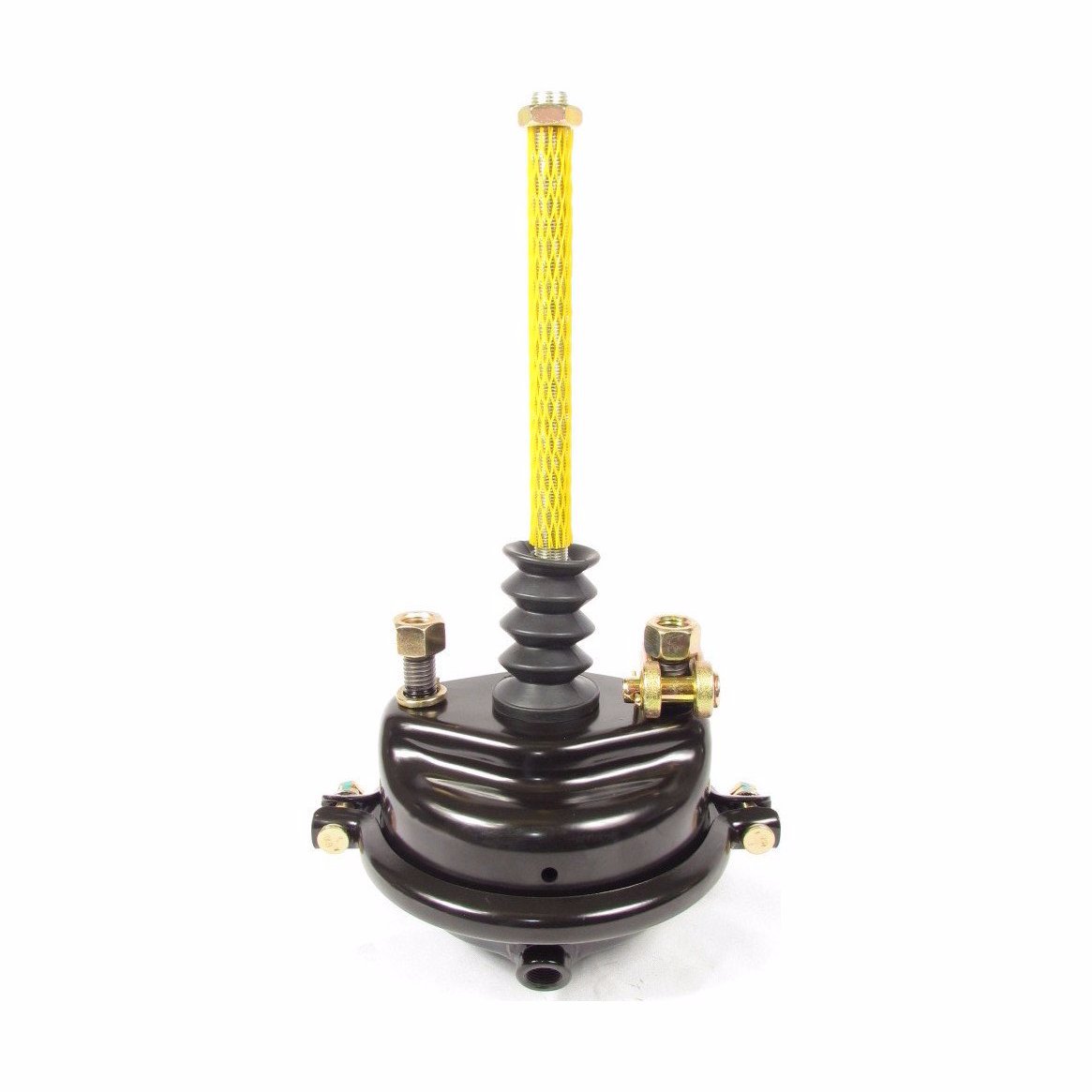

BRAKE CHAMBER TYPE 24 F288808

Manufacturer: FORTPRO
SKU: F224727
i h h
Products specifications
Chamber StyleSingle Diaphragm
Brake TypeDrum
Mounting Bolt Length1.44 in. (36.6 MM)
Mounting Bolt Thread Size5/8-18 UNF-2A
Brake System CompatibilityS-Cam
Part TypeAir Brake Chamber
OEM Part Number288808
ModelT24, T-24, 24
Application TypeHeavy Duty Trucks, Semi-Trucks
Alternate Part NameBrake Canister / Brake Can / Air Brake Canister
Port Orientation90°
Maximum Operating Pressure150 PSI
ServiceabilityServiceable
Stroke Lenght2.25 in.
Stroke TypeStandard Stroke
Clevis YokeIncluded
Service Chamber Joint TypeSingle Clamp Band
Push Rod Thread Size5/8-18 UNF-2A
Service Port Thread Size3/8-18 NPTF
Clevis Mounting TypeThreaded
Chamber TypeService Brake Chamber
Push Rod Length10.20 in.
Outside Diameter (O.D.)7 1/2"
