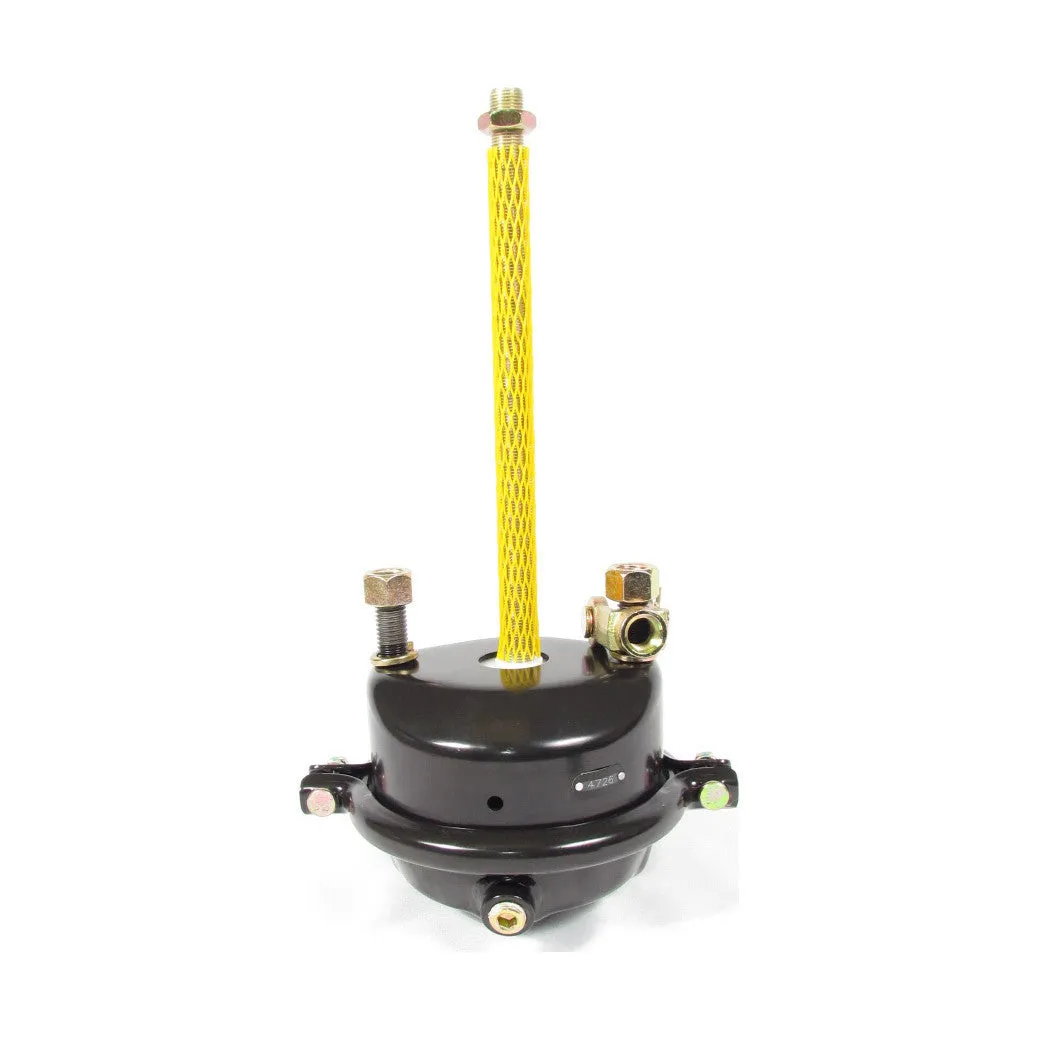

BRAKE CHAMBER TYPE 20 F288803

Manufacturer: FORTPRO
SKU: F224726
i h h
Products specifications
Chamber TypeService Brake Chamber
Clevis Mounting TypeThreaded
Service Port Thread Size3/8-18 NPTF
Push Rod Thread Size5/8-18 UNF-2A
Service Chamber Joint TypeSingle Clamp Band
Clevis YokeIncluded
Stroke TypeStandard Stroke
Stroke Lenght2.25 in.
ServiceabilityServiceable
Maximum Operating Pressure150 PSI
Port Orientation90°
Alternate Part NameBrake Canister / Brake Can / Air Brake Canister
Application TypeHeavy Duty Trucks, Semi-Trucks
ModelT20, T-20, 20
OEM Part Number288803
Part TypeAir Brake Chamber
Brake System CompatibilityS-Cam
Mounting Bolt Thread Size5/8-18 UNF-2A
Mounting Bolt Length1.44 in. (36.6 MM)
Brake TypeDrum
Chamber StyleSingle Diaphragm
Push Rod Length10.50 in.
Outside Diameter (O.D.)7 in.
