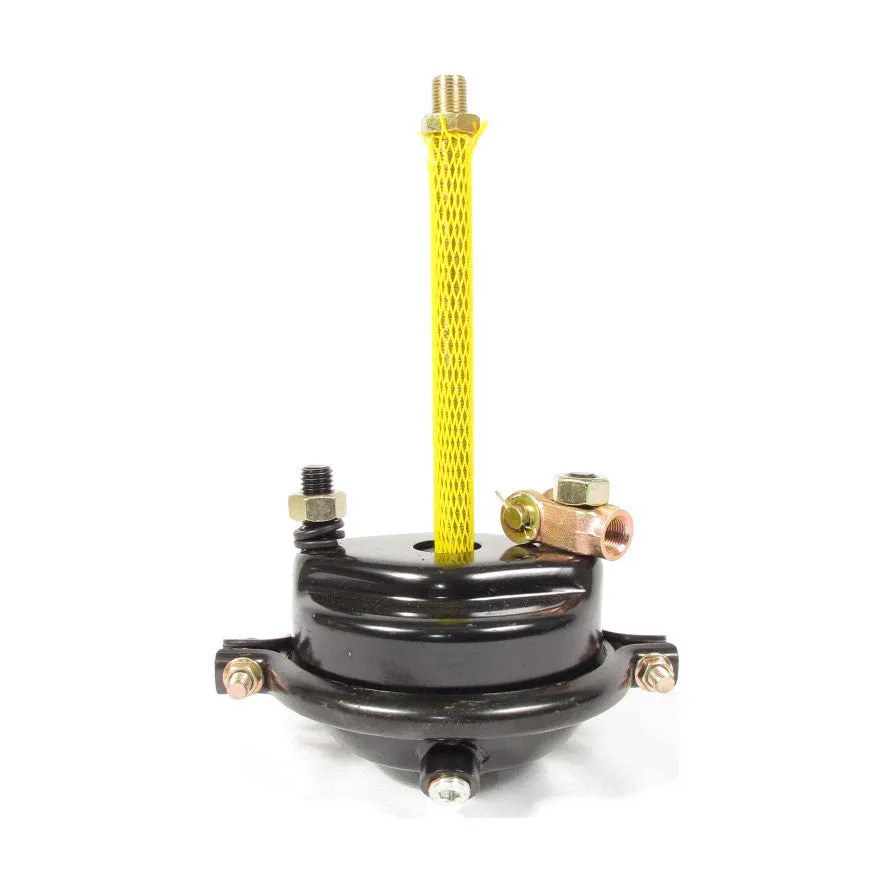

| Part Type | Air Brake Chamber |
| Alternate Part Name | Brake Canister / Brake Can / Air Brake Canister |
| Model | T16, T-Service 16 |
| OEM Part Number | 288799 |
| Application Type | Heavy Duty Trucks, Semi-Trucks |
| Brake System Compatibility | S-Cam |
| Brake Type | Drum |
| Chamber Style | Single Diaphragm |
| Chamber Type | Service Brake Chamber |
| Clevis Mounting Type | Threaded |
| Mounting Bolt Length | 1.50 in. (38.1 MM) |
| Mounting Bolt Thread Size | 7/16-20 UNF-2A |
| Outside Diameter (O.D.) | 4.59 in. |
| Push Rod Length | 9 in. |
| Push Rod Thread Size | 1/2-20 UNF-2A |
| Service Chamber Joint Type | Single Clamp Band |
| Service Port Thread Size | 3/8-18 NPTF |
| Clevis Yoke | Included |
| Maximum Operating Pressure | 150 PSI |
| Port Orientation | 90° |
| Serviceability | Serviceable |
| Stroke Lenght | 2.25 in. |
| Stroke Type | Standard Stroke |
| Cross References | 16S, 179.SC16, 179SC16, 288799, 30015, 800823, E-16S, E-BC16S, E16S, EBC16S, R870016, SC16 |
