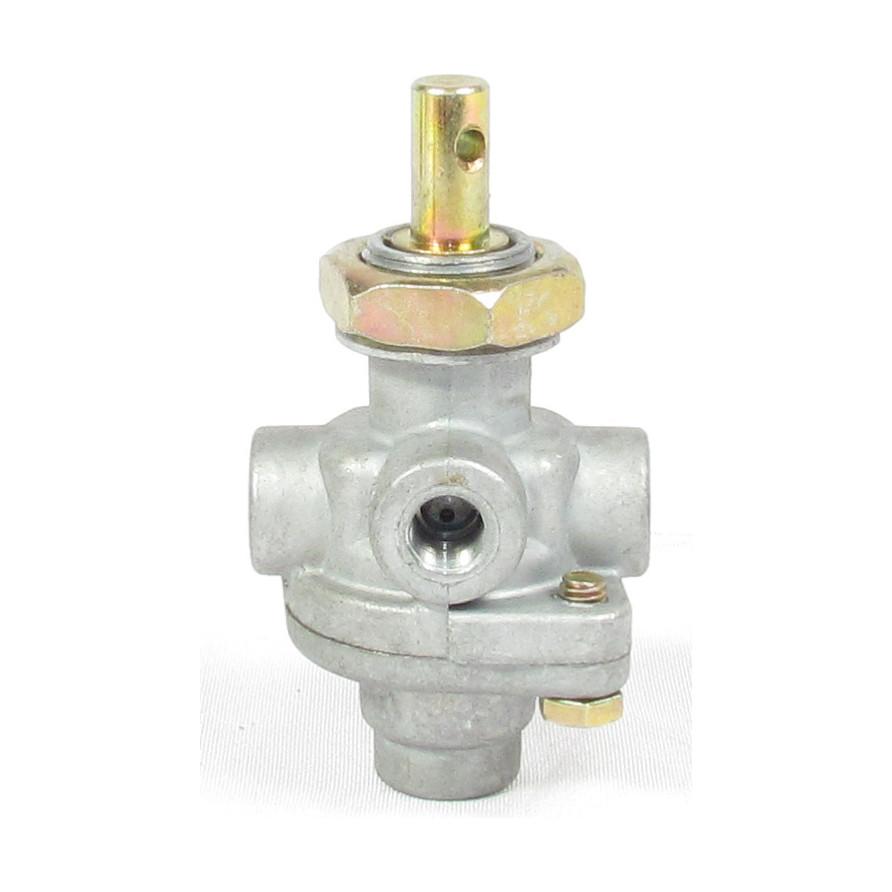

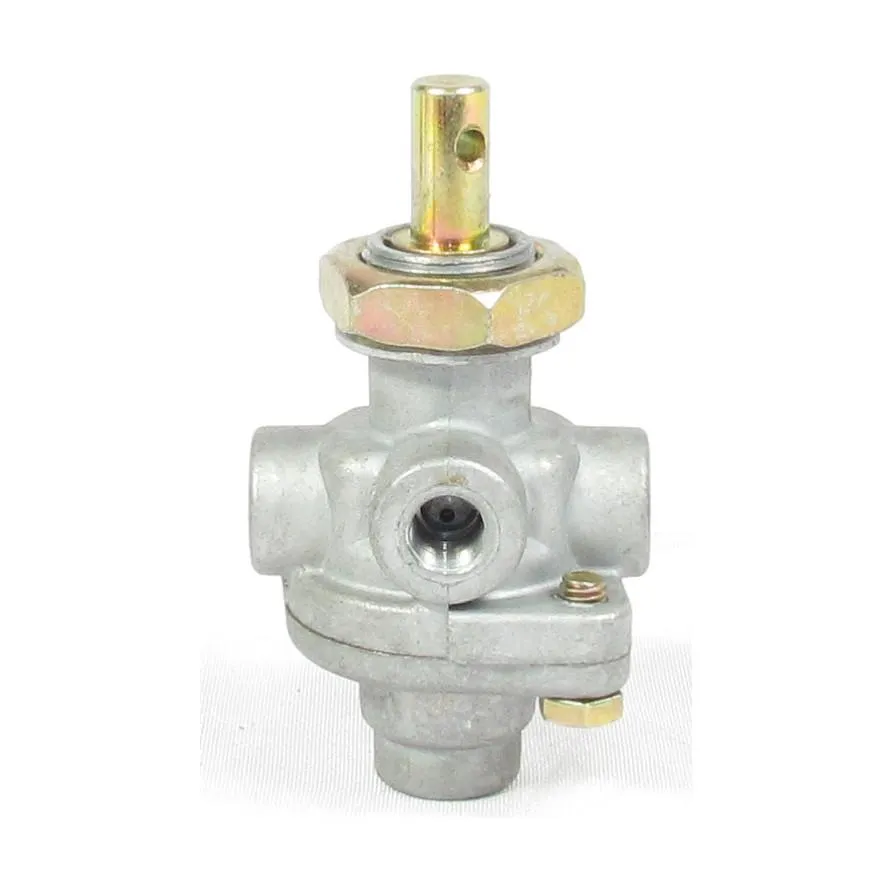

PP-1 PUSH PULL VALVE F276566

Name: PP-1 PUSH PULL VALVE F276566
Brand: FORTPRO
SKU: F224616
Availability: OutOfStock

Manufacturer: FORTPRO

SKU: F224616

Price:

Qty:

i h h

Products specifications

Basic Part Information
Product Line	Brakes
Category Name	Air Brake Valves
Part Type	Push Pull Valve
Alternate Part Name	Control Valve
Model	PP-1
OEM Part Number	276566
Application/Fitment Attributes
Application Type	Heavy Duty Trucks, Semi-Trucks
Delivery Port Qty	2
Delivery Port Size	1/8-27 NPT
Exhaust Port Size	1/8-27 NPT
Mounting Holes Size	7/8-20 UNEF-2A
Supply Port Size	1/8-27 NPT
Dimensional/Physical Attributes
Material	Die-cast Zinc
Knob Included	No
Mounting Nut Included	Yes
Plunger / Button Height	1.16 in.
Plunger Diameter	Ø .374 in.
Technical/Performance Attributes
Automatic Release Pressure	20 PSI
Maximum Operating Temperature	200 deg. F (93 deg. C)
Minimum Operating Temperature	-40 deg. F (-40 deg. C)
Packaging & Logistics Attributes
Net Weight	0.66 LBS
Special Attributes
Cross References	170276566, 276566, 276566N, 276566RX, 745-276566N, 745276566N, AV276566, EBN276566N, EM35920, FLTBV566, KN20021, KN20021N, LPP-3592, OR276566, OR276566X, R955276566N
Intended Application	Air brake systems for trucks and commercial vehicles. This is a manually operated push-pull valve, allowing on-off control of air flow with an exhaust function.Used in applications where reliable air control is required, such as parking and auxiliary brake systems on trucks and trailers.
