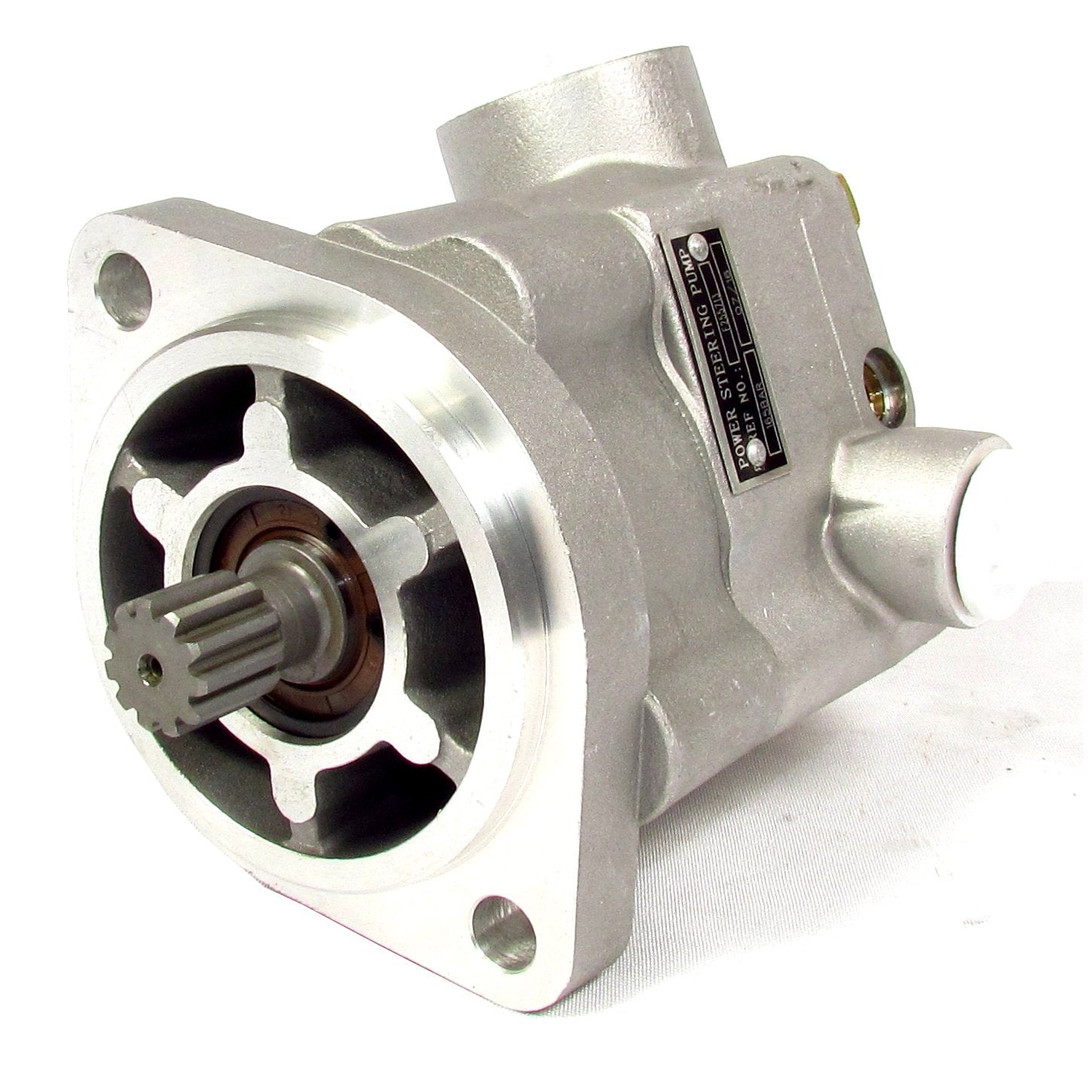

POWER STEERING PUMP F2107544,542-0320-10

Name: POWER STEERING PUMP F2107544,542-0320-10
Brand: FORTPRO
SKU: F255713
Availability: OutOfStock

Manufacturer: FORTPRO

SKU: F255713

Price:

Qty:

i h h

Products specifications

Basic Part Information
Product Line	Steering Components
Category Name	Power Steering Pump
Part Type	Steering Pump
Alternate Part Name	Hydraulic Power Steering Pump
OEM Part Number	2107544
Application/Fitment Attributes
Application Type	Semi-Trucks, Heavy Duty Trucks
Inlet Port Thread Size	1-1/16-12 UN-2B
Mounting Type	2 Bolt Flange SAE-A SIZE
Outlet Port Thread Size	3/4-16 UNF-2B
Dimensional/Physical Attributes
Material	Cast Iron
Technical/Performance Attributes
Max Operating Speed	3600 rpm
Max Relief Pressure	165 bar
Nominal Flow Rate	4 US gpm @ 1200 rpm
Pump Displacement	21.0 cm³/rev
Shaft Rotation Direction	Right-Hand
Shaft Type	11-Tooth Spline
Packaging & Logistics Attributes
Net Weight	6.00 lb.
Special Attributes
Cross References	14-12358-000, 14-12657-001, 14-12657-002, 14-12657-003, 1412358000, 1412657001, 1412657002, 1412657003, 2005337-C91, 2005337-C92, 2005337C91, 2005337C92, 2107544, 3938123, 465.LUK.05, 542-0320-10, 542032010, 14-12358-000, 14-12657-001, 14-12657-002, 14-12657-003, 1412358000, 1412657001, 1412657002, 1412657003, 2005337-C91, 2005337-C92, 2005337C91, 2005337C92, 2107544, 3938123, 465.LUK.05, 542-0320-10, 542032010
Intended Application	Compatible with Cummins I-6 Engine., Compatible with Cummins I-6 Engine.
