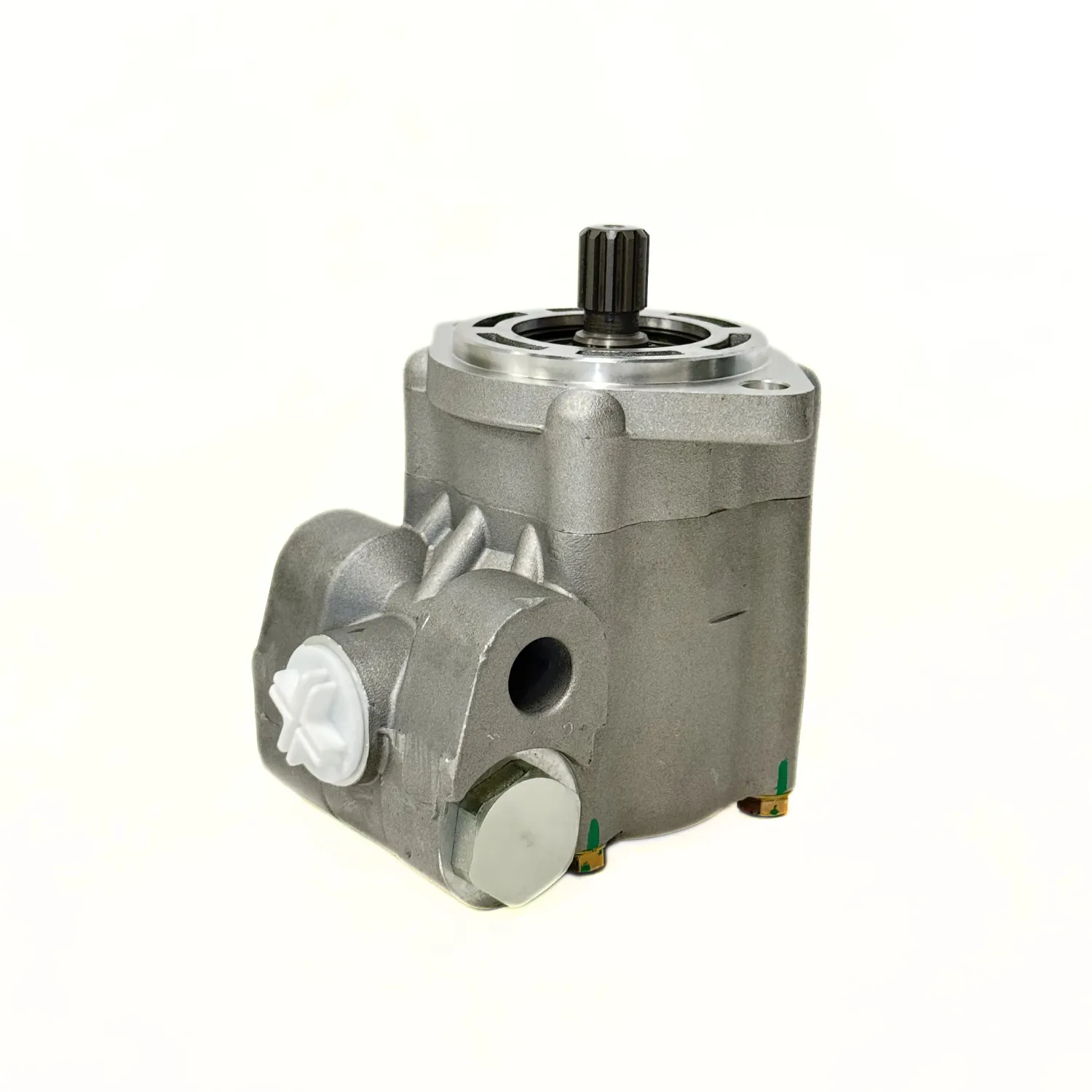

POWER STEERING PUMP PS251615L102 TRW 14-12485-000
Products specifications
| Product Line | Steering Components |
| Category Name | Power Steering Pump |
| Part Type | Steering Pump |
| Alternate Part Name | Hydraulic Power Steering Pump |
| Model | PS |
| OEM Part Number | PS251615L102 |
| Inlet Port Thread Size | 1-1/16-12 UN |
| Mounting Type | 2 Bolt Flange SAE-A SIZE |
| Outlet Port Thread Size | 3/4-16 UNF-2B |
| Material | Iron |
| Max Operating Speed | 3600 rpm |
| Max Relief Pressure | 150 bar |
| Nominal Flow Rate | 16.0 L/min |
| Pump Displacement | 25.0 cm³/rev |
| Shaft Rotation Direction | Left-Hand |
| Shaft Type | 11 Tooth 16/32 Spline |
| Package Length | 6.50 in. |
| Package Width | 9.00in. |
| Package Height | 6.50 in. |
| Net Weight | 8.30 lb. |
| Cross References | 1412485000, 465.TRW.01, PS251615L102, RP221615X |
| Intended Application | Compatible with Freightliner FLD120 with Detroit 12.7L engine. |
Products specifications
| Product Line | Steering Components |
| Category Name | Power Steering Pump |
| Part Type | Steering Pump |
| Alternate Part Name | Hydraulic Power Steering Pump |
| Model | PS |
| OEM Part Number | PS251615L102 |
| Inlet Port Thread Size | 1-1/16-12 UN |
| Mounting Type | 2 Bolt Flange SAE-A SIZE |
| Outlet Port Thread Size | 3/4-16 UNF-2B |
| Material | Iron |
| Max Operating Speed | 3600 rpm |
| Max Relief Pressure | 150 bar |
| Nominal Flow Rate | 16.0 L/min |
| Pump Displacement | 25.0 cm³/rev |
| Shaft Rotation Direction | Left-Hand |
| Shaft Type | 11 Tooth 16/32 Spline |
| Package Length | 6.50 in. |
| Package Width | 9.00in. |
| Package Height | 6.50 in. |
| Net Weight | 8.30 lb. |
| Cross References | 1412485000, 465.TRW.01, PS251615L102, RP221615X |
| Intended Application | Compatible with Freightliner FLD120 with Detroit 12.7L engine. |
