| Product Line | Suspension |
| Category Name | Chassis & Suspension |

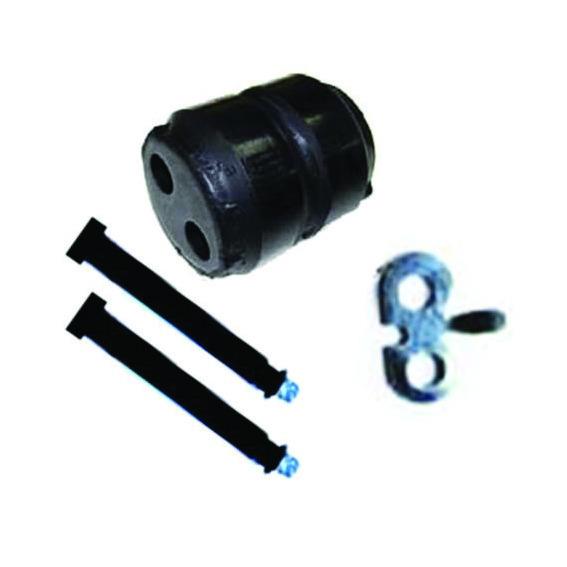

| Part Type | Equalizer Bushing Assembly |
| Alternate Part Name | Equalizer Rebushing Kit, Equalizer Bushing Assembly |
| OEM Part Number | E-2003 |
| Application Type | Semi-Trucks, Heavy Duty Trucks |
| Outside Diameter (O.D.) | 3-3/8 in. |
| Material | Rubber |
| Distance Between Bolt Holes | 1-3/8 in. |
| Inside Diameter (ID) | 3/4 in. |
| Overall Length | 3-15/16 in. |
| Net Weight | 4.14 lb. |
| Cross References | 25756, 334341, 382003, 66905, E-2003, E2003, H1075, H77ABW, M1451, M15083, R302003, REY0751000, SP1009, TRK5541, 334-341 |
| Intended Application | - Compatible with Hutchens Four Spring Suspension H/CH 7600/9600 7700/9700 TWS, 54-1/2" 57-1/2" Axle Spacing, Hutchens Four Spring Suspension H/CH 7600/9600, 49" Axle Spacing, Hutchens Four Spring Suspension H/CH 7600/9600 7700/9700 TWS, 61" 81" Axle Spacing, Hutchens Four Spring Suspension H/CH 7700/9700 TWS, 97"-121" Axle Spacing, Hutchens Four Spring Suspension H/CH 7700US/9700US, Underslung, Hutchens Four Spring Suspension H/CH 7700/9700, 42-1/2", 44", 49", 50" Axle Spacing, Great Dane Model "H".
- Always compare with your OEM part number prior to purchase to confirm full compatibility.
|
| BOM | - (1) Equalizer Bushing
- (2) Hex Bolt 5/8-14 UNF x 6 in. Long
- (2) Lock Hex Nut 5/8-14 UNF
- (1) Lock Tab Washer
|
