| Product Line | Suspension |
| Category Name | Chassis & Suspension |

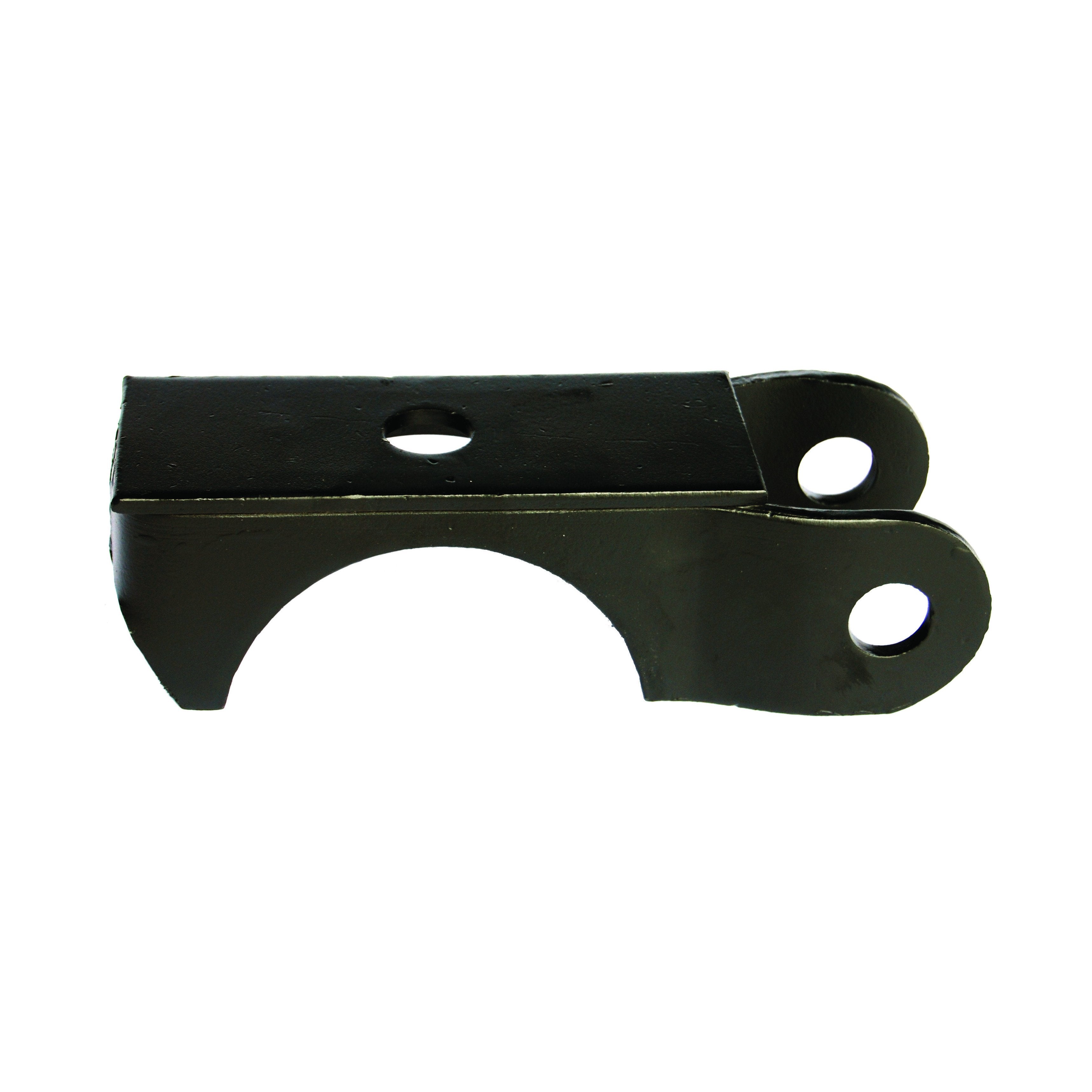

| Part Type | Axle Seat |
| Alternate Part Name | Suspension Seat for Heavy Duty Leaf Spring Packs, Suspension Coil Spring Seat, Spring Seat, Axle Seat |
| OEM Part Number | 19360-01 |
| Application Type | Trailers & Semi-Trailers |
| Axle Type | Round Axle |
| Compatible Axle Diameter | 5 in. |
| Mounting Hole Size | 1 in. |
| Material | High-Strength Steel |
| Distance Between Bolt Holes | 3 in. |
| Height | 3 in. |
| Seat Height | 3/4 in. |
| Width | 3 in. |
| Net Weight | 6.39 lb. |
| Cross References | 19360-01, 1936001, 338-409, 338409, 70501, E-2908, E2908, M2868, M8284, R302908 |
| Intended Application | - Compatible with Hutchens Four Spring Suspension H/CH Series 7600, 9600, 7700, 9700, 7700US & 9700US ; configurations include TWS (Twin Wheel Suspension) and Underslung ; supports axle spacing: 42.5 in., 44 in., 49 in., 50 in., 54.5 in., 57.5 in., 61 in., 81 in., and 97 in.
- Always compare with your OEM part number prior to purchase to confirm full compatibility.
|
