| Product Line | Suspension |
| Category Name | Air Springs and Bags |
| Part Type | Cabin Air Spring |
| Alternate Part Name | Super-Cushion Sleeve Air Spring, Cab Suspension Air Spring, Tapered Sleeve Air Spring, Cab Air Bag |
| OEM Part Number | W02-358-7017 |
| Application Type | Heavy Duty Trucks, Semi-Trucks |
| VMRS Code | 016-008-000 |
| Material | Reinforced Rubber |

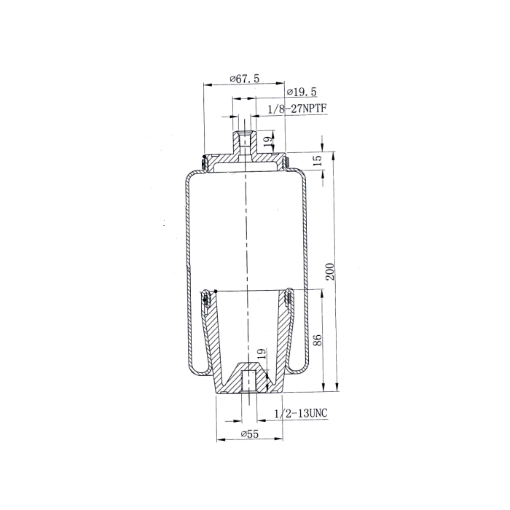

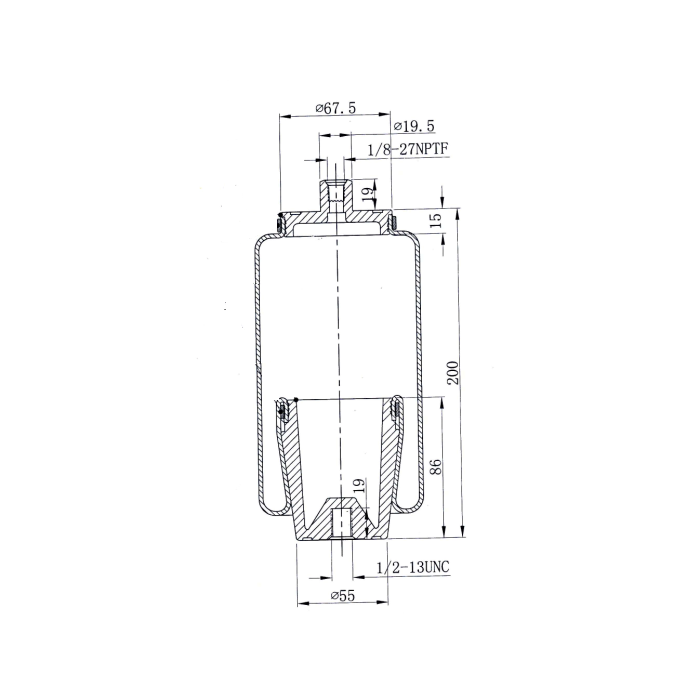

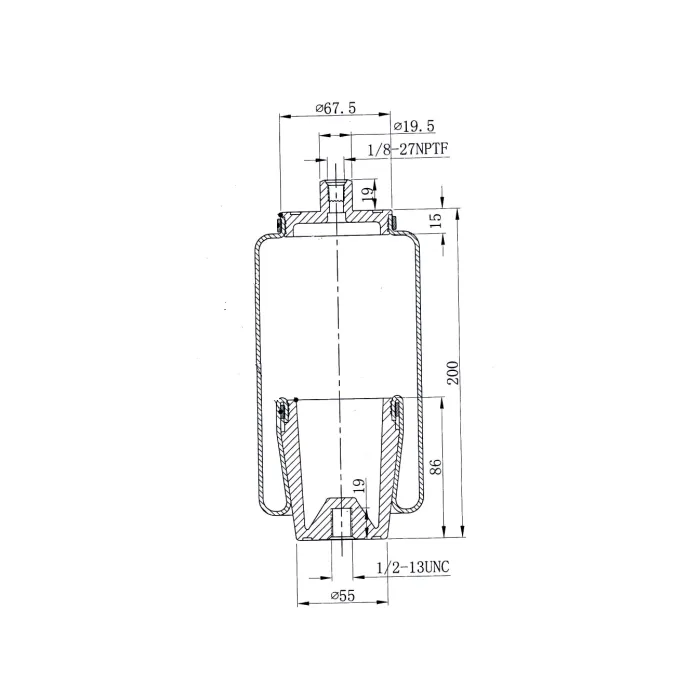

| Air Inlet Inside Thread | 1/8-27 NPTF |
| Bottom Plate Alignment | Parallel |
| Bottom Plate Diameter | 2.12 in. |
| Bottom Plate Inside Thread | 1/2-13 UNC |
| Mounting Hole Configuration - Bottom | 1 |
| Mounting Hole Configuration - Top | 1 |
| Piston Height | 3.38 in. |
| Top Plate Diameter | 2.65 in. |
| Air Spring Type | Sleeve |
| Collapsed Length | 4.00 in. |
| Extended Length | 15.18 in. |
| Net Weight | 1.09 lb. |
| Cross References | 1S5055, 227QS38, 3537017, ABSZ707017, FAS-4909, FAS4909, FS7017, W023587017, 7017, W02-358-7017 |
| Intended Application | - Compatible with Cabin Suspension on Mack Trucks.
- Always compare with your OEM part number prior to purchase to confirm full compatibility.
|
