| Product Line | Suspension |
| Category Name | Air Springs and Bags |

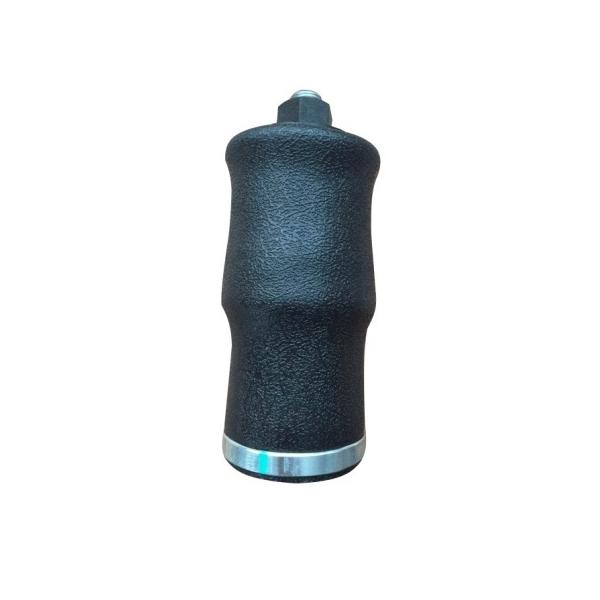

| Part Type | Cabin Air Spring |
| Alternate Part Name | Super-Cushion Sleeve Air Spring, Cab Suspension Air Spring, Tapered Sleeve Air Spring, Cab Air Bag |
| OEM Part Number | 1S5-186 |
| Application Type | Heavy Duty Trucks, Semi-Trucks |
| VMRS | 016-008-000 |
| Material | Reinforced Rubber |
| Air Inlet Inside Thread | 3/8-16 UNC |
| Bottom Plate Alignment | Parallel |
| Bottom Plate Diameter | 2.11 in. |
| Bottom Plate Inside Thread | 1/8-27 NPTF |
| Bottom Plate Outside Thread | 3/4-16 UNF |
| Mounting Hole Configuration - Bottom | 1 |
| Mounting Hole Configuration - Top | 1 |
| Piston Height | 3.49 in. |
| Top Plate Diameter | 3.10 in. |
| Air Spring Type | Sleeve |
| Collapsed Length | 3.10 in. |
| Extended Length | 2.11 in. |
| Net Weight | 1.14 lb. |
| Cross References | 1S5186, 2902454, 2903200, 3537036, 569CT68162, 68162, 7036, 804266, ABSZ707036, ABSZ707036I, FS7036, SC29Y036, W023587036, 1S5-186, MAF7036, W02-358-7036 |
| Intended Application | - Compatible with Peterbilt Trucks, used in Uni-Built Highway Cab/Sleeper cabs from 1993 onwards and in the Uni-Built Front Support Spring front suspension system.
- Always compare with your OEM part number prior to purchase to confirm full compatibility.
|
