| Product Line | Driveline & Axles, Driveline & Axles |
| Category Name | Wheel Studs, inner cap nuts and nuts for wheels, Wheel Studs, inner cap nuts and nuts for wheels |

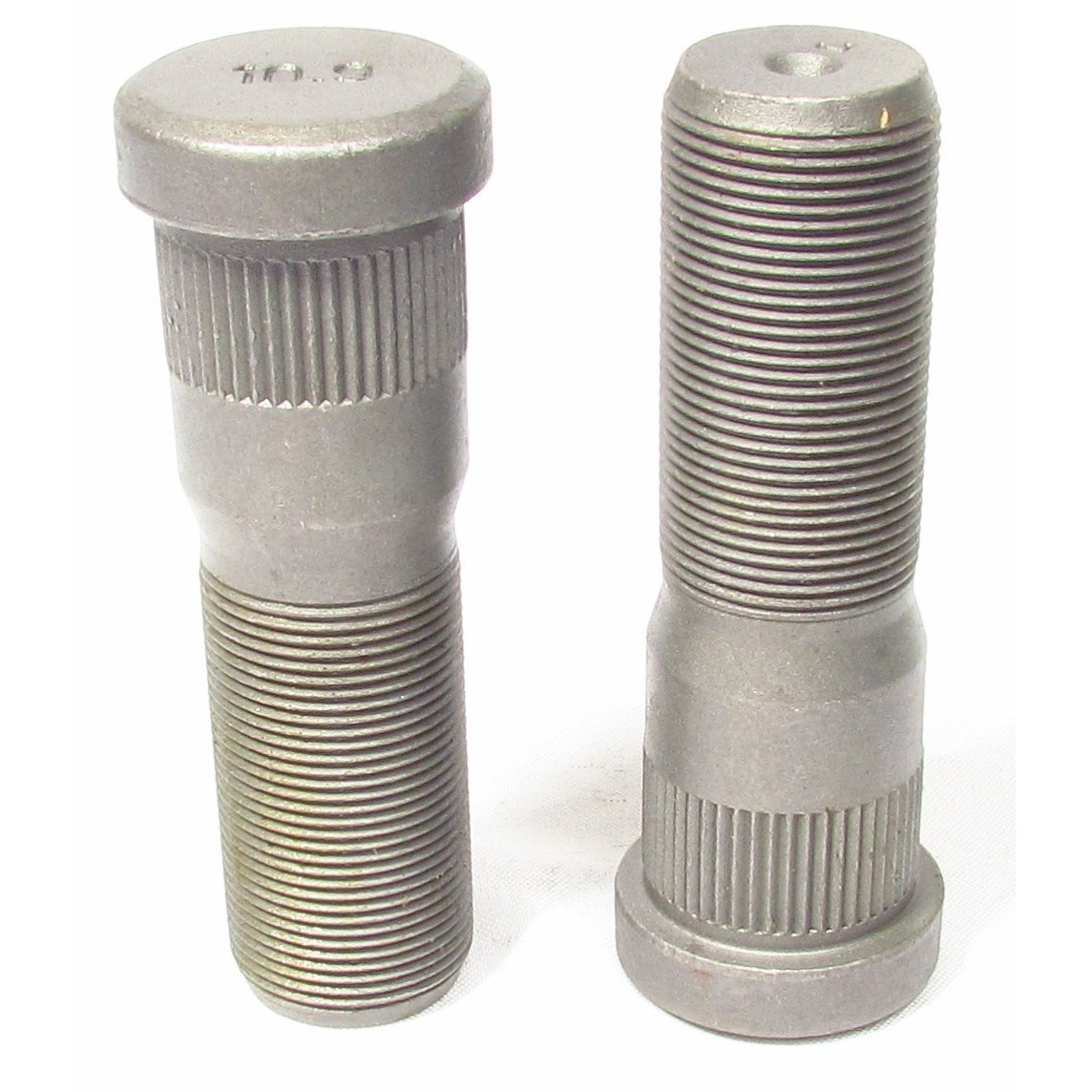

| Part Type | Wheel Stud, Wheel Stud |
| Alternate Part Name | Left Hand Wheel Stud, Steer Axle Wheel Stud, Serrated Drive Wheel Studs, Left Hand Wheel Stud, Steer Axle Wheel Stud, Serrated Drive Wheel Studs |
| OEM Part Number | E-5982L, E-5982L |
| Application Type | Heavy-Duty Trucks, Semi-Trucks, Heavy-Duty Trucks, Semi-Trucks |
| Stud Type | Headed, Headed |
| Material | Carbon Alloy Steel, Carbon Alloy Steel |
| Body Diameter (G) | 1.220 in., 1.220 in. |
| Body Length (E) | 1.220 in., 1.220 in. |
| Head Diameter (F) | 1.500 in., 1.500 in. |
| Head Style | Round, Round |
| Head Thickness | 0.360 in., 0.360 in. |
| Length from Under Head (B) | 3-3/4 in., 3-3/4 in. |
| Serration | Serrated, Serrated |
| Serration Diameter | 1.252 in., 1.252 in. |
| Serration Length (D) | 0.560 in., 0.560 in. |
| Thread (A) | 1-1/8 in.-16, 1-1/8 in.-16 |
| Thread Diameter (H) | 1.125 in., 1.125 in. |
| Thread Direction | LH (Left Hand), LH (Left Hand) |
| Thread Length (C) | 2.250 in., 2.250 in. |
| Thread Size | 1-1/8 in.-16 UN-2A, 1-1/8 in.-16 UN-2A |
| Threads | 16 per inch, 16 per inch |
| DIN / ISO Grade | 10.9 (metric equivalent of Grade 8), 10.9 (metric equivalent of Grade 8) |
| Net Weight | 1.27 lb., 1.27 lb. |
| Cross References | 02-00771, 0200771, 0201484, 131618L, 131618R, 1541301L, 1541301R, 2016193L, 2016193R, 501097L, 501097R, E5982L, E5982R, K233B359L, K233B359R, M2431, PAC15L, PAC15R, R005982L, R005982R, TP4111L, TP4111R, X2134, E-5982-L |
| Intended Application | - Front Wheel Stud for aluminum disc wheels
|
