| Product Line | Pump & Motors |
| Category Name | Hydraulic Pumps |

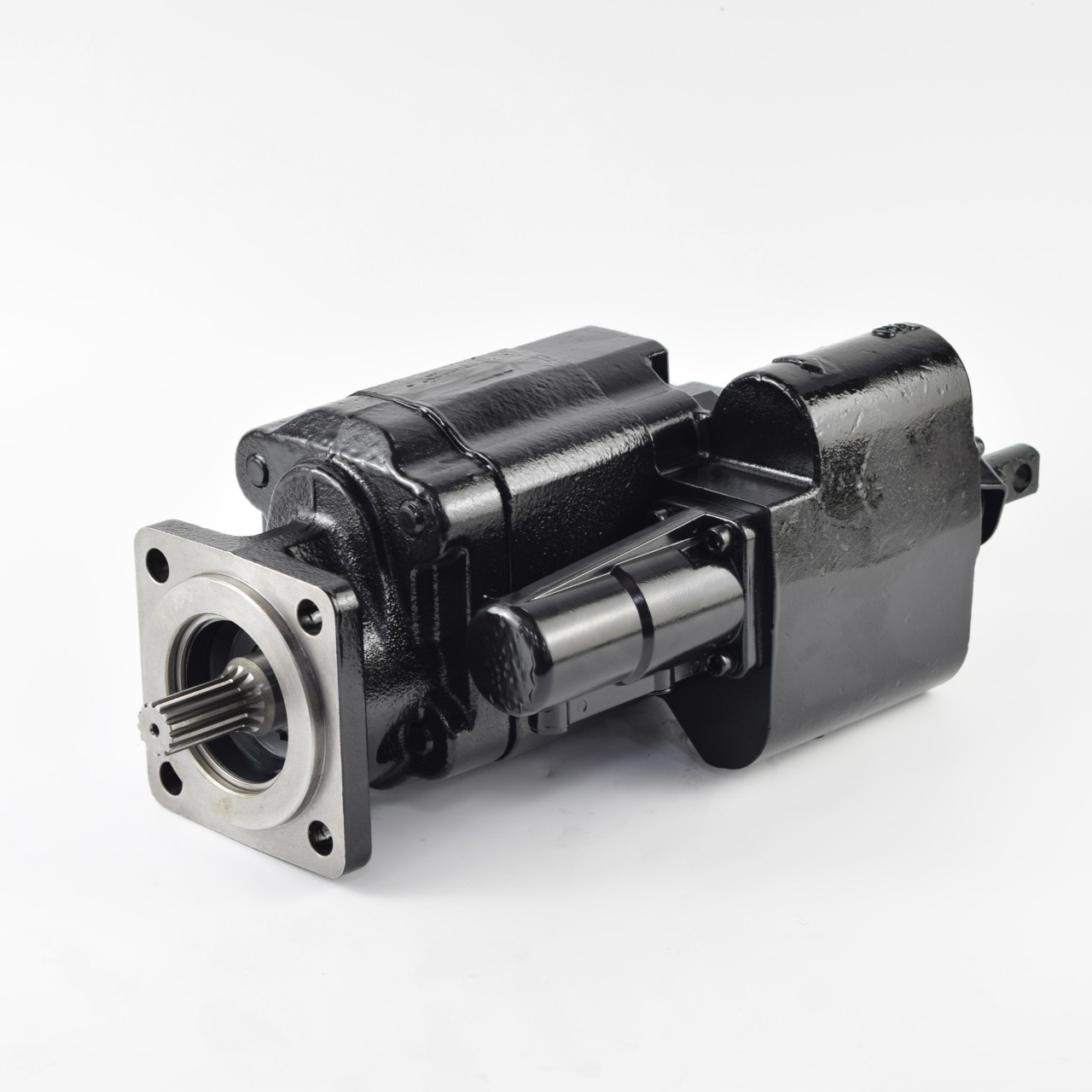

| Part Type | Dump Pump |
| Alternate Part Name | Dump Pump, Hydraulic Dump Pump |
| Model | C102 |
| OEM Part Number | C102D251 |
| Application Type | Dump Trucks, Trailers |
| Cylinder Port | 1 in. |
| Inlet Port Size | 1-1/4 NPT |
| Mounting Type | Direct |
| Outlet Port Thread Size | 1 NPT |
| Port Location | Rear Ports |
| System Installation | 2 or 3 line circuits |
| Material | Cast Iron |
| Gear Width | 2-1/2 in. |
| Overall Length | 16-1/8 in. |
| Pump Type | Gear, Fixed |
| Shaft Diameter | 7/8 in. |
| Circuit Path | Open |
| Hydraulic Fluid Type | Standard Hydraulic Fluids, Phosphate-ester |
| Maximum Fluid Temperature | 80 deg. C, 180 deg. F |
| Maximum Operating Pressure | 2500 psi (172 bar) |
| Maximum Operating Speed | 2400 rpm |
| Minimum Fluid Temperature | 0 deg. F, -20 deg. C |
| Nominal Flow Rate | 27.6 GPM @ 1000 rpm up 49 GPM @ 1800 rpm |
| Pump Displacement | 105 cm3/rev (6.4 in3/rev) |
| Shaft Rotation Direction | Counterclockwise, Bi-Rotational, Clockwise |
| Shift Type | Air |
| Net Weight | 70 lb. |
| Cross References | 250112, 314-9325-229, 3149325229, 761.C102D251, 761C102D251, BPC1010DMCCW, C102, C102D-25-1, C102D251, DC102D-25-LMS, DC102D25LMS, DMD-25-Z-L-MS-25, DMD25ZLMS25, E2XL272BPRL, E3XL272BPRL, MNE2XL272BPRL, MNE3XL272BPRL, VPC-102-25-Z-LMS-25, VPC10225ZLMS25, XL272BPRL |
| Intended Application | - Compatible with dump trucks and dump trailers (vocational/municipal) equipped with a direct-mount PTO/power take-off to operate hydraulic hopper lifting systems, using a single-displacement gear pump and rear-ported NPT ports. It supports rotation direction selection (CW/CCW/bi-rotational) and integrates into 2-line or 3-line circuits for single-acting cylinders, depending on the system architecture.
- Always compare with your OEM part number prior to purchase to confirm full compatibility.
|
