| Product Line | Pump & Motors |
| Category Name | Hydraulic Pumps |

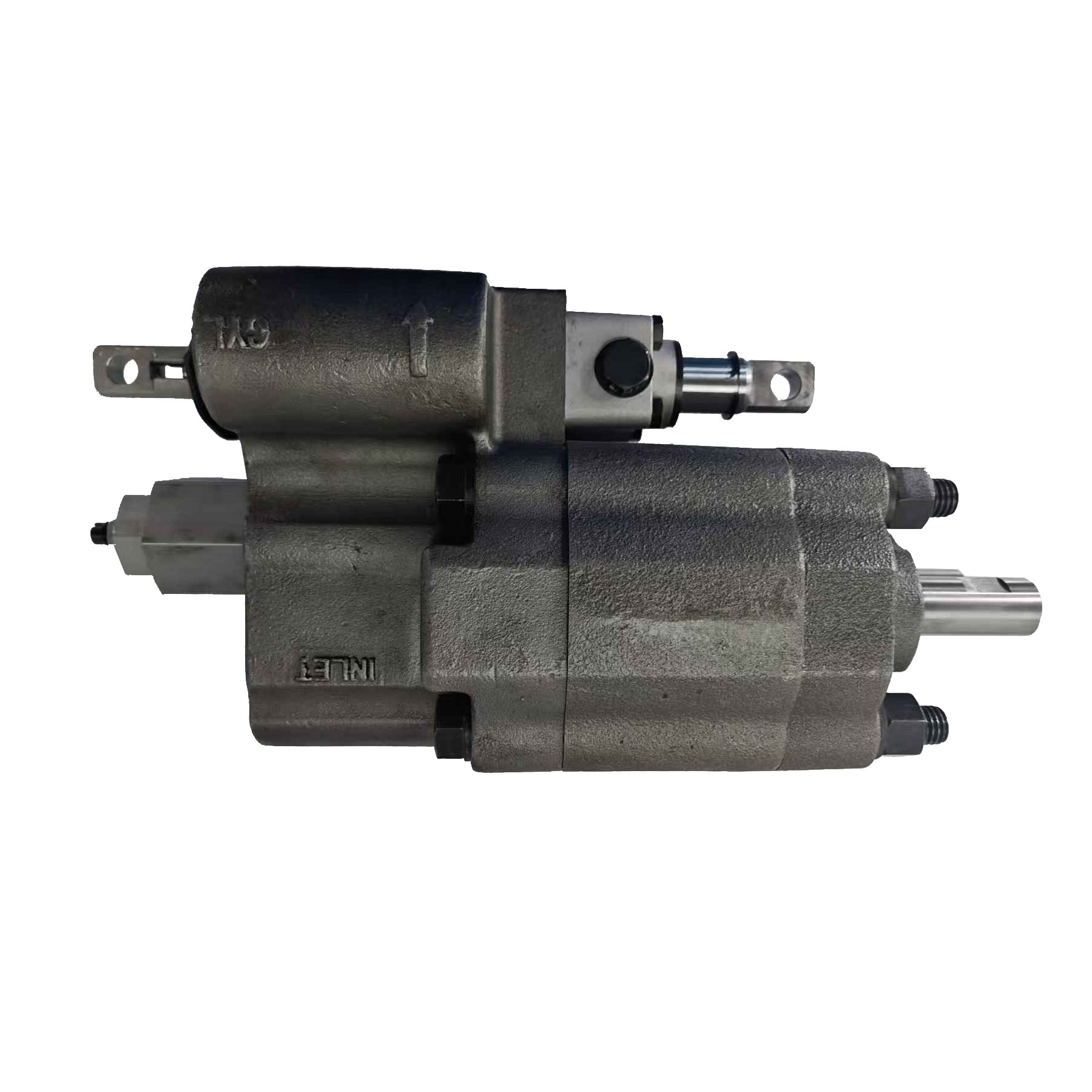

| Part Type | Dump Pump |
| Alternate Part Name | Dump Pump, Hydraulic Dump Pump |
| Model | C101 |
| OEM Part Number | C101D25 |
| Application Type | Dump Trucks, Trailers |
| Cylinder Port | 1 in. |
| Inlet Port Size | 1-1/4 NPT |
| Mounting Type | Remote |
| Outlet Port Thread Size | 1 NPT |
| Port Location | Rear Ports |
| System Installation | 2 or 3 line circuits |
| Material | Cast Iron |
| Gear Width | 2-1/2 in. |
| Overall Length | 16-1/8 in. |
| Pump Type | Gear, Fixed |
| Shaft Diameter | 1 in. |
| Circuit Path | Open |
| Hydraulic Fluid Type | Standard Hydraulic Fluids, Phosphate-ester |
| Maximum Fluid Temperature | 80 deg. C, 180 deg. F |
| Maximum Operating Pressure | 2500 psi (172 bar) |
| Maximum Operating Speed | 2400 rpm |
| Minimum Fluid Temperature | 0 deg. F, -20 deg. C |
| Nominal Flow Rate | 27.6 GPM @ 1000 rpm up 49 GPM @ 1800 rpm |
| Pump Displacement | 105 cm3/rev (6.4 in3/rev) |
| Shaft Rotation Direction | Counterclockwise, Bi-Rotational, Clockwise |
| Shift Type | Air |
| Net Weight | 70 lb. |
| Cross References | 3149310226, C101, C101D-25, C101D25, E2XL12701RPRB, E2XL271RPRB, VPC10125ZMS25 |
| Intended Application | - Compatible with hydraulic dump body/underbody hoist systems on heavy-duty trucks and trailers using a remote PTO. Remote mount configuration with SAE 4-bolt type B flange (4-Bolt B/Remote).
- Always compare with your OEM part number prior to purchase to confirm full compatibility.
|
