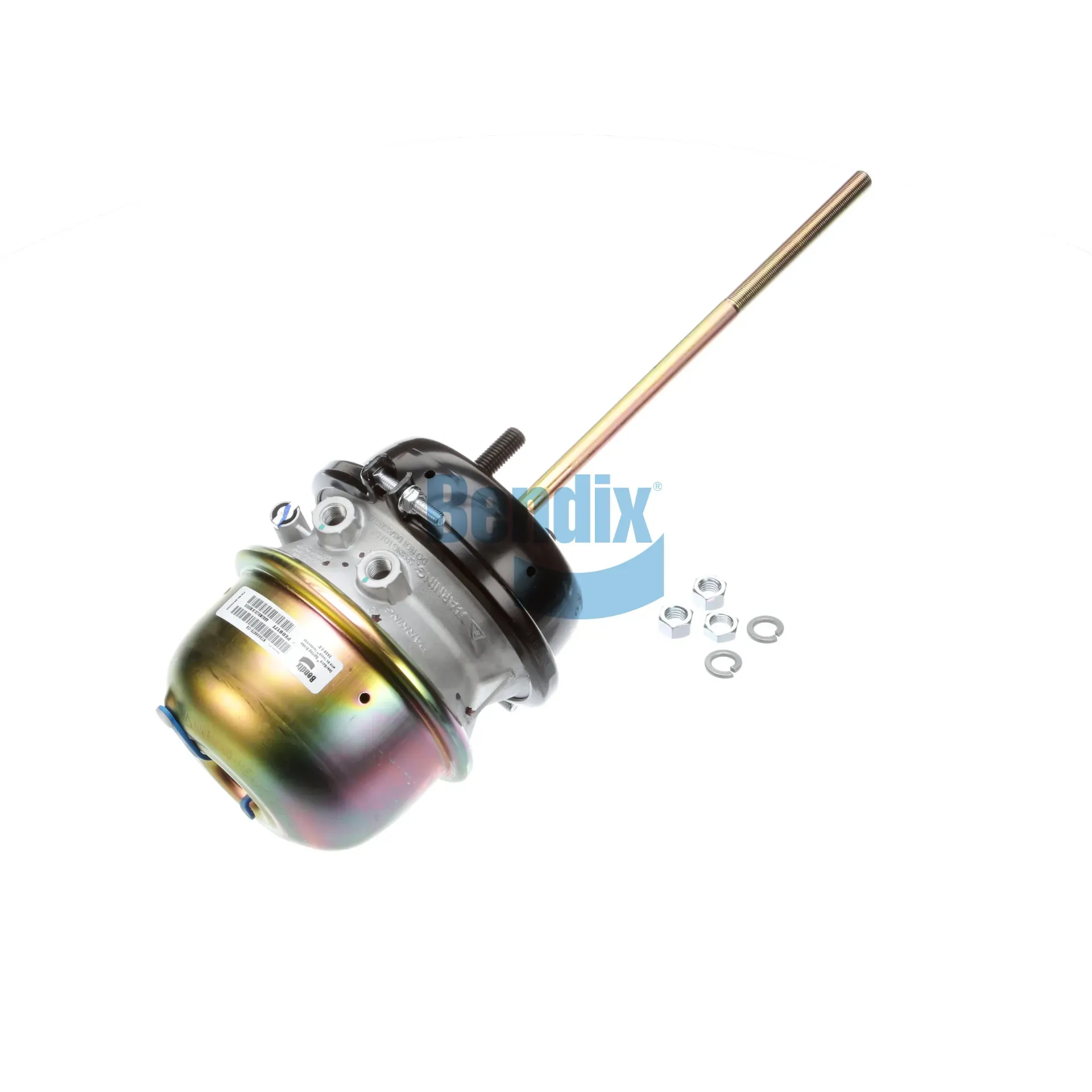

Bendix 3030 Standard Stroke S-Cam Spring Brake Chamber with 12" Push Rod

Manufacturer: BENDIX
Be the first to review this product
SKU: 745-NT3030STD120DS
Price:
i h h
Products specifications
Basic Part Information
Product LineBrakes
Category NameBrake Chambers
Part TypeSpring Brake (S-Cam)
Alternate Part Name30/30 Brake Chamber, S-Cam 30/30 Double Chamber Spring Brake, Spring Brake (S-Cam)
OEM Part NumberNT3030STD-120DS
Application/Fitment Attributes
Application TypeHeavy Duty Trucks, Semi-Trucks, Semi-Trailers, Trailers, Buses
Chamber StyleDouble Diaphragm
Chamber TypeT30/30
Mounting Stud Center-to-Center Spacing4.75 in. (120.7 mm)
Mounting Stud Length1.50 in. (38.1 mm)
Parking Port 123/8-18 NPTF
Port Angle0 Deg.
Push Rod Length12 in.
Service Chamber Joint TypeDouble Clamp Band
Service Port 113/8-18 NPTF
Technical/Performance Attributes
Maximum Operating Temperature175 °F (79 °C)
Minimum Operating Temperature-40 °F (-40 °C)
Stroke Length2.50 in. (63.5 mm)
Packaging & Logistics Attributes
Net Weight19.09 lb.
Special Attributes
Cross References179.SB3030S, 179SB3030S, NT3030STD-120DS, NT3030STD120DS
Intended Application
  • Bendix® EnduraSure® T30/30 standard stroke (2.50) combination spring brake chamber with a 12.0 threaded long stem for S-Cam cam-operated drum brake systems on drive and trailer axles of Class 7 and 8 commercial vehicles. Designed for applications requiring adaptability through custom stem cutting to match specific suspension geometry or automatic adjuster specifications.
  • Compatible With: S-Cam cam-operated drum brake systems on Meritor®, Dana Spicer®, Hendrickson®, and Eaton® axles; compatible with Bendix® Versajust®, Haldex®, and Gunite® automatic slack adjusters; direct replacement for long-stem T30/30 chambers from brands such as MGM® (3430001), Haldex® (GC3030L), Wabco® Anchorlok, and VMRS code 013-004-027.
  • Always compare with your OEM part number prior to purchase to confirm full compatibility.
