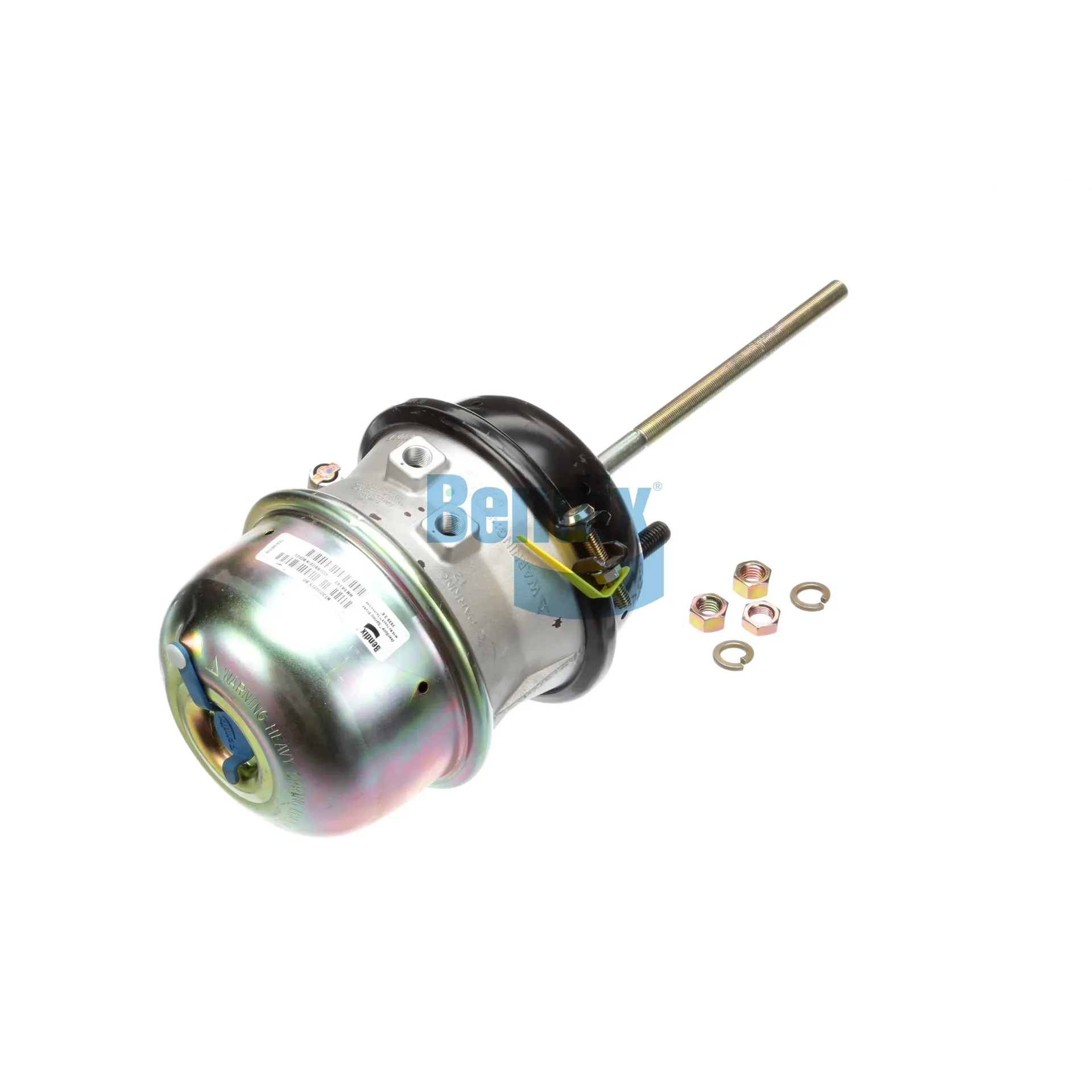

Bendix Brake Chamber 3030 Combo Long Stroke W/O CLEVIS

Name: Bendix Brake Chamber 3030 Combo Long Stroke W/O CLEVIS
Brand: BENDIX
SKU: 745-NT3030ELS80DS
Availability: OutOfStock

Fabricante: BENDIX

Sea el primero en revisar este producto

Sku: 745-NT3030ELS80DS

Precio:

Cant.:

i h h

Specifications
Reviews
Contact Us

Especificaciones de productos

Basic Part Information
Product Line	Brakes
Category Name	Brake Chambers
Part Type	Spring Brake (S-Cam)
Alternate Part Name	Spring Brake (S-Cam), S-Cam 30/30 Double Chamber Spring Brake Chamber, 30/30 Brake Chamber
OEM Part Number	NT3030ELS-80DS
Application/Fitment Attributes
Application Type	Semi-Trailers, Buses, Trailers, Heavy Duty Trucks, Semi-Trucks
Chamber Style	Double Diaphragm
Chamber Type	T30/30
Mounting Stud Center-to-Center Spacing	4.75 in. (120.7 mm)
Mounting Stud Length	1.48 in. (37.5 mm)
Parking Port 12	3/8-18 NPTF
Port Angle	270 Deg.
Push Rod Length	8.00 in.
Service Chamber Joint Type	Double Clamp Band
Service Port 11	3/8-18 NPTF
Technical/Performance Attributes
Maximum Operating Temperature	175 °F (79 °C)
Minimum Operating Temperature	-40 °F (-40 °C)
Stroke Length	3.00 in. (76 mm)
Packaging & Logistics Attributes
Net Weight	19.10 lb.
Special Attributes
Cross References	3030054, 3230051, 5010414, 5010435, E-GC3030L, EGC3030L, FLT3030LB20, FLT3030LCB20, GC3030L, MA15473, NT3030ELS80DS, NT3030ELS80TC, NT3030ELS-80DS
Intended Application	Bendix® EnduraSure® T30/30 long-stroke (3.00) combination spring brake chamber with an 8.0 pre-cut stem for S-Cam cam-operated drum brake systems on drive and trailer axles of Class 7 and 8 commercial trucks. Designed for vehicles operating under high thermal demands, providing increased stroke reserve to prevent brake failure beyond CVSA limits. Compatible with S-Cam cam-operated drum brake systems on Meritor®, Dana Spicer®, Hendrickson®, and Eaton® axles; compatible with Bendix® Versajust®, Haldex®, and Gunite® automatic slack adjusters. It directly replaces T30/30 long stroke (3.00) cameras with an 8.0 stem from brands such as MGM® (1430051), Haldex® (GC3030L), Automann® (179SB3030LS) and VMRS code 013-004-027. Always compare with your OEM part number prior to purchase to confirm full compatibility.
