| Product Line | HVAC & Climate Control |
| Category Name | Heating & Cooling Components |
| Part Type | Air Conditioner |
| Alternate Part Name | 12V Split AC System 8000 BTU No Idle Needed, SP-25 Split AC Unit |
| Model | SP-25 |
| Application Type | Heavy Duty Trucks |
| Condenser Location | Rear Side |
| Condenser Mounting Position | Rear or Lateral Side |
| Evaporator Location | Lateral Side of the Cabin |
| Evaporator Mounting Position | Rear or Lateral Side |
| Color | Grey |
| Condenser Cover Material | 430 stainless steel |
| Condenser Dimensions | 21.26 x 20.07 x 7.48 in. |
| Evaporator Dimensions | 20.87 x 11.81 x 5.51 in. |
| Air Velocity | 3 |
| Airflow Rate | 560 m³/h |
| Battery Protection Feature | Yes |
| Compressor Oil Type | POE R68H |
| Compressor Type | Electric Scroll |
| Cooling Capacity | 8000 BTU; 2400 W; 2000 Frigories |
| Current Draw (Eco Mode) | 14–25 A |
| Current Draw (Engine Running) | 15–32 A |
| Eco/Parking Mode | Energy Economizer (A) |
| Fan Function | Yes |
| Intended Operating Mode | Shutdown or Running Engine |
| Mode Configuration | Max. cold/Eco Mode |
| Operating Voltage | 12 V |
| Power Consumption | Eco mode: 14-25 A – Running engine: 15-32 A |
| Recommended Cooling Area | 253 to 353 sq. Ft |
| Refrigerant Type | R134a |
| Remote Control Included | Yes |
| Regulatory Compliance | ISO 9001 |
| Package Length | 16 |
| Package Width | 12 |
| Package Height | 12 |
| Net Weight | 56 |
| Intended Application | - Compatible Vehicles: Specifically designed for sleeper cabs in cargo trucks, transport vans, and RVs
- Operational Use: Suitable for use as a primary AC system while driving or as a sleeper AC for up to 10 hours with the engine off
- Installation: Features a versatile split design for mounting on the rear or lateral sides of the vehicle cabin wall
|
| BOM | - Evaporator Unit: Internal cooling unit with three-speed fan and digital display.

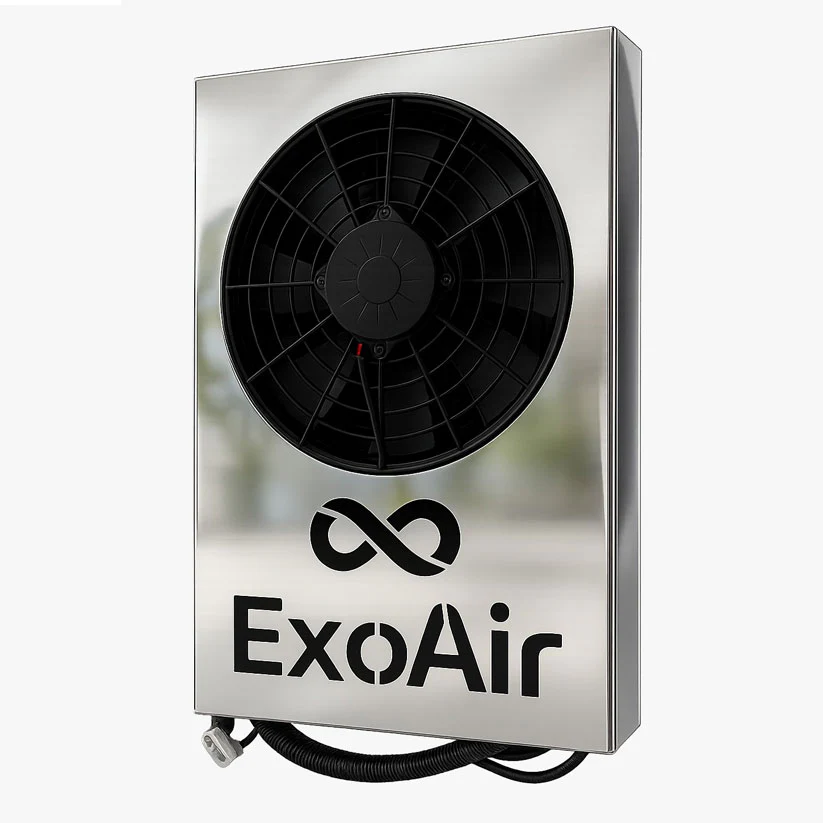

- Condensing Unit: External heat exchange unit containing the electric scroll compressor.
- Stainless Steel Covers: High-grade 430 protective plates for both units.
- Connection Hoses: Flexible refrigerant lines and a dedicated drain hose.
- Wiring Harness: Complete battery connection cables including positive (red) and negative (black) lines.
- Remote Control: Wireless controller for temperature, fan speed, and mode adjustments.
- Mounting Kit: Includes security plates, screws, and vibration-minimizing hardware.
- Refrigerant: 550 grams of R134a required for full system charge (typically added during installation).
|
