| Product Line | Exterior Parts |

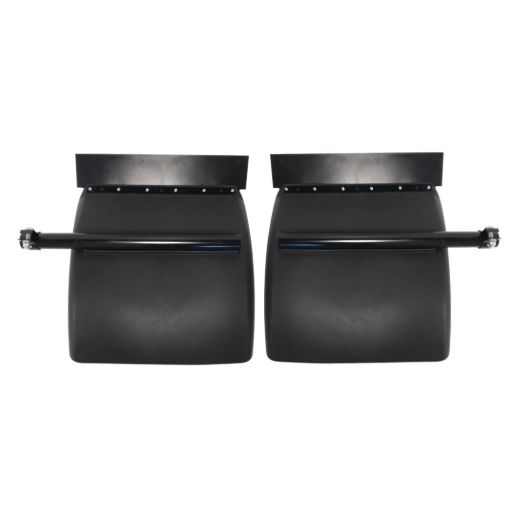

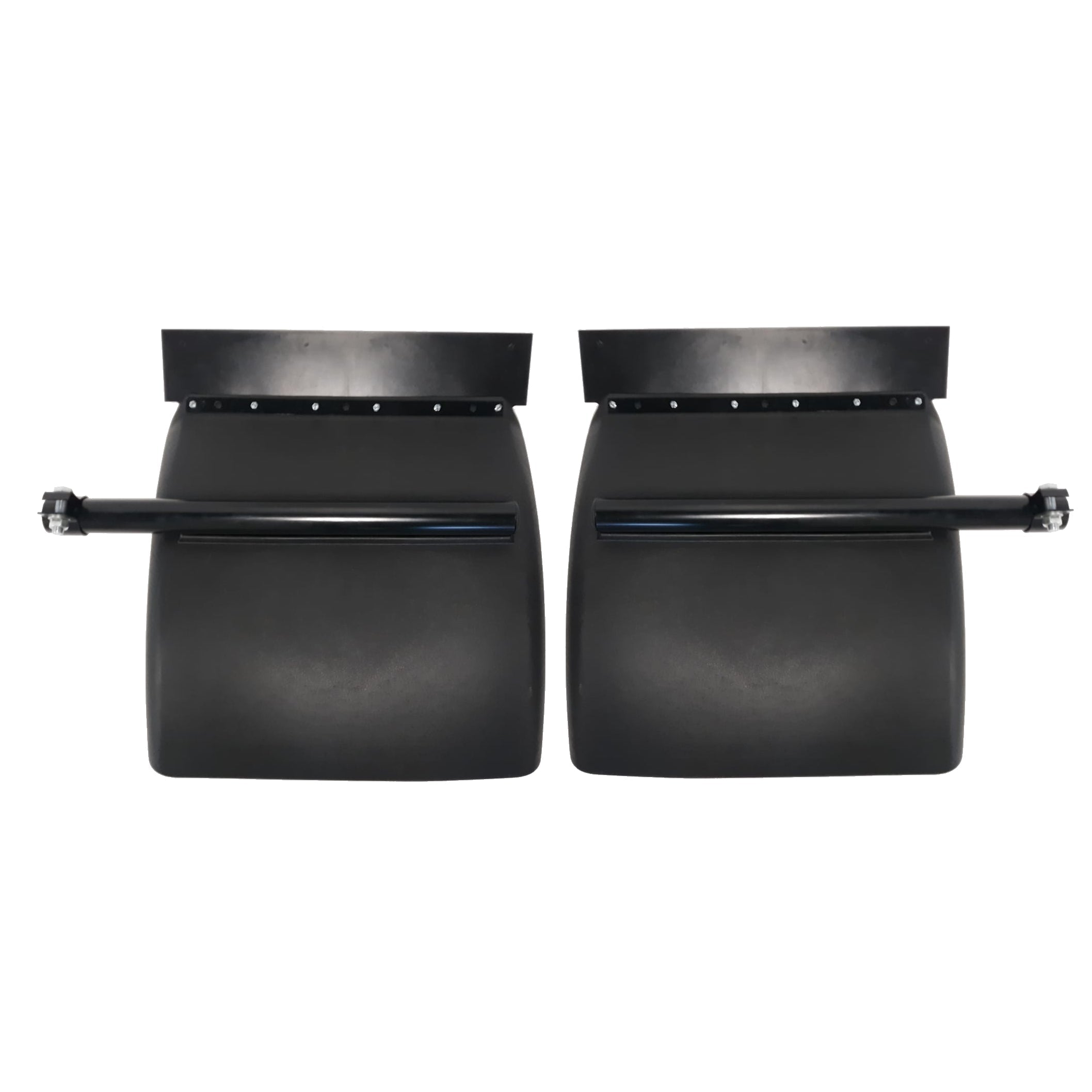

| Category Name | Quarter Fenders |
| Part Type | Quarter Fender Set |
| Alternate Part Name | Quarter Fender, Half Fender, Poly Fender, Plastic Quarter Fender, Semi Truck Fender, Rear Axle Fender |
| Application Type | Heavy Duty Trucks, Semi-Trucks |
| Mounting Type | Tubular system with direct fixing to the chassis |
| Material | High-Grade HDPE Plastic |
| Finish | Black Polyethylene |
| Height | 24 in. |
| Width | 24 in. |
| Net Weight | 22.49 lb. |
| Technical Notes | Allow at least 3-1/2 in. (4-1/2 in. preferred) between tire and fender at full suspension travel. Keep the top of the fender below the top of the fifth wheel. Check clamp and bolt tightness at every scheduled maintenance. Do not hang lights or mud flaps from the bottom of the fender. |
| Intended Application | - Compatible with Class 7 and 8 heavy-duty trucks (Freightliner, Kenworth, Peterbilt, Mack, Volvo) and commercial trailers. It installs over the rear axles to protect the chassis, components, and surrounding vehicles from debris, gravel, mud, and loose objects thrown up by the tires on the road.
- Always compare with your OEM part number prior to purchase to confirm full compatibility.
, For Class 7 and 8 trucks and tractors with dual rear wheels, including Freightliner, Kenworth, Peterbilt, International, Mack, Volvo and Western Star
Universal design; confirm the 24 in. fender width against your tires and the mounting point on your frame before ordering |
| BOM | - (2) Plastic Quarter Fenders
- (1) Mounting Support Tubes and Brackets Set
- (1) Hardware Kit
, (2) Black Poly Quarter Fenders
(2) Mounting Tubes with Clamps
(2) Support Brace Sets
(1) Hardware Kit |
