| Product Line | Brakes |
| Category Name | Brake Chambers |

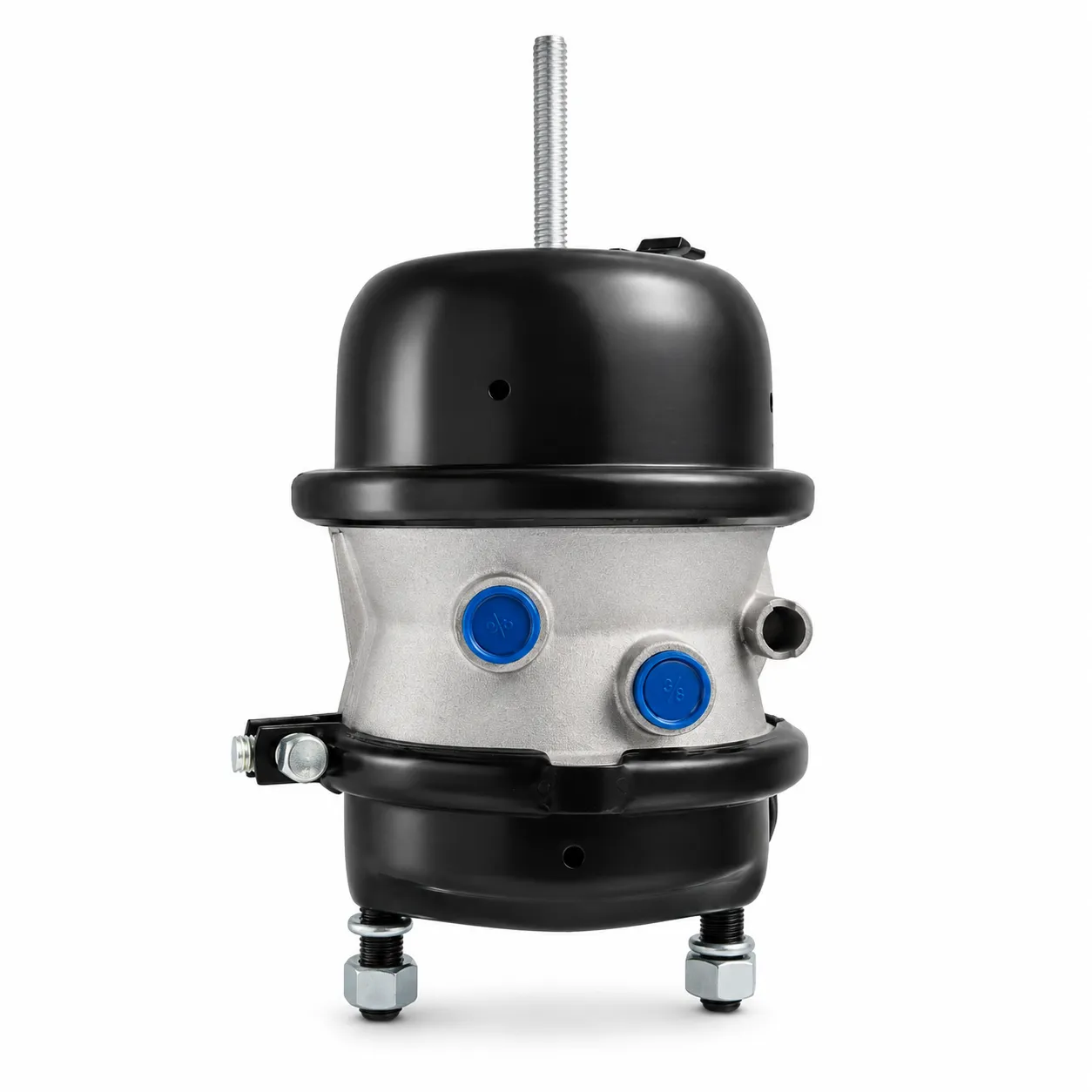

| Part Type | Air Disc Brake Chamber |
| Alternate Part Name | Air Disc Brake Chamber, Double Diaphragm Spring Brake, Air Disc Complete Brake Chamber, Spring Brake (Disc), Air Disc Brake Spring Brake Chamber |
| OEM Part Number | K041960 |
| Application Type | Semi-Trucks, Heavy Duty Trucks, Buses, Trailers, Semi-Trailers |
| Chamber Style | Double Diaphragm |
| Chamber Type | T20/24 |
| Clamp Angle | 90 Deg. |
| Mounting Stud Center-to-Center Spacing | 4.75 in. (120.7 mm) |
| Mounting Stud Length | 1.73 in. (43.9 mm) |
| Parking Chamber Sealed | No |
| Parking Port 12 | 3/8-18 NPTF |
| Port Angle | 270 Deg. |
| Push Rod Length | 15 mm |
| Service Chamber Joint Type | Single Clamp Band |
| Service Port 11 | 3/8-18 NPTF |
| Push Rod Style | Spherical End |
| Service Chamber Vent Hole Configuration | All Open |
| Maximum Operating Pressure | 10.0 bar |
| Maximum Operating Temperature | 176 deg. F (80 deg. C) |
| Minimum Operating Temperature | -40 deg. F (-40 deg. C) |
| Operation Type | Disc Brake |
| Stroke Length | 2.50 in. (63.5 mm) |
| Net Weight | 16.67 lb. |
