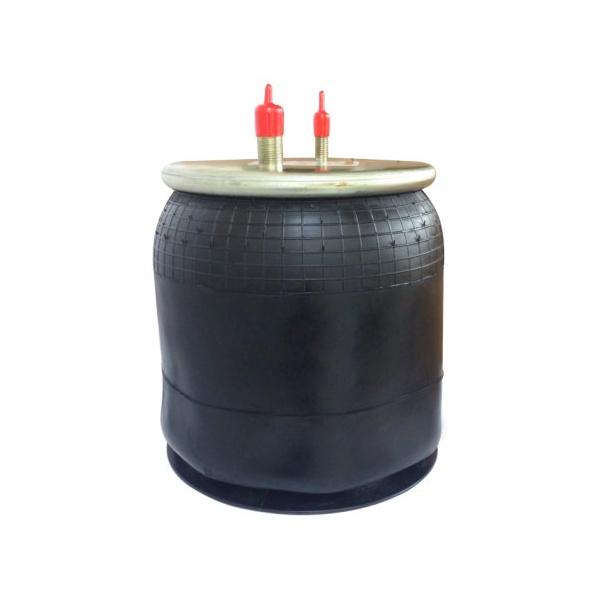

F9466 AIR SPRING

Name: F9466 AIR SPRING
Brand: FORTPRO
SKU: F245582
Availability: BackOrder

Manufacturer: FORTPRO

SKU: F245582

Price:

Qty:

i h h

Products specifications

Basic Part Information
Product Line	Suspension
Category Name	Air Springs and Bags
Part Type	Rolling Lobe Air Spring
Alternate Part Name	Suspension Air Bag, Air Bag Suspension, Reversible Sleeve Air Spring, Air Suspension Bag, Pneumatic Spring, Air Ride Spring, Rolling Lobe Air Spring
OEM Part Number	W01-358-9466
Application/Fitment Attributes
Application Type	Semi-Trucks, Heavy Duty Trucks
VMRS	016-008-000
Dimensional/Physical Attributes
Material	Fiber reinforced rubber bellows
Air Inlet Inside Thread	1/4-18 NPT
Air Inlet Outside Thread	3/4 16 UNF
Body Diameter	10.12 in.
Bottom Plate Alignment	90 deg.
Bottom Plate Diameter	10.00 in.
Bottom Plate Stud	1/2-13 UNC
Mounting Stud Configuration - Bottom	2
Mounting Stud Configuration - Top	2
Piston Height	4.88 in.
Piston Material Type	Composite
Top Plate Diameter	9.00 in.
Top Plate Stud	1/2-13 UNC
Technical/Performance Attributes
Air Spring Type	1T Reversible Sleeve
Collapsed Length	8.10 in.
Extended Length	20.00 in.
Packaging & Logistics Attributes
Net Weight	19.60 lb.
Special Attributes
Cross References	1R12173, 1R12197, 1R12365, 1R12902, 350034409, 3529466, 364QS28, 49048000, 49048002, 49048002L, 490482, 49674000, 49674001, 49674002, 566CT64276, 57QL411M, 91016P410, 9466, AB1DK23K9466, AB1DK23KP442, AS0140, AS9466, E9HZ5580A, FS9466, M3526, W013589466
Intended Application	Compatible with Ford (Aeromax, F650/F750) and Mack (CH, CX, GU series) Hendrickson HA/HA-360/400/460 (Rear Air Suspension)
