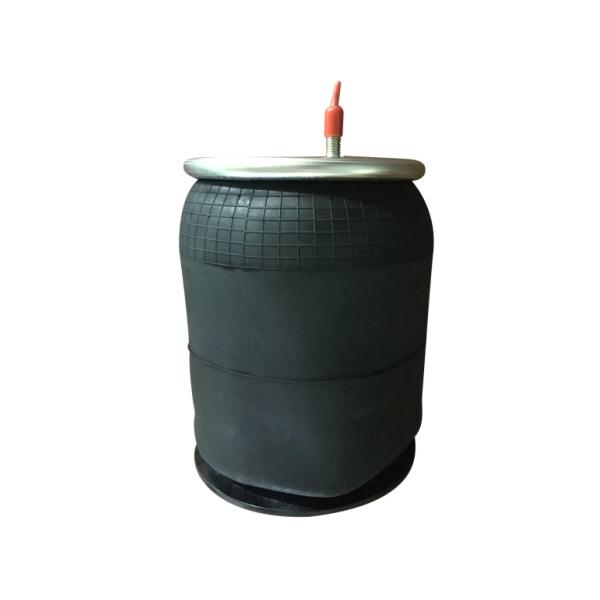

F9375, F9373 AIR SPRING, 50899-002L, 1R12-404, 57QL414M

Name: F9375, F9373 AIR SPRING, 50899-002L, 1R12-404, 57QL414M
Brand: FORTPRO
SKU: F245581
Availability: OutOfStock

Manufacturer: FORTPRO

SKU: F245581

Price:

Qty:

i h h

Products specifications

Basic Part Information
Product Line	Suspension
Category Name	Air Springs and Bags
Part Type	Rolling Lobe Air Spring
Alternate Part Name	Air Suspension Bag, Air Bag Suspension, Rolling Lobe Air Spring, Reversible Sleeve Air Spring, Air Ride Spring, Suspension Air Bag, Pneumatic Spring
OEM Part Number	W01-358-9375
Application/Fitment Attributes
Application Type	Heavy Duty Trucks, Semi-Trucks
VMRS	016-008-000
Dimensional/Physical Attributes
Material	Fiber reinforced rubber bellows
Air Inlet Inside Thread	1/4-18 NPT
Body Diameter	10.12 in.
Bottom Plate Alignment	Parallel
Bottom Plate Diameter	10.00 in.
Bottom Plate Stud	1/2-13 UNC
Mounting Stud Configuration - Bottom	1
Mounting Stud Configuration - Top	2
Piston Height	4.85 in.
Piston Material Type	Composite
Top Plate Diameter	9.00 in.
Top Plate Stud	1/2-13 UNC
Technical/Performance Attributes
Air Spring Type	1T Reversible Sleeve
Collapsed Length	8.10 in.
Extended Length	22.00 in.
Packaging & Logistics Attributes
Net Weight	16.40 lb.
Special Attributes
Cross References	1R121076, 1R12404, 1R12488, 1S12030, 1S12031, 3529375, 364QS27, 50899001, 50899002, 50899002L, 566CT68616, 57QL414M, 68616, 910175P451, 910185P451(BK), 9375, AB1DK23M9375, AS9375, EAS9375, FS9375, MAF9375, W013589375, 910185P451
Intended Application	Compatible with Mack (CH612, CH613, MR688S, MR688P) Hendrickson (Rear Air Suspension System).
