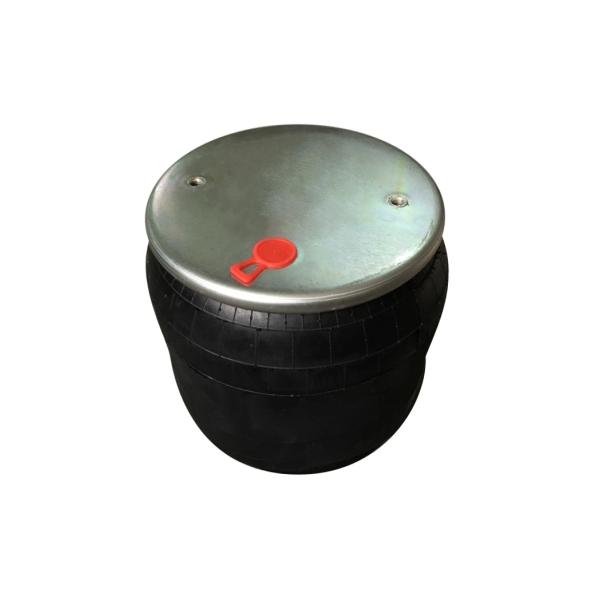

    F9069 AIR SPRING

    Manufacturer: FORTPRO
    SKU: F245587
    Price:
    i h h
    Products specifications
    Basic Part Information
    Product LineSuspension
    Category NameAir Springs and Bags
    Part TypeRolling Lobe Air Spring
    Alternate Part NameRolling Lobe Air Spring, Reversible Sleeve Air Spring, Air Suspension Bag, Suspension Air Bag, Pneumatic Spring, Air Ride Spring, Air Bag Suspension
    OEM Part NumberW01-358-9069
    Application/Fitment Attributes
    Application TypeHeavy Duty Trucks, Semi-Trucks
    VMRS016-008-000
    Dimensional/Physical Attributes
    MaterialFiber reinforced rubber bellows
    Air Inlet Inside Thread1/2 NPT
    Body Diameter10.12 in.
    Bottom Plate AlignmentParallel
    Bottom Plate Diameter9.50 in.
    Bottom Plate Stud1/2-13 UNC
    Mounting Stud Configuration - Bottom1
    Mounting Stud Configuration - Top2
    Piston Height4.75 in.
    Piston Material TypeAluminum
    Top Plate Diameter9.00 in.
    Top Plate Stud3/8-16 UNC
    Technical/Performance Attributes
    Air Spring Type1T Reversible Sleeve
    Collapsed Length7.50 in.
    Extended Length18.00 in.
    Packaging & Logistics Attributes
    Net Weight15.80 lb.
    Special Attributes
    Cross References0301649, 0302038, 0302456, 0304759, 0307112, 1003589069C, 1R12069, 1R12669, 1R12676, 1T15M4, 301649, 302038, 302456, 304759, 3057000709, 306746, 307112, 310042, 3130497, 3529069, 554764C1, 566CT64274, 566ER9069, 64274, 9069, 91014P312, AB1DK23I9069, AB1DK23IA312, AS0077, AS9069, CS112069, FAS-0685, FAS0685, GY1R12069, M3512, S13031, W013589069, FS9069, MAF9069, W01-358-9069
    Intended Application
    • Peterbilt Heavy-Duty Vehicles with Air Trac Suspension
    *
    *
    *
