| Product Line | Brakes |
| Category Name | Air Brake Valves |

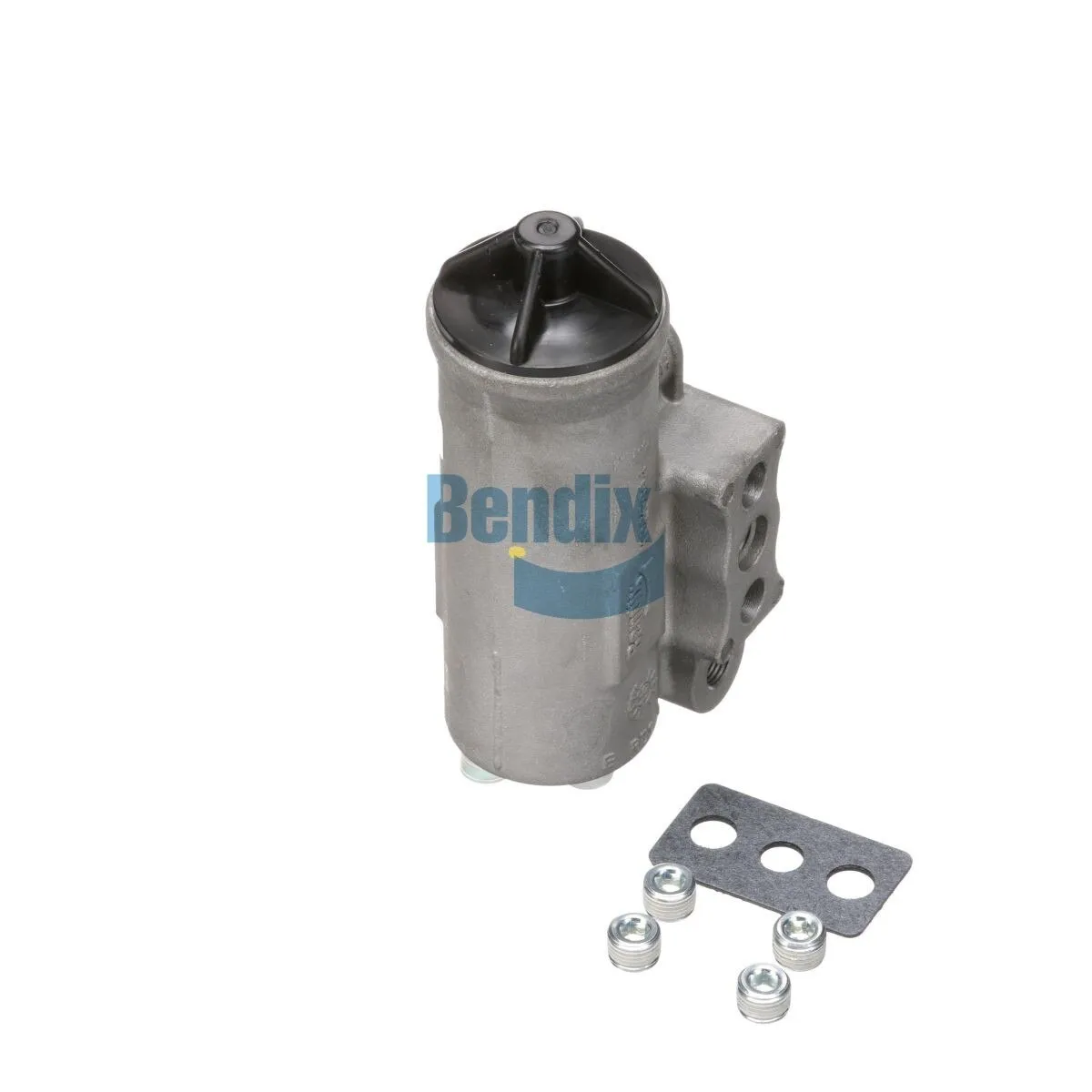

| Part Type | Governor Valve |
| Alternate Part Name | Governor Valve, Air Dryer Governor Valve, Air Brake Compressor Governor |
| Application Type | Semi-Trucks, Heavy Duty Trucks |
| Exhaust Port | 1/8-27 NPT |
| Governor Reservoir Port Size | 1/8-27 NPT |
| Governor Reservoir Port Qty | 3 |
| Governor Unloader Port Size | 1/8-27 NPT |
| Governor Unloader Port Qty | 3 |
| Mounting Hole Qty | 2 |
| Mounting Hole Size | 0.338 in. |
| Length | 4.96 in. |
| Adjustable | Yes |
| Cut-in Pressure | 100 psi |
| Cut-out Pressure | 120 psi |
| Maximum Operating Temperature | 200 Deg. F (93 Deg. C) |
| Minimum Operating Temperature | -40 deg. F (-40 deg. C) |
| Weather Resistant | No |
| Package Length | 6 in. |
| Package Width | 4 in. |
| Package Height | 3 in. |
| Net Weight | 1.14 lb. |
| Cross References | 1654936C91, 275491, 275491N, 275491X, 4753150000, 6300-4753150000, 63004753150000, 8235-R955275491, 8235R955275491, EM36450, KN18530, KN18530RX, KN18530X, LGV-3645, LGV3645, OR275491X, S4753150000, WAB4753150000 |
| Intended Application | - Compatible with pneumatic brake and air supply systems in heavy-duty commercial vehicles equipped with compatible air compressors. It is installed either by direct mounting to the compressor (using the appropriate gasket) or remotely on the chassis to automatically control system pressure. Its primary function is to regulate air pressure between maximum (cut-out) and minimum (cut-in) values by acting on the compressor's discharge mechanism.
- Always compare with your OEM part number prior to purchase to confirm full compatibility.
|
