| Product Line | Brakes |
| Category Name | Air Brake Valves |

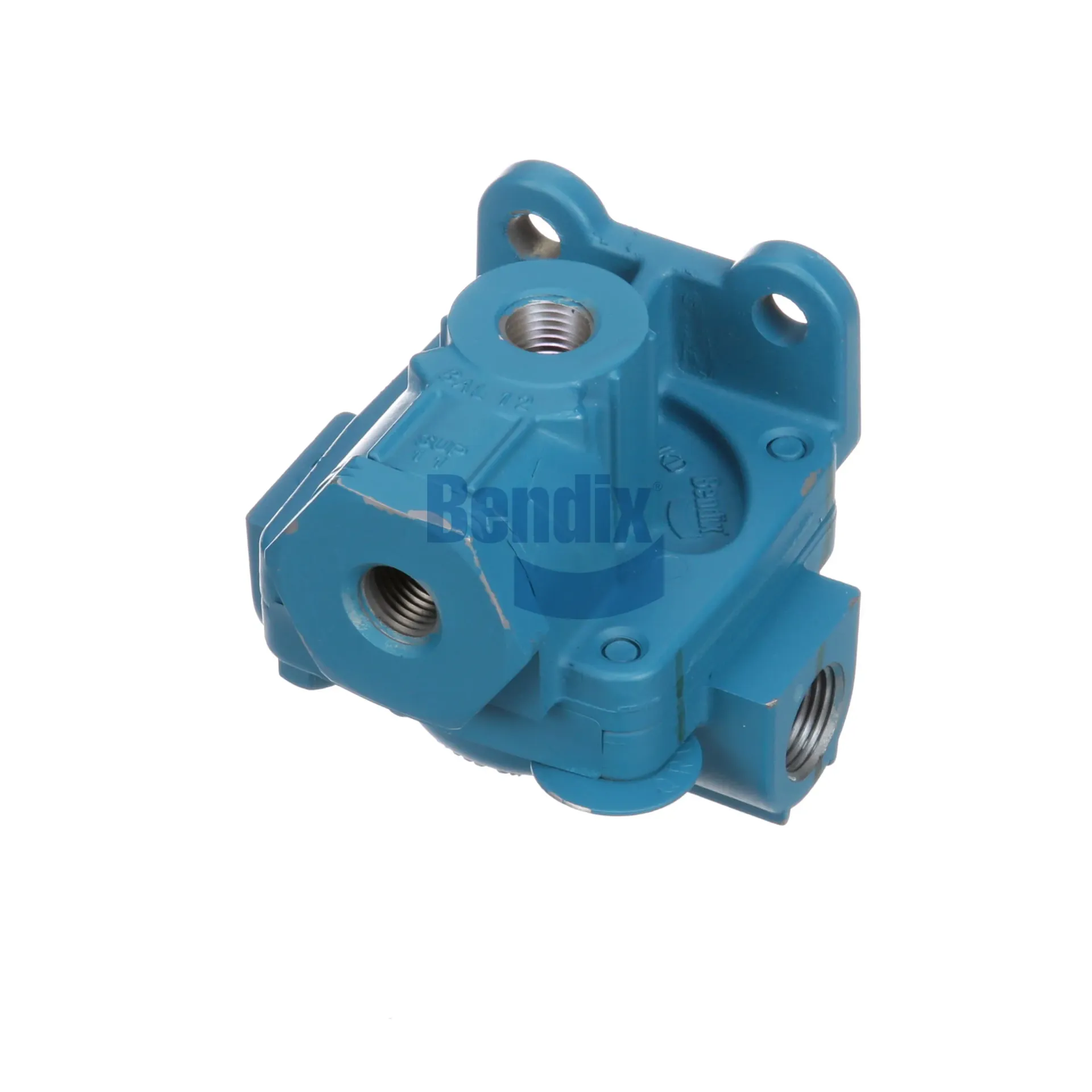

| Part Type | Double Check and Quick Release Valve |
| Alternate Part Name | Check Valve/Quick Release, Quick Release Valve with Double Check Valve, Bendix® QR-1C® Double Check Quick Release Valve |
| Model | QR-1C |
| OEM Part Number | OR289714X |
| Application Type | Semi-Trucks, Heavy Duty Trucks |
| Delivery Port Qty | 2 |
| Delivery Port Size | 3/8-18 NPT (Female) |
| Exhaust Port | Open |
| Mounting Hole Qty | 2 |
| Mounting Hole Size | Ø .34 in. |
| Supply Port Size | 1/4-18 NPT Female |
| TMC Washer | QR000 |
| Material | Die-cast Aluminum |
| Differential Pressure | 0 psi |
| Maximum Operating Temperature | 200 °F (93 °C) |
| Minimum Operating Temperature | -50 °F (-45 °C) |
| Sustained Hold | No |
| Zero Hysteresis | Yes |
| Package Length | 6.00 in. |
| Package Width | 4.00 in. |
| Package Height | 3.00 in. |
| Net Weight | 1.12 lb. |
| Cross References | 170289714, 289714, 289714N, 289714RX, 289714X, 289915X, AV289714, BH289714, EBN289714N, EM36260, LQV-3626, LQV3626, OR289714, OR289714X, R955289714X, RKN32011 |
| Intended Application | - Compatible With: Spring brake actuators on drive and trailer axles; integrated with foot brake valve delivery lines or relay valves (Balance Port), dash parking control valves (Supply Port) and standard, zero-hysteresis Bendix® QR-1C® configurations with foam mufflers or biased beaded seats, as well as Aftermarket Haldex®, Wabco® and Meritor® equivalents under standard VMRS 013-010-008.
- Always compare with your OEM part number prior to purchase to confirm full compatibility.
|
| Foam Insert Included | No |
