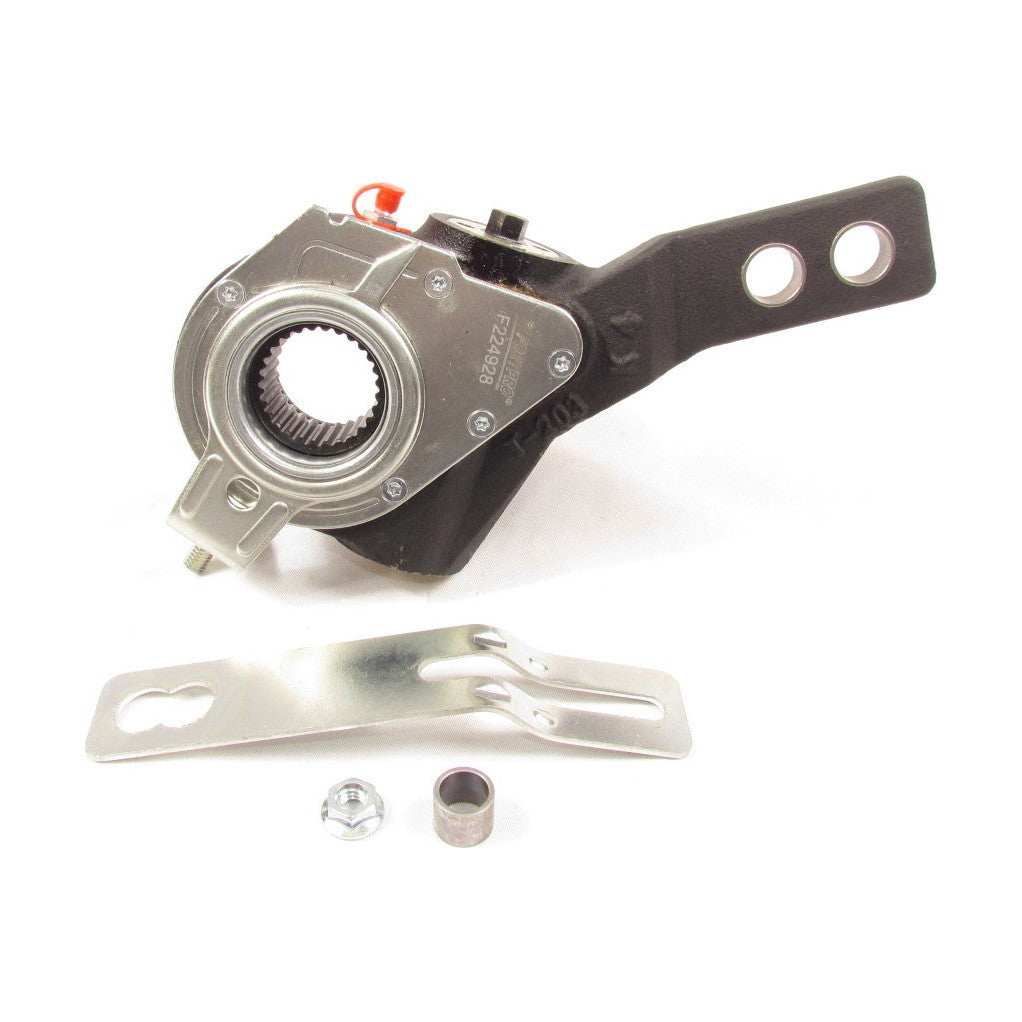

| Product Line | Brakes |
| Category Name | Slack Adjusters |
| Part Type | Automatic Slack Adjusters |
| Model | Haldex Style / AA1 |
| OEM Part Number | 40010141 |
| Anchor Bracket Type | Strap |
| Application Type | Heavy Duty Trucks, Semi-Trucks |
| Compatible Brake Chamber Sizes | T-30 Std or T-16/T-24 Long Stroke |
| Clevis Type | Unclevised |
| Material | Alloy Steel |
| Arm Bushing Inside Diameter | 5/8 in. |
| Arm Length Position 1 | 6-1/2 in. |
| Arm Length Position 2 | 5-1/2 in. |
| Arm Offset | No Offset |
| Body Inclination Angle | (-34 deg.) |
| Slack Spline Count | 28 |
| Slack Spline Diameter | 1-1/2 in. |
| Grease Fitting Location | 180 deg. |
| Maximum Operating Temperature | 158 deg. F (70 deg. C) |
| Maximum Torque | 23.000 In./Lbs. |
| Minimum Operating Temperature | (-40 deg. F) (-40 deg. C) |
| Operation Type | Tension Adjuster - Torque |
| Cross References | 10211718, 135S2835, 289314-15, 28931415, 400-10141, 40010141, 5663, E-6927B, E6927B, MK42100S, R806026A |
