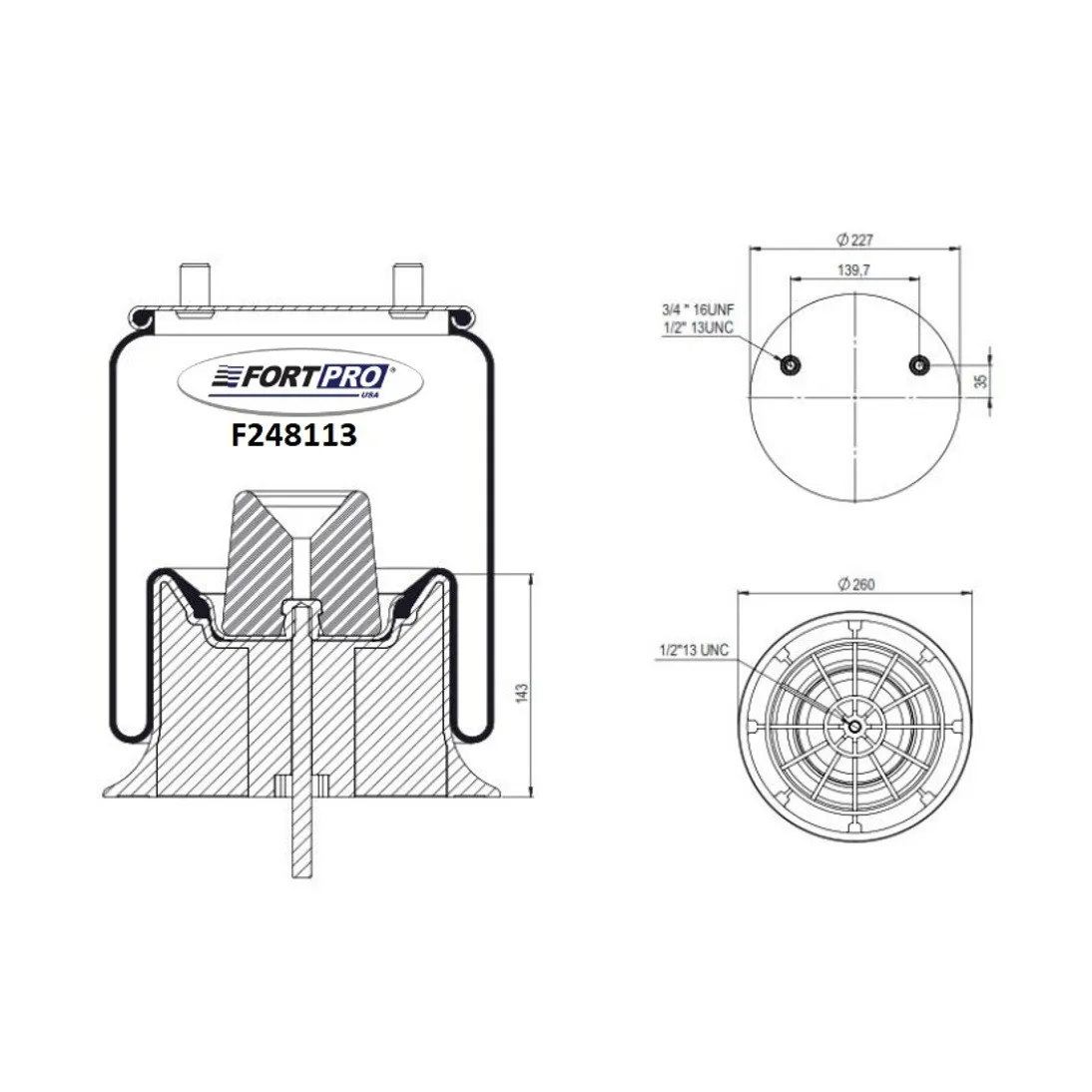

| Product Line | Suspension |
| Category Name | Air Springs and Bags |
| Part Type | Rolling Lobe Air Spring |
| Alternate Part Name | Air Suspension Bag, Trailer Air Spring Bag, Rolling Lobe Air Spring, Reversible Sleeve Air Spring, Pneumatic Spring, Air Ride Spring, Air Bag Suspension, Suspension Air Bag |
| OEM Part Number | S-38000 |
| Application Type | Semi-Trucks, Heavy Duty Trucks |
| VMRS | 016-008-000 |
| Material | Fiber reinforced rubber bellows |
| Air Inlet Inside Thread | 1/4-18 NPT |
| Air Inlet Outside Thread | 3/4-16 UNF |
| Body Diameter | 12.50 in. |
| Bottom Plate Alignment | Parallel |
| Bottom Plate Diameter | 10.28 in. |
| Bottom Plate Stud | 1/2-13 UNC |
| Mounting Stud Configuration - Bottom | 1 |
| Mounting Stud Configuration - Top | 2 |
| Piston Height | 5.50 in. |
| Piston Material Type | Composite |
| Top Plate Diameter | 8.90 in. |
| Top Plate Stud | 3/4-16 UNF |
| Air Spring Type | Rolling Lobe |
| Collapsed Length | 6.10 in. |
| Extended Length | 19.80 in. |
| Net Weight | 14.62 lb. |
| Cross References | S38000, HTS38000, HTS-38000, 23-38000, 2338000, 356-S38000, 356S38000, ABH38000, C-38000, C38000, HTS-38000, HTS38000, S-38000, S38000, TR38000 |
| Intended Application | - Compatible with Hendrickson VANTRAAX and INTRAAX trailer and tractor suspensions equipped with ZMD (Zero Maintenance Damping) technology as a direct replacement for the Hendrickson S-38000 part. This integrated air spring eliminates the need for conventional shock absorbers, absorbing ground impacts and maintaining a level chassis height under extreme load conditions.
- Always compare with your OEM part number prior to purchase to confirm full compatibility.
|
