| Product Line | Suspension |
| Category Name | Air Springs and Bags |
| Part Type | Triple Convoluted Air Spring |
| Alternate Part Name | Triple Convoluted Air Bag, Triple Convoluted Air Spring, Triple Bellows Air Bag, Triple Bellows Air Spring, Triple Convolute Air Suspension Bag, Triple Convolute Suspension Air Spring, Triple Convoluted Rubber Bellow, Triple Convoluted Load Cushion |
| OEM Part Number | W01-358-8032 |
| Application Type | Heavy Duty Trucks, Semi-Trucks |
| VMRS Code | 016-008-000 |
| Material | Fiber reinforced rubber bellows |
| Body Diameter | 11.70 in. |
| Bottom Mounting Stud Size | 3/8-16 NPT |
| Bottom Plate Alignment | 90 deg. |
| Bottom Plate C To C Diameter | 6.20 in. |
| Bottom Plate Diameter | 9.00 in. |
| Bottom Plate Hole Size | 1/2-13 NPT |
| Bottom Plate Tapped Hole Qty | 2 |
| Top Plate Air Inlet | 1/4 NPTF |
| Top Plate Air Inlet Stud | 3/4-16 NPT |
| Top Plate C To C Diameter | 5.50 in. |
| Top Plate Diameter | 9.00 in. |
| Top Plate Stud Qty | 2 |
| Top Plate Stud Thread Size | 3/8-16 UNC |

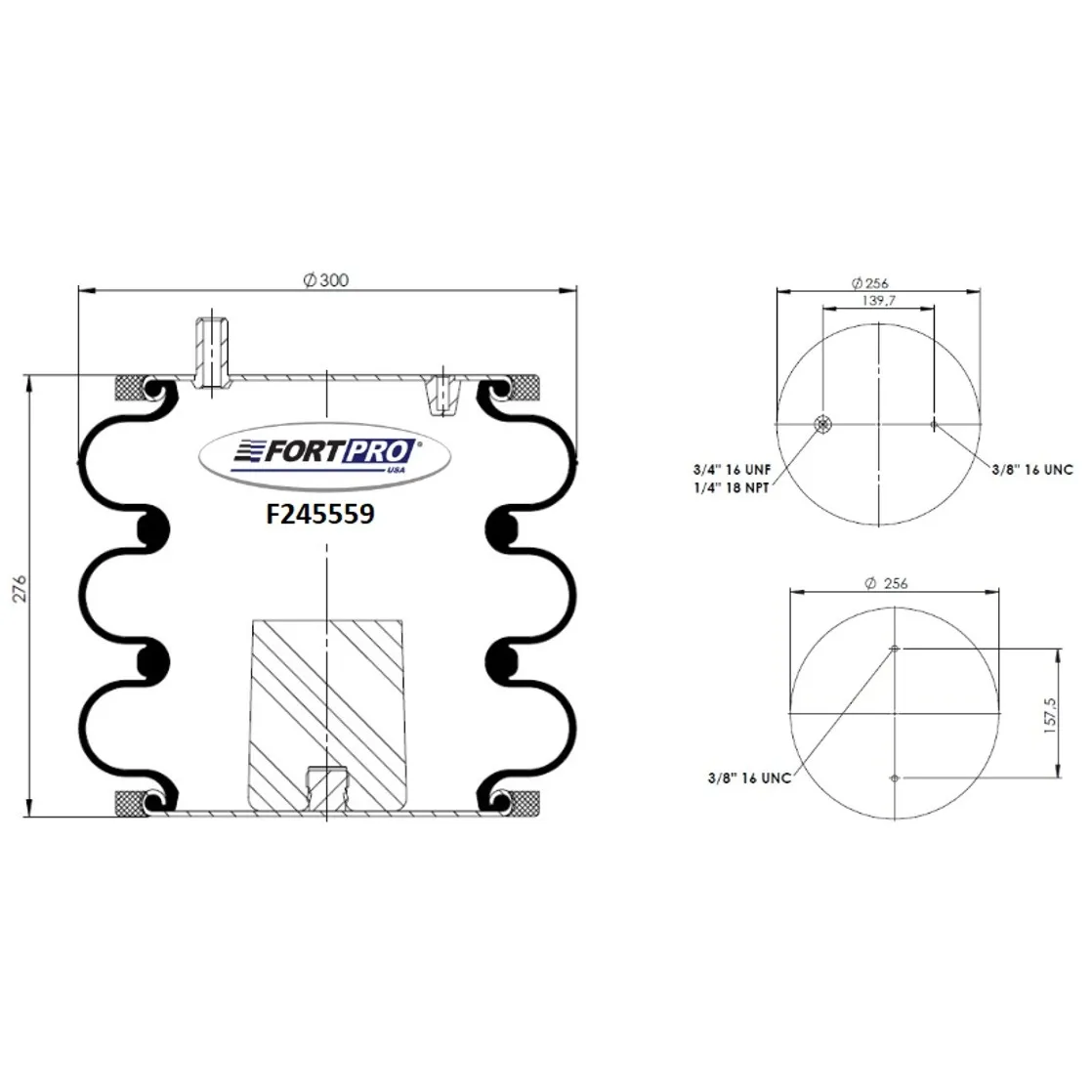

| Air Spring Type | Triple Convoluted |
| Collapsed Length | 4.55 in. |
| Extended Length | 18.00 in. |
| Net Weight | 17.61 lb. |
| Cross References | 1003588032C, 3548032, 3B12315, 3B12319, 4413, 566CT64560, 57008032, 64560, 8032, 804332, ABSP3B22R8032, AS0048, AS8032, FS8032, FT33029413, S12405, W013588032, W01-358-8032 |
