| Product Line | Engine |
| Category Name | Fan Clutches & Valves, Fan Blades |

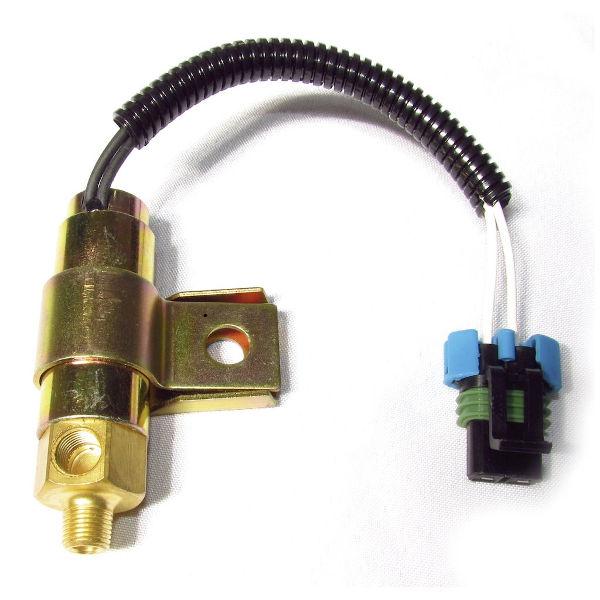

| Part Type | Air Solenoid Valve |
| Alternate Part Name | Air Valve Solenioid, Fan Clutch High Temperature Solenoid Valve, Fan Clutch Air Solenoid Valve, Air Solenoid Valve |
| OEM Part Number | A06-26631-000 |
| Application Type | Heavy Duty Trucks, Semi-Trucks |
| Delivery Port Size | 1/8in NPTF Male |
| Mounting Hole Size | 0.406 in. |
| Supply Port Size | 1/8 in. NPT (Female) |
| Across the Flats (AF) | 0.813 in. |
| Electrical Connector Type | 2 Pin |
| Normally Open | Yes |
| Operating Voltage | 12 V |
| Valve Design Configuration | Operating Voltage |
| Package Length | 7 in. |
| Package Width | 3 in. |
| Package Height | 3 in. |
| Net Weight | 0.62 lb. |
| Cross References | 740420, A06-26631-000, A0626631000, 740420, 740420E, A06-26631-000, A0626631000 |
| Intended Application | - Compatible with the pneumatic fan clutch management system and auxiliary engine components in Freightliner heavy-duty trucks (Century, Columbia CL-120, Cascadia, Coronado, Classic Series, and M2). It integrates into the compressed air circuit to control fan clutch modulation via electrical signals transmitted by the engine control module (ECM).
- Always compare with your OEM part number prior to purchase to confirm full compatibility.
|
