| Product Line | Brakes |
| Category Name | Air Brake NTA Fittings |

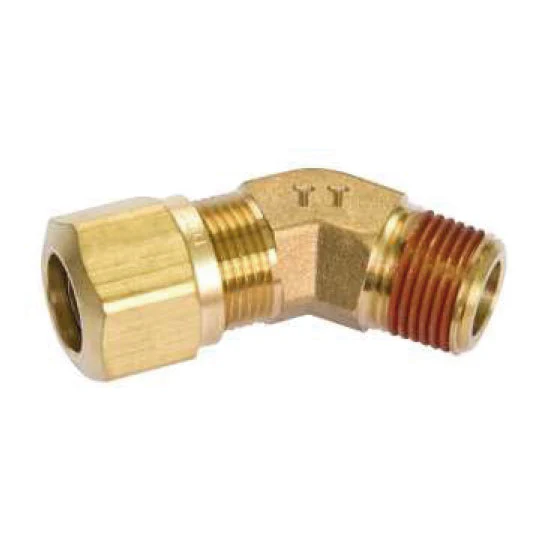

| Part Type | NTA Male Elbow Connector |
| Alternate Part Name | D.O.T. Air Brake Compression NTA Elbow Connector |
| OEM Part Number | 1374-8D |
| Application Type | Trailers, Semi-Trucks, Heavy Duty Trucks |
| VMRS Code | 013-010-297 |
| Material | Brass |
| Connection Type | Male Thread - Compression Fitting |
| Connector Shape | Elbow |
| Fitting Angle | 45 deg. |
| Pipe Thread Size | 1/2 in. |
| Tube Outside Diameter | 1/2 in. |
| Maximum Operating Pressure | 158psi |
| Net Weight | 0.2327 lb. |
| Cross References | 017888, 1374-8D, 13748D, 177.14748D, 17714748D, 38155, M-4371, M4371, S779AB-8-8, S779AB88 |
| Intended Application | For use in connecting main or secondary air lines in the air brake system on semi-trailers, trailers, buses and agricultural machinery. |
