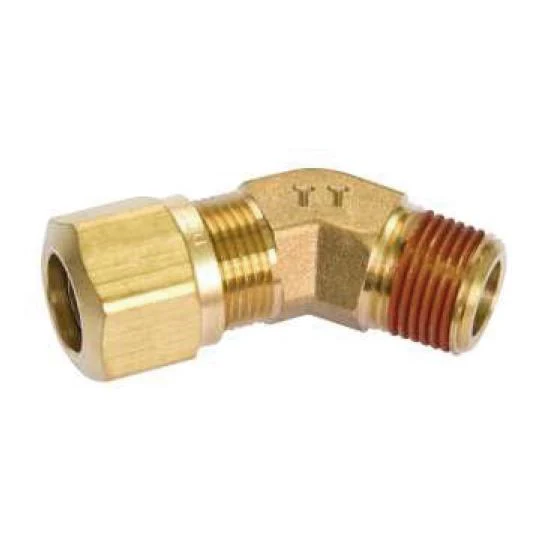

38151 3/8 X 1/4 NAB X MIP 45 ELBOW

Name: 38151 3/8 X 1/4 NAB X MIP 45 ELBOW
SKU: F229069
Availability: OutOfStock

Sku: F229069

Precio:

Cant.:

i h h

SalesUnit : 10Pkg

Especificaciones de productos

Basic Part Information
Product Line	Brakes
Category Name	Air Brake NTA Fittings
Part Type	NTA Male Elbow Connector
Alternate Part Name	D.O.T. Air Brake Compression NTA Elbow Connector
OEM Part Number	1374-6B
Application/Fitment Attributes
Application Type	Heavy Duty Trucks, Semi-Trucks, Trailers
VMRS Code	013-010-297
Dimensional/Physical Attributes
Material	Brass
Connection Type	Male Thread - Compression Fitting
Connector Shape	Elbow
Fitting Angle	45 deg.
Pipe Thread Size	1/4 in.
Tube Outside Diameter	3/8 in.
Technical/Performance Attributes
Maximum Operating Pressure	153 psi
Packaging & Logistics Attributes
Net Weight	0.0977 lb.
Special Attributes
Cross References	017864, 1374-6B, 13746B, 177.14746B, 17714746B, 38151, M-5033, M5033, S779AB-6-4, S779AB64, 17864
Intended Application	For use in connecting main or secondary air lines in the air brake system on semi-trailers, trailers, buses and agricultural machinery.
