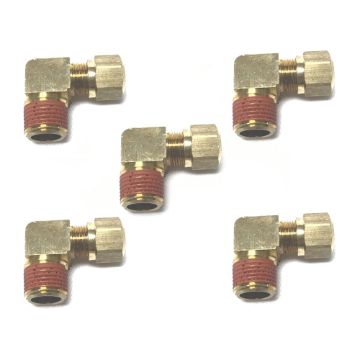

38107 5/8 X 1/2 NAB X MIP ELBOW

Name: 38107 5/8 X 1/2 NAB X MIP ELBOW
SKU: F229047
Availability: OutOfStock

SKU: F229047

Price:

Qty:

i h h

SalesUnit : 5Pkg

Products specifications

Basic Part Information
Product Line	Brakes
Category Name	Air Brake NTA Fittings
Part Type	NTA Male Elbow Connector
Alternate Part Name	D.O.T. Air Brake Compression Male Elbow Connector
OEM Part Number	1369-10D
Application/Fitment Attributes
Application Type	Trailers, Semi-Trucks, Heavy Duty Trucks
VMRS Code	013-010-298
Dimensional/Physical Attributes
Material	Brass
Connection Type	Male Thread - Compression Fitting
Connector Shape	Elbow
Fitting Angle	90 deg.
Pipe Thread Size	1/2 in.
Tube Outside Diameter	5/8 in.
Technical/Performance Attributes
Maximum Operating Pressure	150 psi
Packaging & Logistics Attributes
Net Weight	0.2889 lb.
Special Attributes
Cross References	016908, 11268, 12-8411, 128411, 1369-10D, 136910D, 221824, 38107, S769AB-10-8, S769AB108, ZZ11268
Intended Application	For use in connecting main or secondary air lines in the air brake system on semi-trailers, trailers, buses and agricultural machinery.
