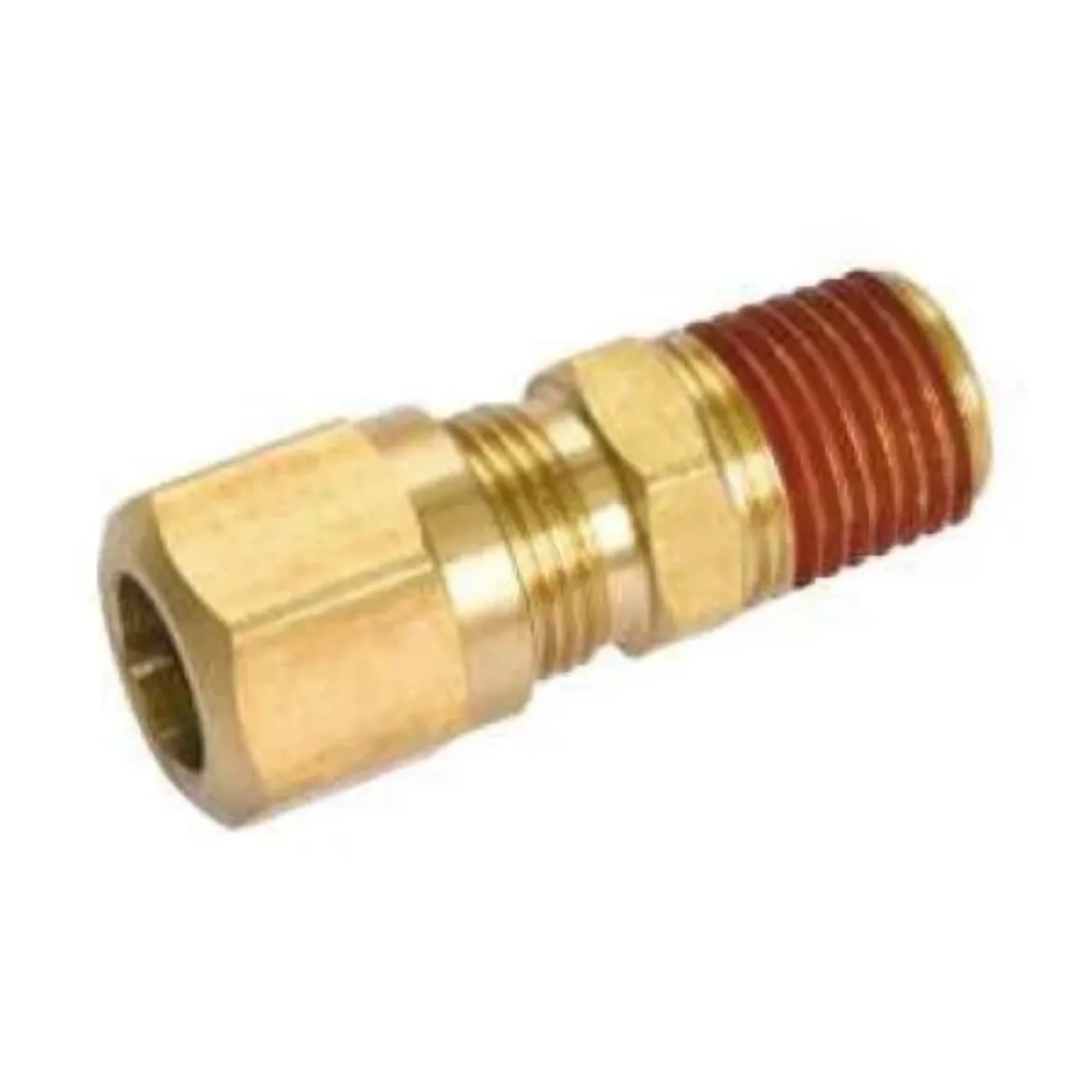

38077 3/8 X 1/4 NAB X MIP ADAPTER

Name: 38077 3/8 X 1/4 NAB X MIP ADAPTER
SKU: F229030
Availability: OutOfStock

Sku: F229030

Precio:

Cant.:

i h h

SalesUnit : 10Pkg

Especificaciones de productos

Basic Part Information
Product Line	Brakes
Category Name	Air Brake NTA Fittings
Part Type	NTA Male Connector
OEM Part Number	1368-6B
Application/Fitment Attributes
Application Type	Heavy Duty Trucks, Semi-Trucks, Trailers, Trailers
VMRS Code	013-010-295
Dimensional/Physical Attributes
Material	Brass
Connection Type	Male Thread - Compression Fitting
Connector Shape	Straight
Fitting Angle	0 deg.
Pipe Thread Size	1/4 in.
Tube Outside Diameter	3/8 in.
Technical/Performance Attributes
Maximum Operating Pressure	150 psi
Packaging & Logistics Attributes
Net Weight	0.0774 lb.
Special Attributes
Cross References	11232, 12-8307, 128307, 1368-6B, 13686B, 16864, 38077
Intended Application	For use in connecting main or secondary air lines in the air brake system on semi-trailers, trailers, buses and agricultural machinery.
