| Product Line | Suspension |
| Category Name | Chassis & Suspension |

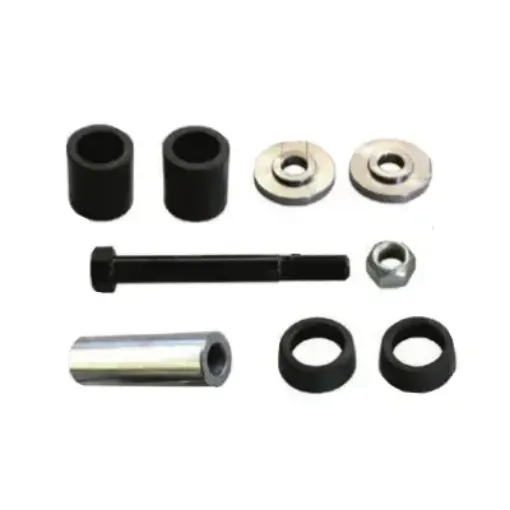

| Part Type | Beam End Rebushing Kit |
| Alternate Part Name | Rebush Kit, Spring Eye Bushing Kit, Beam End Rebushing Kit, Bushing Kit |
| OEM Part Number | 03AL1 |
| Application Type | Heavy Duty Trucks, Semi-Trucks |
| Mounting Bolt Thread Size | 1-14 UNF |
| Mounting Hole Size | 1-3/4 in. |
| Mounting Position | Rear Suspension |
| Material | Vulcanized Rubber, Carbon Steel. |
| Bushing Length | 2-3/4 in. |
| Bushing Outside Diameter (O.D.) | 2-1/2 in. |
| Net Weight | 7.71 lb. |
| Cross References | 03AL1, E-4773, E4773, GAFF12361, R304773, TRK5905 |
| Intended Application | - Compatible with Peterbilt Rear Air Suspension Single/Tandem Axle Low Mount Air Leaf Series Trucks.
- Always compare with your OEM part number prior to purchase to confirm full compatibility.
|
| BOM | - Spring Hanger Spacer Washer pcs x 2
- Spring Hanger Washer pcs x 2
- Spring Eye Bushing pcs x 2
- Bolt pcs x 1
- Nut 1-14 UNF x A/F 1-1/2 pcs x 1
- Sleeve 1-3/4 OD, 1 in. ID x 5-3/4 LG pcs x 1
|
