| Product Line | Suspension |
| Category Name | Chassis & Suspension |
| Part Type | Beam end Rebushing Kit |
| Alternate Part Name | Beam end Rebushing Kit, Tri-Functional Bushing Kit, Bushing Pivot Kit, Beam End Bushing Kit |
| OEM Part Number | S-24691 |
| Application Type | Semi-Trucks, Heavy Duty Trucks |
| Mounting Bolt Thread Size | 7/8-9 UNC |
| Mounting Hole Size | 1-1/4 in. |
| Mounting Position | Rear Suspension |
| Material | Vulcanized Rubber, Carbon Steel. |
| Bushing Length | 6-3/4 in. |
| Bushing Outside Diameter (O.D.) | 6 in. |
| Package Length | 7.00 in. |
| Package Width | 12.00 in. |
| Package Height | 7.00 in. |
| Net Weight | 13.06 lb. |
| Cross References | 3341576, 3341812, 3341936, 755131, E-10729, E-10729A, E10729, E10729A, GAFF13744, MAK 8446-S24691, MAK 8446S24691, MHS736, R3010729A, S-24112, S24112, S24681, S24691, SH2006, TRB5912K, S-24681 |
| Intended Application | - Compatible with a wide range of Hendrickson suspension systems used in heavy-duty applications, including the HLM/1/2, HKANT 40/46/50K, HKA 180–200–250, AANL 23K, AAEDL 30K, and AA 230/250/300L lines, as well as the HT families and INTRAAX air suspension platforms (AAL, AANL, AANLS, AAEDL, HKAL, HKARL, and HKANL series), in addition to the AAT, AANT, and AAEDT assemblies. It is also suitable for VANTRAAX air suspensions (HKA, HKANT, and HKAT series) and the HK/HS 190/230 systems.
- Always compare with your OEM part number prior to purchase to confirm full compatibility.
|

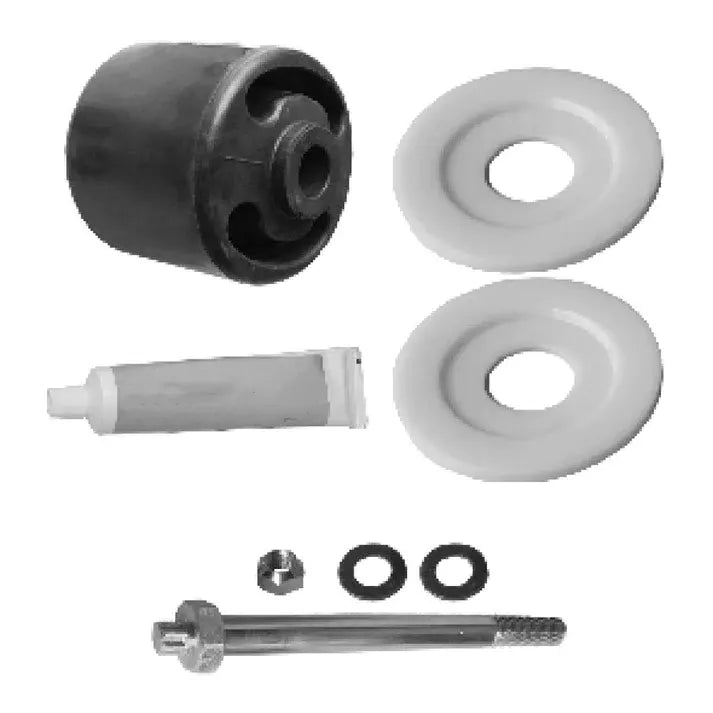

| BOM | - Wear Pad pcs x 2
- Pivot bush pcs x 1
- Hardened Washer pcs x 2
- Pivot bolt pcs x 1
- Locknut pcs x 1
- Grease 100 grams EP2 pcs x 1
|
